2018 Best Selling Rotary Finger Wheel Hay Rake
2018 Best Selling Rotary Finger Wheel Hay Rake
FOB Price:
US $600.000 / Pieces
Min.Order:
0 Pieces/Pieces
Supply Ability:
6000 Pieces/Pieces per Month
Port:
qingdaogang
Your Email:
Quantity:
Pieces
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
zhiyan
Model Number:
WHR-500
Product Description

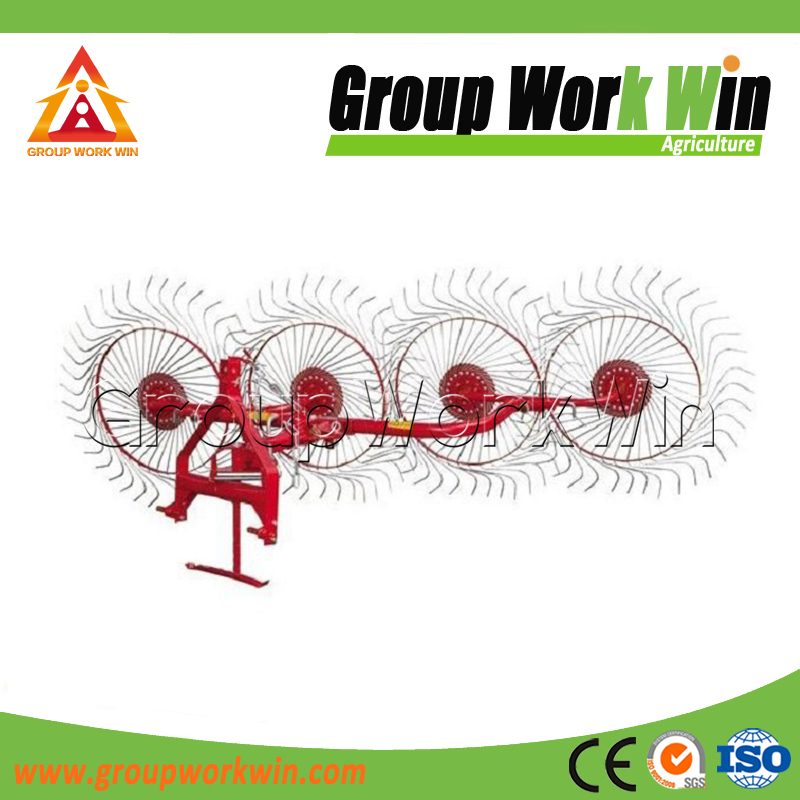

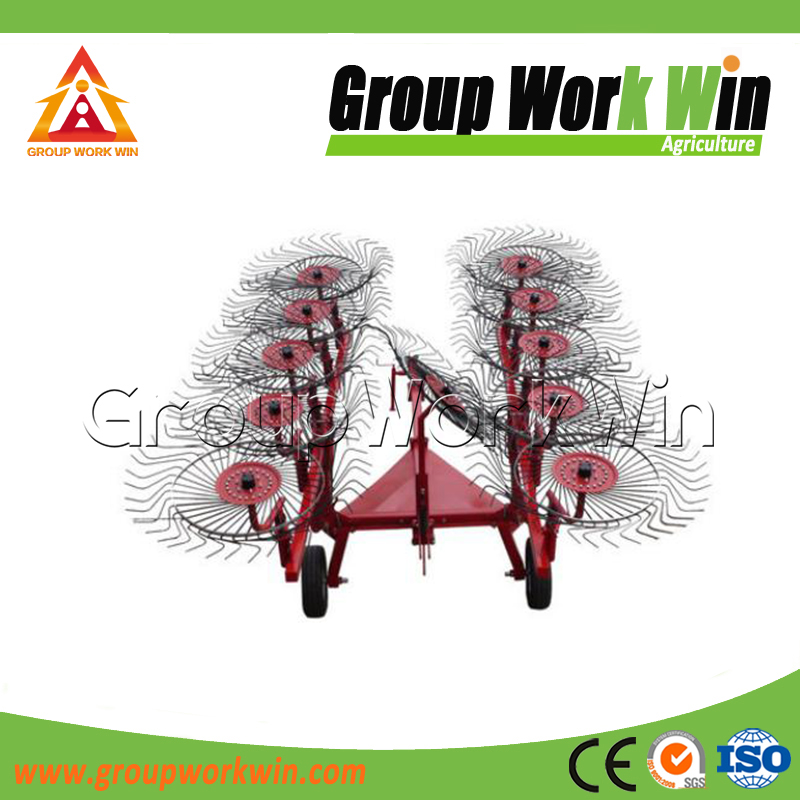

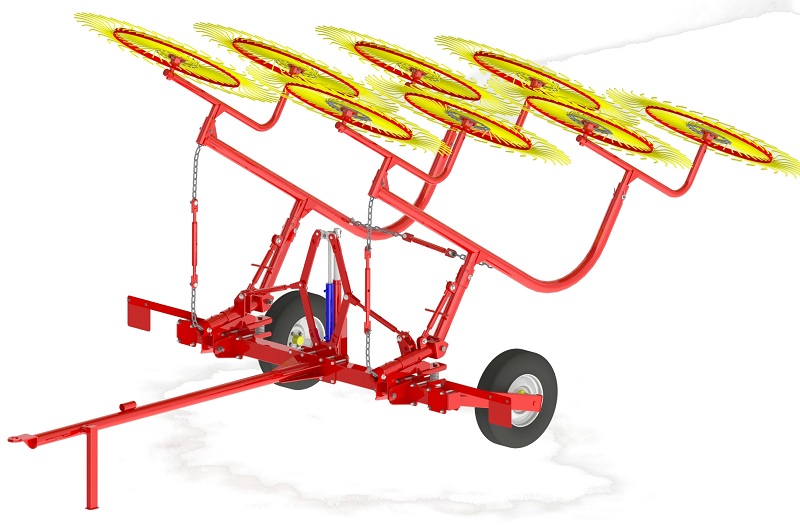

It is composed of several finger wheels which are arranged in parallel on the axis of the frame.During the operation, the finger wheel contacts the ground and rotates by the friction force of the ground. The grass is held to one side to form a continuous and neat grass strip.Refers to the wheel plane and machine direction Angle between the average is 135 °.The operation speed can reach more than 15km/h, which is suitable for gathering the forage with high yield, residual crop straw and residual film in the soil.Change the Angle between the finger wheel plane and the forward direction of the machine to turn the grass.


Model

9LTS-3

9LTS-4

9LTS-4.8

9LTS-4.8

9LTS-6

9LTS-7

9LTS-8

9LTS-9

9LTS-9.5

Weight (kg)

255

375

445

850

1000

1100

1250

1350

1450

Working Speed (km/h)

5-12

Matched Power (kw)

15-29.4

25.7-44.1

29.4-52

≧36.7

Working  Width (mm)

3000

4000

4800

4800

6000

7000

8000

9000

9500

 Number of Finger Disc (pcs)

4

6

8

8

9

10

11

12

13

Diameter of Finger Disc (m)

1.46

 Grass Strips Width

0.9-1.2

1-1.5

Linkage

Three Point Mounted

Trailed

C导航条.jpg去.jpgThe hay rake is a hay harvester which integrates grass strips into the scattered grass on the ground.The purpose is to dry the forage and collect the hay.According to the relationship between the direction of the blade and the forward direction of the machine, the rake can be divided into two categories: transverse and lateral.

D导航条.jpg联合整地机  包装运输.png

Package and Delivery

Packaging Mode: Iron frame, iron crate or customized.

Delivery Time: Within  15-25 working days after payment

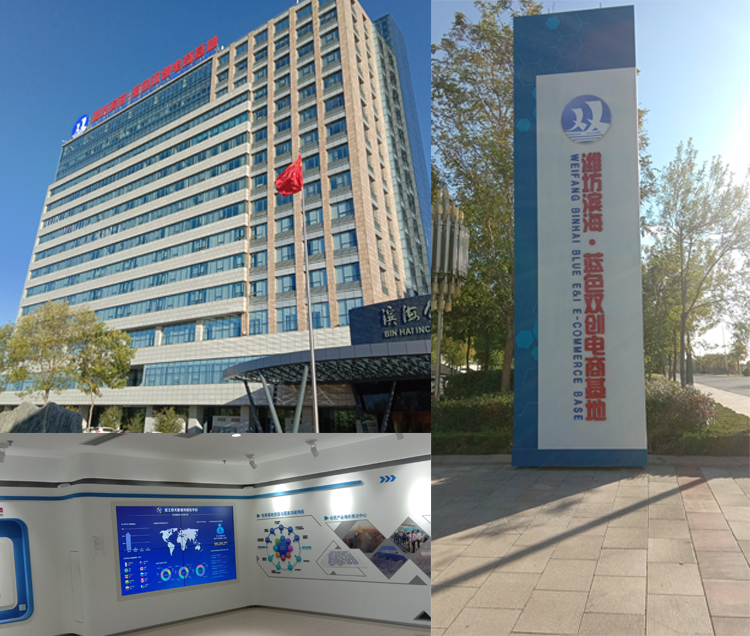

Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.


Contact information

Bing Zhou (Sales Manager)

E-mail: bing@groupworkwin.com

Whatsapp/wechat:+86 13963692050

Website: www.estmachine.com

Weifang Binhai Group Work Win Co., Ltd.


Q1: How about your company?

A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.

Q2: What is the MOQ?

A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.

Q3: What is the delivery time?

A3: 15-20 working days after payment.

Q4: What about the package?

A4: Iron frame or iron crate.

Q5: Can I put my brand name on your agricultural machines instead of your brand name?

A5: Yes. We could do OEM/OBM.

Q6: What about the payment terms?

A6: T/T. We also can accept other payment terms.

Q7: Can we mix different models together?

A7: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.
