Huge Duty Farm Cultivator use combined land preparation machine with disk harrow
Huge Duty Farm Cultivator use combined land preparation machine with disk harrow
FOB Price:
US $1,000.000 / Pieces
Min.Order:
0 Pieces/Pieces
Supply Ability:
6000 Pieces/Pieces per Month
Port:
qingdaogang
Your Email:
Quantity:
Pieces
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
zhiyan
Model Number:
1ZL-3.6
Product Description

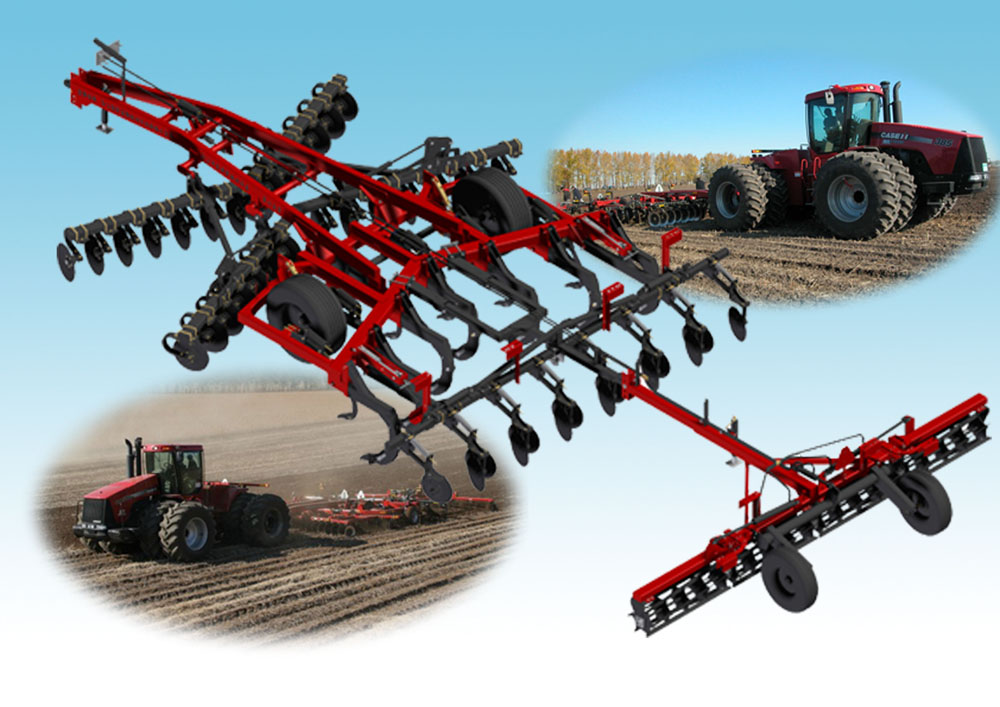

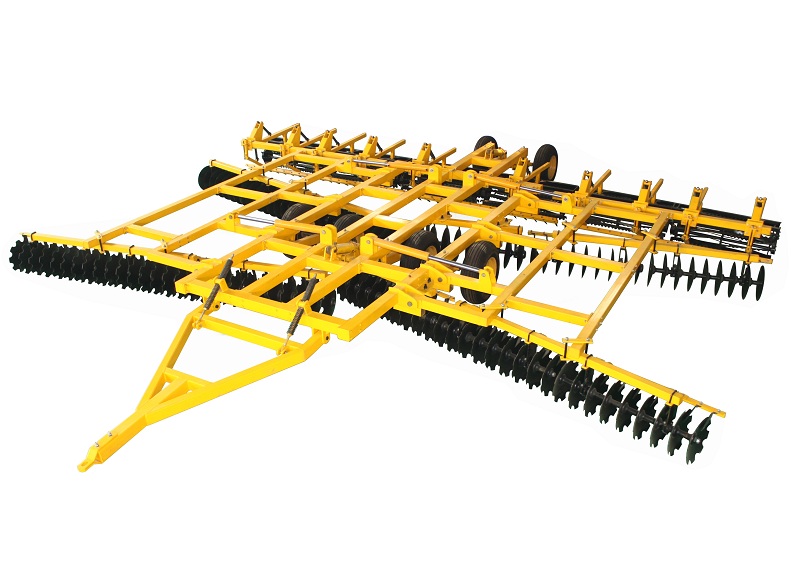

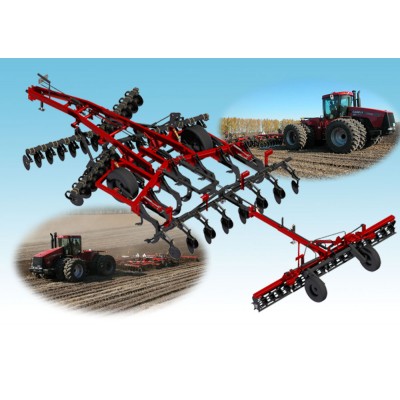

Huge Duty Farm Cultivator use combined land preparation machine with disk harrow


Joint soil preparation machine is a kind of multi-functional soil preparation machine, by middle frame, drawing frame, beam, gearbox, transmission case, deep loosening shovel assembly parts and rotary tillage and stubble parts, transmission case set at the side of the frame, a transmission box set up seven mutually meshing gears, middle beam parallel set between the rotary shaft and stubble, beam has deep loosening shovel assembly, rotary shaft of the gearbox output shaft directly driven by;The output shaft on the side of the gearbox is connected with the input shaft of the transmission box through a universal coupling, and the stubble killing shaft is driven by the output shaft of the transmission box. A forced leveling device is arranged at the rack between the rake disc group and the compactor.Principle: a flat soil shovel is installed under one end of the rack equipped with a suspension frame, and at the rear end of the rack, a broken soil roller frame with a broken soil roller is connected by adjusting screws, and a spring-tooth rake with spring-tooth teeth is hung between the flat soil shovel and the broken soil roller.During the operation, the flat soil is scraped and scraped, the elastic tooth harrow is used to loosen the soil, and the crushing roller is used to crush the soil and suppress the topsoil.Do not turn over the soil layer in the operation, is the finishing machine.



Model

1LZ-3.6

1LZ-4.2

1LZ-5.1

1LZ-6.0

1LZZ-7.0

1LZZ-9.0




Overall Dimension (mm)

6600*3660*1050

6600*4300*1050

6600*5600*1050

6800*6700*1050

7000*7320*1100

9000*9120*1100




Working Width (mm)

3600

4200

5100

6000

7000

9000




Working Depth (mm)

80-150

Qty. of Disc (per)

42

52

62

72

84

108




Size of Disc

460*3 (also can choose 460*4 or 510*4)

Transport Clearance (mm)

280

Weight (kg)

2000

2620

3320

3800

4150

6800




Productivity (ha/h)

2.2

2.5

3.2

3.8

4.5

5.0




Matched Power (hp)

70-120

80-130

100-150

120-180

150-200

200-260




44导航条.jpg联合整地机  包装运输.png

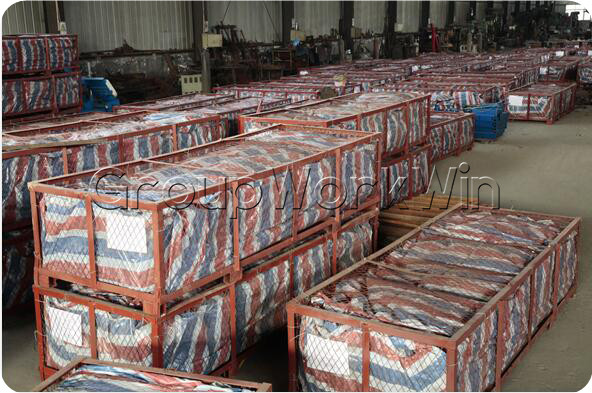

Package And Delivery

Packaging Mode: Standard Export Packge

Delivery Time: Within 35-40 working days after payment

Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.


Contact information

Bing Zhou (Sales Manager)

E-mail: bing@groupworkwin.com

Whatsapp/wechat:+86 13963692050

Website: www.estmachine.com

Weifang Binhai Group Work Win Co., Ltd.


Q1: How about your company?

A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.

Q2: What is the MOQ?

A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.

Q3: What is the delivery time?

A3: 35-40 working days after payment.

Q4: What about the package?

A4: Iron frame, iron crate or naked.

Q5: Can I put my brand name on your agricultural machines instead of your brand name?

A5: Yes. We could do OEM/OBM.

Q6: What about the payment terms?

A6: T/T. We also can accept other payment terms.

Q7: Can we mix different models together?

A7: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.
