Nickel Alloy Hastelloy Tube--HengHongTitan(Zhangjiagang)Co.,Ltd

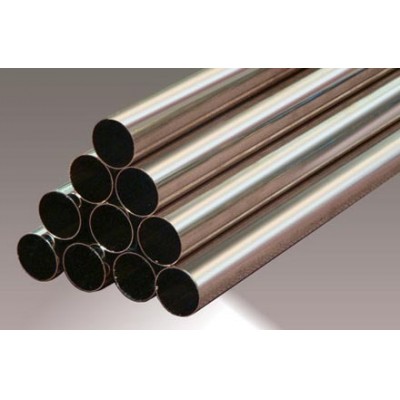

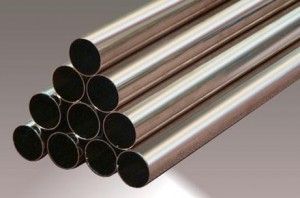

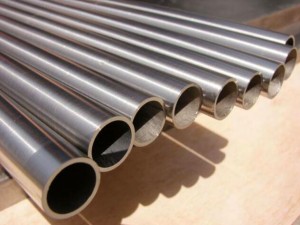

ASTM B622 Hastelloy Tube/Nickel Alloy Hastelloy C276 Tube

Specifications

Hastelloy tube
1.OD: 1/2"~12"
2.WT: Sch10s~Sch160
3.Standard: ASTM B622, ASTM B366

4. hastelloy C276 tube Physical properties/ hastelloy tube :

Density	8.9 g/cm³
Melting point	1325-1370 °C

5.hastelloy C276 tube hastelloy C276 tube Alloy minimum mechanical properties in the room temperature

Alloy state	Tensile strength Rm N/mm²	Yield strength R P0. 2N/mm²	Elongation A 5 %
C /C276	690	283	40

6. hastelloy C276 tube Chemical composition/ hastelloy tube:

Alloy	%	Ni	Cr	Mo	Fe	W	Co	C	Mn	Si	V	P	S
C	Min.	balance	14.5	15	4	3
C	Max.	balance	16.5	17	7	4.5	2.5	0.08	1	1	0.35	0.04	0.03
C276	Min.	balance	14.5	15	4	3
C276	Max.	balance	16.5	17	7	4.5	2.5	0.01	1	0.08	0.35	0.04	0.03

7.Characteristic of Hastelloy C276 tube

1. Excellent corrosion resistance to most of corrosion media in oxidation and reduction environments.
2. Excellent resist pitting, crevice corrosion and stress corrosion cracking performance.

8.Applications:

· Excellent corrosion resistance in reducing environments

· Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

· High nickel and molybdenum contents providing good corrosion resistance in reducing environments

· One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide
