Super long work range ibeacon eddystone bluetooth beacon for various application scenarios
FeasyBeacon Super is an USB-powered Bluetooth 4.2super long range beacon, which comply with
iBeacon,Eddystone, AltBeacon technology. WithCE,FCC,ROHS Certifications, support 10 slots broadcast
which can be configurable for non-connectableadvertising frames. Transmit distance reach up to 4000m
in very open space.

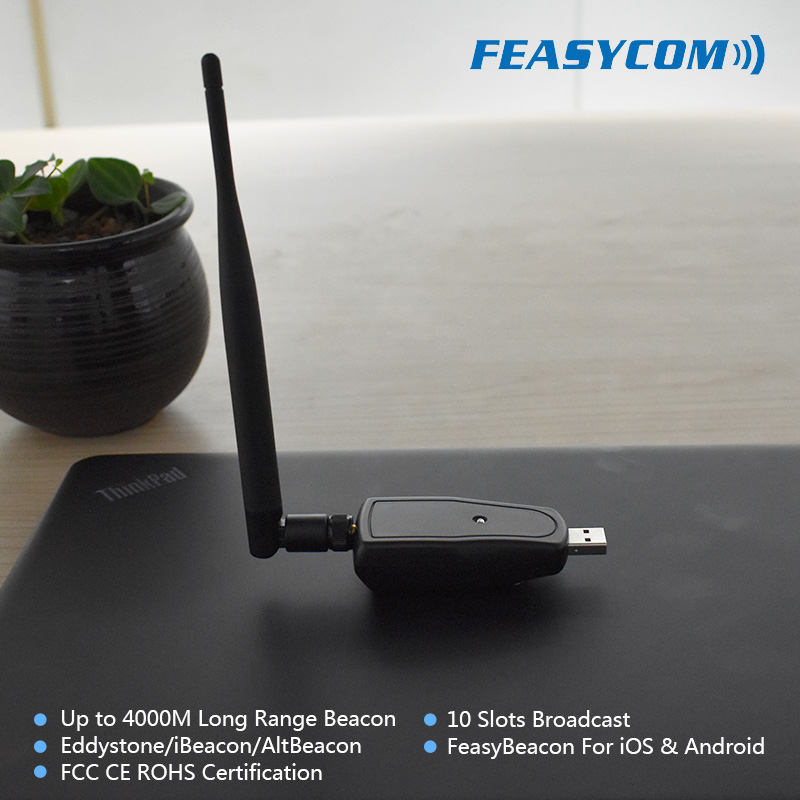

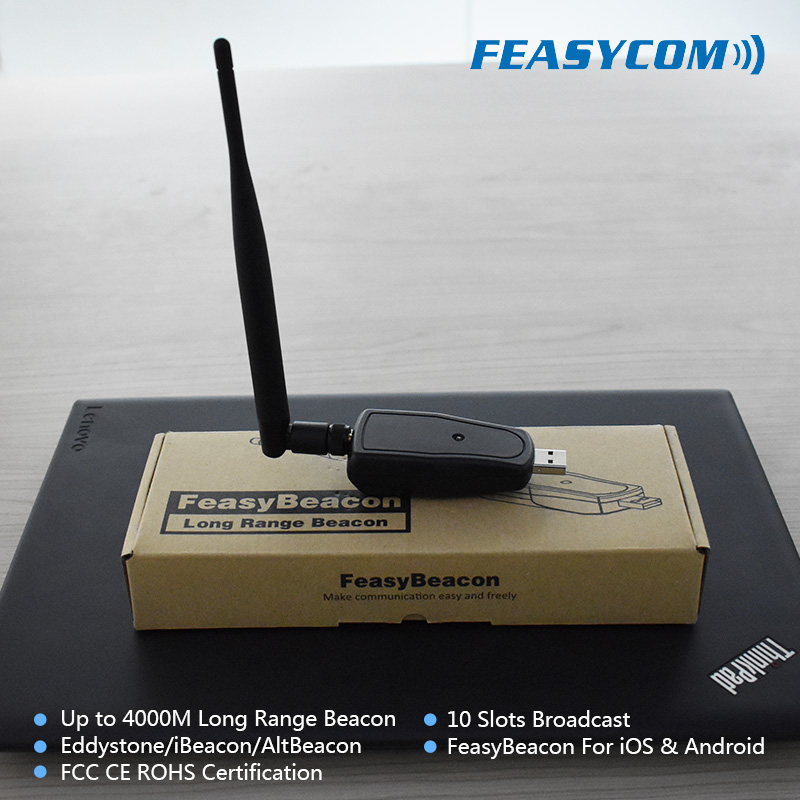

FeasyBeacon Super with CSR8811 Chipset, is speciallycustomized for solving the poorer coverage problem
by having an whip antenna that allows for a range up to4000m, particularly suitable for retail, stadium, museum,
hospital, exhibition, hotel, restaurant and the remote areawireless communication application ,etc.
FeasyBeacon Super can be powered by any electronicdevice with USB port or directly by the AC power via an
AC/DC power supply with the USB Port. This ensures an endless operating life, without any maintenance & extra
cost for battery replacement.
Advantage:
*Work distance up to 4KM
*FCC CE ROHS certification
*FeasyBeacon APP ,iOS & Android SDK support
*iBeacon/Eddystone/AltBeacon
*Support 10 slot broadcast
*USB Power Supply
Advertising | ||
iBeacon Version | ||
User-configurable characteristics | UUID,major and minor numbers, tx power at 1m | |
Advertising interval | 0.1 to 1 sec (programmable,with 0.1 sec steps) | |
Secure config | access password, connectable/ non-connectable | |
Switch | iBeacon on/off | |
AltBeacon Version | ||
User-configurable characteristics | UUID,major and minor numbers, tx power at 1m | |
Advertising interval | 0.1 to 1 sec (programmable,with 0.1 sec steps) | |
Secure config | access password, connectable/ non-connectable | |
Switch | AltBeacon on/off | |
Eddystone Version | ||
User-configurable characteristics | UID Frame,URL Frame, tx power at 0m | |
Advertising interval | 0.1 to 1 sec (programmable,with 0.1 sec steps) | |
Secure config | access password, connectable/ non-connectable | |
Switch | Eddystone on/off | |
Product Specification | ||
Core module | CSR8811 + RF Power Amplifier | |
MCU core | ST ARM 32-bit Cortex-M4 CPU | |
Max Number of Broadcast | 10 Slots configurable for non-connectable or connectable advertising frames | |
Default Broadcast Interval | 152ms | |
Current consumption | Radio TX: 225 mA (@ 18.5dBm) Radio RX: 225 mA Idle mode: No support | |
Upgrade Mode | OTA (over the air update firmware), support iBeacon and Eddystone, AltBeacon adv at the same time | |
Bluetooth Standard | Bluetooth 4.2 Smart Ready(Dual Mode) | |
Frequency band | 2.402 to 2.480 GHz (according Bluetooth 4.0 specifications, worldwide ISM band) | |
Advertising channels | Classic Bluetooth: 2.402GHz~2.48GHz BT4.2: CH37 (2.402 GHz), CH38 (2.426 GHz), CH39 (2.480 GHz) (according Bluetooth 4.0 specifications) | |
Channel spacing | 1MHz Or 2MHz (according Bluetooth 4.0 specifications) | |
TX power | +18.5 dBm (Max) | |
Support system | iOS 7.0+,Android4.3+ | |
Android/IOS config app | Yes | |
Work distance | In open area: iOS System: 4000m Android System : 1000m | |
Antenna Type | Whip Antenna (SMA interface) | |
Gain | 6dBi (Max) | |
Radiation diagram | Omni-directional | |
Power supply | USB | |
Voltage | 5V (typ.) | |
Material | ABS plastic | |
Color | Black | |
Size | 9 X 3.8 X 2.2 cm(not including antenna) | |
Net weight | 54g | |
Packing Size | 22.5*8.5*3cm | |
Protection | IP40 | |
Operating temperature | -40°C to +85°C | |
Certification | CE,ROHS,FCC | |
Now for how to enable the Physical Web app.
Step 1: Download Physical Web app.
Step 2: Plug in beacons broadcasting Eddystone-URL signal.
Step 3: Refresh the app and wait for Eddystone-URL signals to appear.
Step 4: Check out the URL and enjoy your Physical Web experience!
How to enable Google Chrome to receive Eddystone-URL
Step 1: Download Google Chrome.
Step 2: Enable Google Chrome’s today widget and make sure it is scanning for Physical Web objects.
