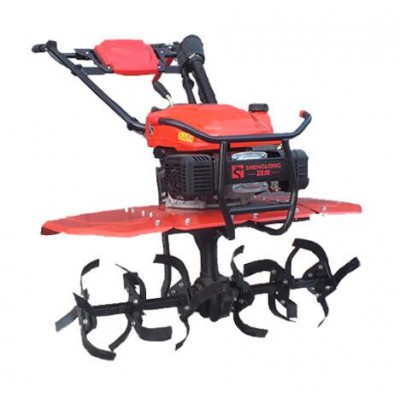

Farm machine Mini Power Tiller/Cultivator
Product Description
1. Large-displacement vertical axis engine, three-stage air filter, full gear drive.
2. The volume is small, the weight is light, and the structure is compact.
3. Oil bath automatic clutch, continuously variable transmission, simple operation, strong and durable.
4. The patented design quickly folds the protective plate, and the replacement of equipment, and the ridge operation is easy and convenient.
5. The integral nodular iron gearbox has high strength and strong durability.
6. The handlebar can be adjusted to meet different processing requirement.
Product Show
| Start modeMatched power | 1P70FA,4.1KW(6.5HP) | Diameter of the rotary blade | 300mm |
| Weight | 55kg | Engine brand | LONCIN Power |
Overall dimensions (length*width*height) | 1500*650*820(mm) | Overall dimensions (length*width*height)(PACKAGE) | 570mm*470mm*700mm |
| Engine type | Gasoline, 4 stroke,air cooled | Displacement | 196cc/ 224cc |
| Economical Fuel consumption | 0.8L /700m2 | Handlebar | Reduce shake system with spring(adjustable) |
| Productivity | 700-1000m2/ hour | Max Power Output HP (kw)/rpm | 6.5(4.1)/ 3600 |
| Tilling depth | 150-280 mm | Clutch | Centrifugal clutch, Dry type |
| Tilling width | 300-950 mm | Gear shift | Stepless |
| Operating speed | 0.5-1.3km/h | Wheel size | 350-6 |
| Tread | 350mm | Axis Inner diameter | 23mm |
| Rotary blade speed | RPM150/180 | Operate method | Walking behind |
| Carburetor choke | Included | 20GP | 85 sets |
| Electric start | Optional | 40GP/HQ | 200 sets |
| Power transmission | Full gear | Start method | Manual/ Electric start |
| Function | Tilling/
|
Product quality protection
