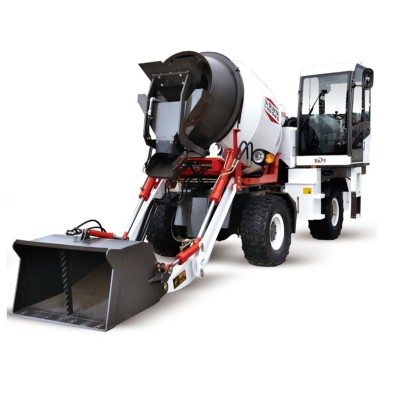

1.5 cubic meter self loading ready mix truck concrete mixer automatic loading transit mixer cement mixer truck
1.5 cubic meter self loading ready mix truck concrete mixer automatic loading transit mixer cement mixer truck
Supply Ability:
0 per 0
Port:
Your Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Product Description

Product Description

This is a unique product in the automatic concrete mixer market. The fifth generation self-feeding mixer upgrades the bucket down function to truly realize the multi-purpose loading function of the machine. At the same time, the brake caliper increases the braking performance and matches the high-pressure car wash. The equipment is kept clean, and the water tank is increased to increase the output... So far, the fifth-generation product truly realizes the multi-purpose function of the loading function, the stirring function, the transportation function, and the car washing.They provide excellent maneuverability (rotatable cab operating table and drum rotation system) , flexibility and autonomy. Equipped with an innovative computerized production system capable of producing high quality concrete.

rotatable cab in front and rear, the moving arm and the drum can both be horizontally rotated by -90°~+90°and bucket down function. The consistency, repeatability and quality of the concrete batch are the 4 major advantages we can guarantee. This is the unique feature of our product.

The extremely compact, flexible and reasonably priced vehicle can unload 1.5m³ of concrete at one time. It can work continuously for 24 hours a day with no stop, and the daily output (8 hours) is 84 m³.

No need mixer, concrete carrier and loader,save 100 degrees power and save at least 3 labours per day!


Overall size(mm)

5100*2350*2850

Drive axle

1.8T Wheel axle reduction bridge

Wheelbase(mm)

2300

Tire

20.5-16

Weight(kg)

5500

Bucket capacity(m³)

0.4

Engine

YuChai 4100 Supercharged

Drum capacity(m³)

>=1.5

Power(kw)

73(99Hp)

Reduction ratio

1:24

Gearbox

265 Integrated

Rotating speed(rpm)

>=15

reducer

Chinese brand



Loading system

1).Working principle: hydraulic system of cycloidal motor and gear pump

2).Bi-directional cab operator station can be rotated, driving in both directions, no need to turn around, and it is convenient and quick to work.

3).Both the moving arm and the drum can be rotated horizontally 90°at left and right, a total of 180°, flexible loading and unloading.

4).Upgraded version of the bucket down function.

5).The dumping function can make the unloading more thorough and faster.

6).The concrete mixer is compact, easy to operate, with four-wheel drive,steering, and impressive off-road capability.

7).Brake calipers increase the brake performance.

8).The material of the drum is manganese plate, which is more wear-resistant.

9).Up and down hinged beaded bearings are more durable, 15 times more than traditional craftsmanship.

10).Front steering differential swing shaft, standard engineering tire, good air tightness, with certain safety and convenience.

11).High-performance electronic fan radiator, not suitable for high temperature.

12).Self-contained water tank, Water injection is quick and convenient

13).Car wash function: self-contained 8 Pa car wash gun

Optional hydraulic high pressure car wash(150-200kgs pressure)


Mian Features

Performance

● working 24 hours a day with no stopping
● 5 - 8 cans can be mixed in 1 hour
● Top speed: 25 km / hour
● Turning radius: 4 m
● When fully loaded, the climbing ability is up to 30°

Comfort and visibility

● The whole vehicle is small and flexible in operation.
● Multi-function joystick make operator easy to control.
● The cab has fan, air conditioner (optional), comfortable and cool.
● Reflector and camera, increases the range of vision,improves work efficiency, eliminates safety           hazards and blind spots in the cab.
● The spacious cabin windshield and specially designed loading arm greatly improve operational visibility.

Ergonomics and safety

Protecting the safety of workers is an obligation no organization can neglect nowadays. We are proud of this machine, which has been specially designed to provide full handling, the best ergonomic features for the driver and the latest safety devices available on the market. Our machines are in fact equipped with fan and air conditioner, with ergonomic controls and multi-function joystick, and with reversible driver's seat.Reflector and camera, increases the range of vision,help the operator observe the situation around .

Application field


Road construction, side ditch, foundation construction, building houses, strengthening roads, etc.
This high-productivity automatic concrete mixer is reasonably priced, easy to use, and has excellent day-to-day performance and reliability: due to these characteristics, it is also an ideal solution for rental and use.

Product Details

Drum, reducer, hydraulic motor

Reflector and Camera

Cabin

Engine

Upper and lower hinged ball bearings


Car wash high pressure tank
