Stainless Steel Handrail System
Stainless Steel Handrail System
  • >= 100  Piece US $55.000
Supply Ability:
5000 Piece/Pieces per 0
Port:
zhanjiang
Your Email:
Quantity:
Piece
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
zgangyao
Model Number:
ASTM A554
Product Description

Stainless Steel Handrail System

Basic Info

  • Sample: Available

  • Polish: 180#-400#Satin/Brushed,800#-1000#Mirror

  • Inspection Certificate: Offered

  • Selected Package: Wood Case,Iron Crate,Cardboard Tube,Shrink Film

  • Prompt Delivery: 25 Days After Deposit (Due to Quantity)

  • Trademark: ZY

  • Origin: Foshan, China

  • Company Feature: Taiwan-Owned Factory/ Manufacturer

  • Length: 6m for Standard, Cut to Length

  • Tolerance: +-10% in Thickness and Quantity

  • Ni Component: 8%~10%

  • Rubber: Designed for Slot Sizes and Thickness of Glass

  • Specification: ASTM A554

  • HS Code: 7306

Product Description

standard: ASTM A554/268/A269/A249/A270
grade : 304 304L 316 316L

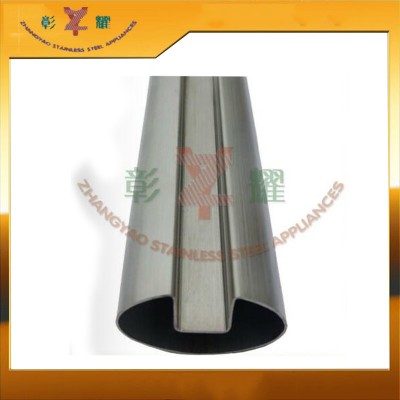

item: stainless steel round single slot tube
specification:
OD                      slot size                   thickness
25.4          *           12*12         *         1.0, 1.2, 1.5
42.4          *           24*24         *         1.2, 1.5, 2.0
48.3          *           27*30         *         1.2, 1.5, 2.0
50.8          *           15*15         *         1.2, 1.5, 2.0
60.3          *           34*34         *         1.2, 1.5, 2.0
63.5          *           20*20         *         1.2, 1.5, 2.0
76.2          *           25*25         *         1.2, 1.5, 2.0

some recommendation for you about the stainless steel round slot tube
Ø Single25.4*1.5*12*12/(14*14)*6000mm
Ø Single38.1*1.5*19.6*26.2*6000mm
Ø Single42.4*1.5*24*24*5000mm
Ø Single48.3*1.5*27*30*5000mm

item: stainless steel oval / elliptical tube ——
specification:
 OD(mm)                    thickness(mm)
   20*40         *          1.0, 1.2, 1.5, 2.0

40*60         *          1.2, 1.5, 2.0, 2.5

 38*62         *          1.2, 1.5, 2.0, 2.5
   40*80         *          1.2, 1.5, 2.0, 2.5

75*42         *          1.2, 1.5, 2.0, 2.5

some recommendation for you about the stainless steel oval /elliptical tube
Oval 38*62*1.2/1.5*6000mm
Oval 40*60*1.5/2.0*6000mm
Oval 40*80*1.5/2.0*6000mm
Stainless Steel Handrail System

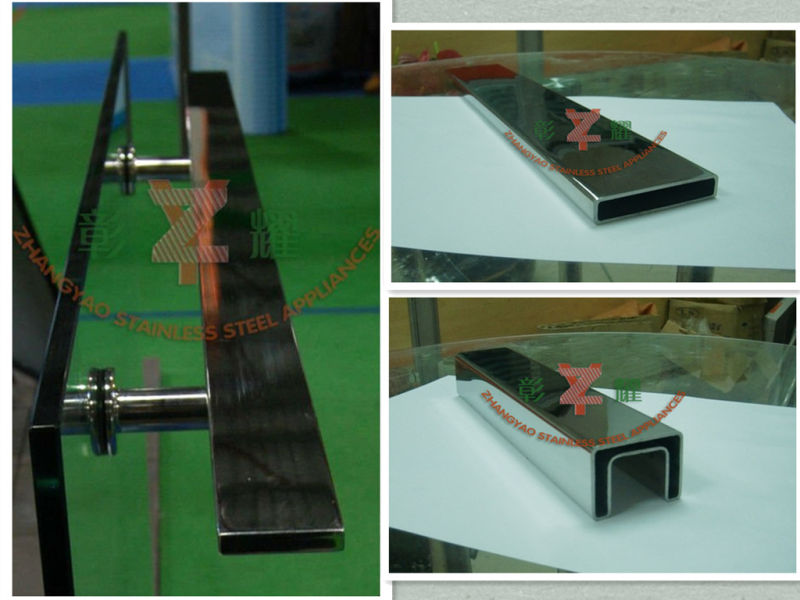

specification of special rectangular pipe:
        OD(mm)                 thickness(mm)
          10*30                       1.0~1.5
          10*40                       1.0~1.5
          10*50                       1.0~2.0
          10*70                       1.0~2.0
          15*40                       1.0~2.0
          15*45                       1.0~2.0
          15*50                       1.0~2.0
          15*60                       1.0~2.0

specification of square tube:
          OD(mm)          thickness(mm)
       10*10~15*15          0.8~1.0
       16*16~25*25          1.0~1.5
       30*30~35*35         1.0~2.5
       50*50~80*80         1.2~3.0
       20*10~30*15         1.0~1.5
       38*25~40*60         1.2~2.5

some recommendation for you about the stainless steel rectangular tube
10*50*1.5*6000mm
15*5*1.0*6000mm
25*50*1.5/2.5*6000mm
40*60*2.0*6000mm
20*40*2.0*6000mm
Stainless Steel Handrail System
remarks as below:
1. sample is available
2. mill test certification & ODM offered
3. buyer's lable accepted
4. quotation are on FOB/ CIF/ CNF basis
5. payment by T/T or L/C: 30% deposit and balance before shipment, as usual practice.
6. surface treatment (polish): 320# satin, grit, 400#~800# mirror, 1000# super mirror, titanium gold plated
7. 304 Ni component is over 8%, 316 is over 10%
8. standard length in 6000mm per piece, nevertheless it's customized for clients.
9. packing methods: bundle (double plastic bags, shrink film, iron cases, cardboard tube)
10. port of loading: Foshan, Huangpu, HK, Shenzhen
11. prompt delivery: 25 days after deposit in usual practice, depend on quantity

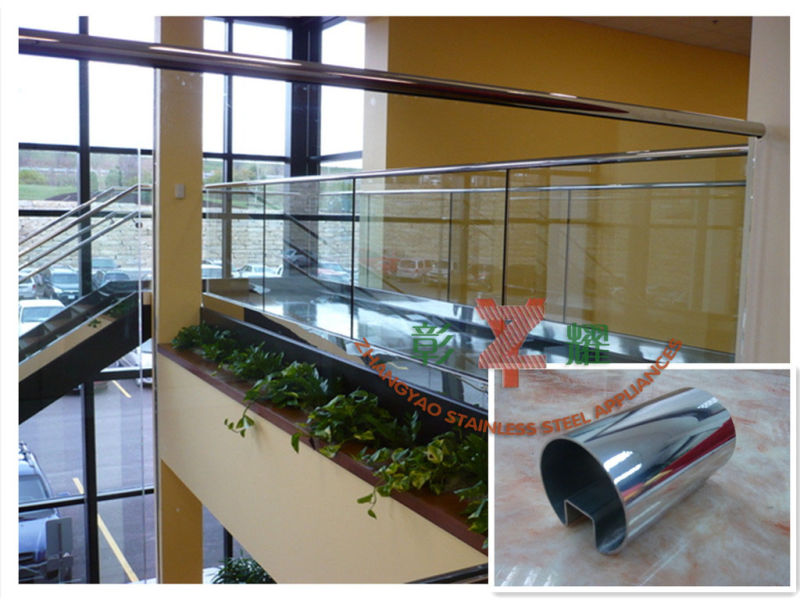

glass installing:

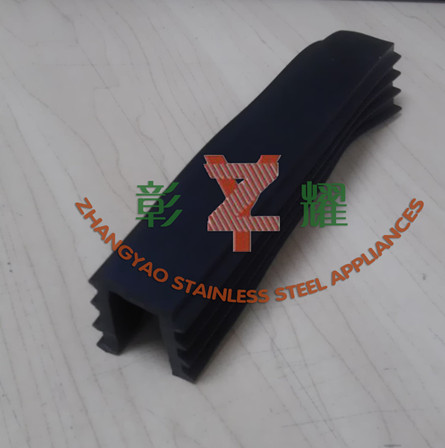

glass would be insert into the slot, rubber is needed:
slot size(mm)                               glass thickness(mm)
    15*15                                                  5-12mm
    20*20                                                  8-15mm
    25*25                                                  8-22mm
    25*30                                                 10-22mm
Stainless Steel Handrail System

packing methods:
1. each tube sleeved in a plastic bag, then put in cardbox with strips
2. each tube sleeved in a plastic bag, then packed in bundles/steel crates.
3. each tube sleeved in a plastic bag, then packed in  cardboard tubes, both sides with end cap, lastly packed in steel crate.
4. 304 in green packing: green plastic bag and green painted steel case.
5. 316 in red packing: red plastic bag and red painted steel case.


High Grade : 304 304L 316 316L
Zhangyao stainless steel(Taiwan-owned Enterprise)
Stainless Steel Round Slot Tube
Help Beautify Your Handrail and Glass System
SLOT(mm):15*15 Series Product
SHAPEOD(mm)Thick(mm)Slot(mm)Featured Finish

ROUND


Mirror 600#-1000#(Your Eyes And Nose could be seen Clearly From The Surface Just like The Mirror)
Single Slot38.11.515*15
Single Slot 50.81.515*15
180°Double Slot50.81.515*15
90°Double Slot50.81.515*15
SQUARE


Single Slot Square30*301.515*15
Single Slot Square40*401.515*15
Single Slot Square50*501.515*15
180°Double50*501.515*15
90°Double50*501.515*15
REC.


Single Slot Rectangular25D*30W1.515*15
Single Slot Rectangular25DX50W1.515*15
OVAL


Single Slot Oval40X601.515*15

SLOT(mm):24*24 Series Product
SHAPEOD(mm)Thick(mm)Slot(mm)Mirror 600#-1000#(You Could See Your Eyes And Nose Clearly From The Surface Just like The Mirror)
ROUND


Single Slot Round42.41.524*24
REC.


Single Slot Rectangular40*601.524*24
OVAL


Single Slot Oval40*801.524*24

RHS(10*50) You May Need With Slotted Tube Aboved
SHAPEOD(mm)Thick(mm)Length(mm)Mirror 600#-1000#(You Could See Your Eyes And Nose Clearly From The Surface Just like The Mirror)
Rectangular Hollow Section 10*501.2-1.5Cut-to Length

Others tubes productsFeatured Finish
Single Slot Round48.3-76.21.527*30-34*34Mirror 600#-1000#
Single Slot Oval40*80-40*1101.520*20-33*26
Oval Tube23*38-50*1201.5no slot
Round Tube6-16-1590.5-4.0no slot
Square Tube10*10-100*1000.5-4.0no slot
Rectangular Tube20*10-120*600.5-4.0no slot

Standard Export PackageA: Each tube SLEEVED in a plastic bag, then put in cardbox with strips.(For Cut To Length Small Tubes)
B: Each tube SLEEVED in a plastic bag, then packed in bundles/steel crates.
C: Each tube SLEEVED in a plastic bag, then packed in  cardboard tubes, both sides with end cap,lastly packed in steel crate.
Remarks:1)Payment:T\T
2)Price Terms: FOB Foshan/Shenzhen/HuangPu/HK(China Port); CIF/C&F
3)Delivery :13-45days after deposite,balance before shippment.(based on QTY)
4)Buyer Lable accepted.
5)Mill test certification offered.
Stainless Steel Round Slot Tube
Warmly Welcome You To Our Factory And Make Our Bright Future!
CompanyFoshan Zhangyao stainless steel appliance co.,ltd(Taiwan-owned Enterprise)
Registration No.: 440681000130741
ADD: 3#,A area Ganxian cun industrial district Chencun Town Shunde Area Foshan City Guangdong Province,China.
Pick You UpIf you are near Foshan city,it is our great honour to pick you up for free !
Let's doing business just as making friends !


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
