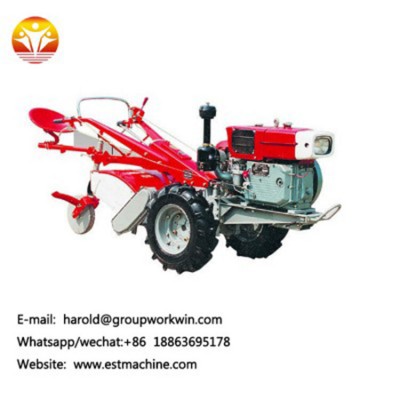

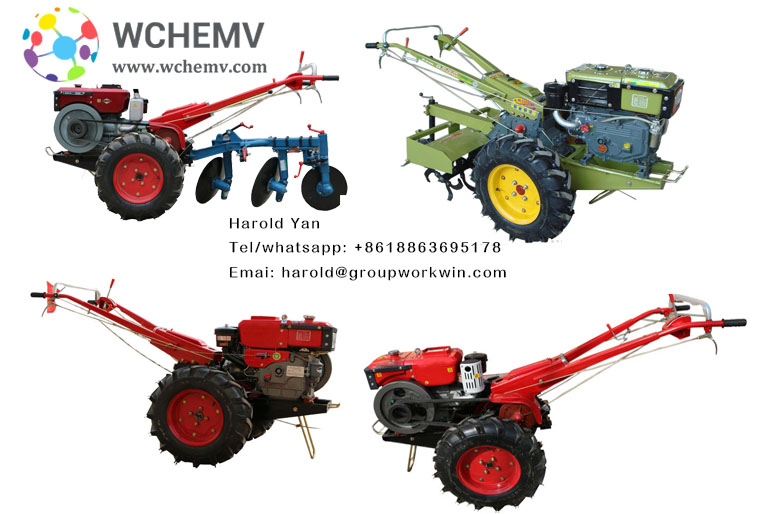

Agricultural walking tractor
Walking tractor is a kind of small tractor, which is popular in Chinese villages and towns as a means of transport and agricultural machinery. It is powered by diesel engine. Its compact, flexible and powerful characteristics make it very popular with farmers.

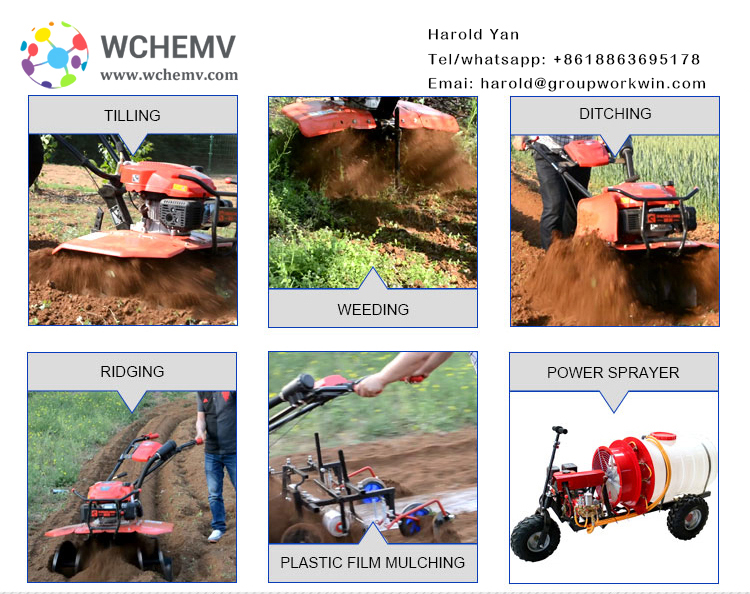

1. Tilling
2. Weeding
3. Ditching
4. Ridging
5. Plastic film mul ching
6. Power srrayer
Model | Unit | SX1500 | ||||||
Structure weight | kg | 290 | ||||||
Overall dimensions (LxWxH) | mm | 2170x 845 x 1150 | ||||||
Type | single cylinder, horizontal | |||||||
Power | 10.5KW/15HP | |||||||
Travelling speed | Forword | Km/h | I 2-3, II 5-7, III 14-18 | |||||
Reverse | R 11-13.5 | |||||||
The wheel base | mm | 680 ~ 740 (Stepless adjustment) | ||||||
Type size | 6.00-12( w-tire) | |||||||
Minimum ground clearance | mm | 210 | ||||||
Transmission
| / | two belt | ||||||
The central drivetrain Transmission | cylindrical gear | |||||||
Drivetrain final drive | single-stage spur gear circle column wheel drive | |||||||
The steering mode | rodents nested together | |||||||
Rodents nested together | ring-up | |||||||
Fuel tank pressure | MPa | 0.098 | ||||||
The fuel tank volume | L | 11 | ||||||
Engine lubricating oil | L | 1.5-2 | ||||||
Gearbox lubricants | 3-3.3 | |||||||
The cooling water injection amount | 12-13 | |||||||
Transmission | Clutch style | / | triple-plate,single-action,standard,dry-friction,long engaging friction | |||||
Gearbox style | / | main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift, (3 + 1)×2 composition formula circular gear wheel column | ||||||
Type of tractor | dual-purpose for both traction & drive | |||||||
1) Simple structure in linear type ,easy in installation and operation.
2) Adopting advanced high quality in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
Type: by sea or by air
Delivery time :10 days after we get the payment
Size based on orders
Qixia Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
1. are you a production plant or a trading company?
Answer: we are a production company.
2. what is the delivery time?
Answer: we have stock. Usually we can deliver the goods immediately.
3. what is the warranty time?
Answer: gear box 2 for one year, and 1 years for other areas.
4. what kind of walking tractor do you produce?
We can provide walking tractors from 7hp to 18hp.
5. is there a discount price?
