Product description

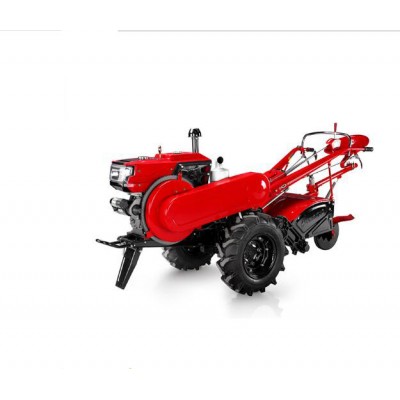

DF-18LM Power Tiller, Walking Tractor
power tiller/Two-wheel tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. It is powerful and efficient. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for ploughing, rototilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Product parameters
| Model of Power Tiller | Unit | DF-18LM | |
| Structure weight | Without rotavator | kg | 390 |
| With rotavator | 495 | ||
| Working weight (With rotavator) | 535 | ||
| Turning speed of rotatilling shaft | rpm | 188 | |
| Overall dimensions(L×W×H) | mm | 2680×960×1290 | |
| Number of blades | PCS | 18 | |
| Rototilling width | mm | 600 | |
| Riding system | Normal | ||
| Type of tractor | Single axle, dual-purpose for both traction & drive | ||
| Main gearbox | (3+1)×2 | ||
| Traveling speed | Forward | km/h | 1.5, 2.7, 4.4, 5.7, 10.2, 16.5 |
| Reverse | 1.1, 4.1 | ||
| Tire size | 6.00-12 | ||
| Wheel track | mm | 800, 740, 640, 580(normally use 800) | |
| Min. ground clearance | mm | 185 | |
| Min. turning radius | m | 0.9(with no rotavator) | |
| Model of engine | ZS1110N | ||
| Type of engine | Single-cylinder, Horizontal, 4-stroke, Direct injection, Water cooling | ||
| Bore ×stroke | mm | 110×115 | |
| Total displacement | L | 1.092 | |
| Compression ratio | 17:1 | ||
| Turing speed of crankshaft | rpm | 2000 | |
| Rated output | hp | 18 | |
| Specific fuel consumption | g/kW. h | 253.8 | |
| Specific lube oil consumption | g/kW. h | ≤2.72 | |
| Cooling mode | Condenser(Radiator) | ||
