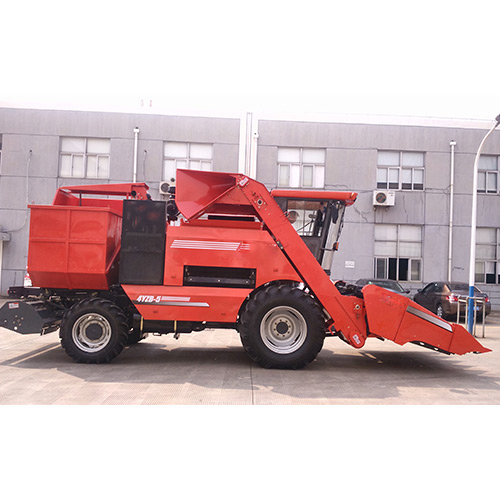

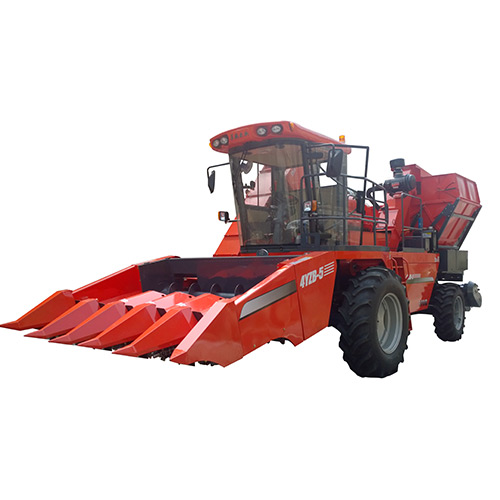

Self-propelled 4YZB-5
Features
1,160HP turbocharged engine(Option:WEICHAI brand160HP turbocharged engine ),large torque,low oil consumption)
2,Advanced serie-1000 gear box,4+1 gears,easy operate,large driving torque,high reliability & bearing capacity.
3,four-wheel drive, with stable performance and high adaptation,canadapt difference working speed.

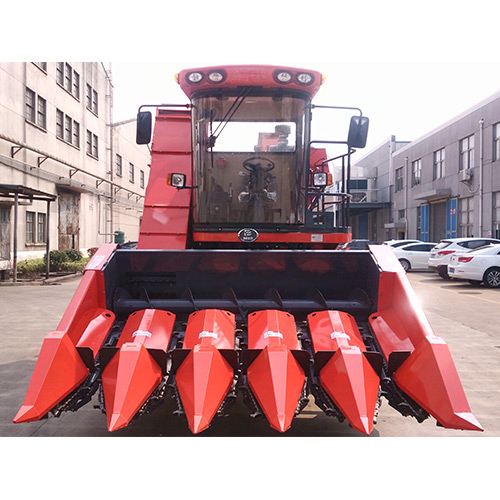

4,The header equipped a force-fed device with excellent feeding performance and high efficiency.
5,Threshing clean:Equipped large air flow double draught fan and vibrating screen.
6,Highautomation: Luxury cabin with 3 groups real time monitoring camera.
Specification:
Item | Unit. | Specification | ||
Model | / | 4YZB-5 | ||
Type | / | Self-propelled Corn Combine Harvester | ||
Motor | Brand | / | YUCHAI | WEICHAI |
Model | / | YC6J160-T300 | WP6G160E330 | |
Type | / | Vertical,in-line cylinder arrangement,water-cooled 4-cycle, CAC,BOSCH Common Rail | in-line cylinder arrangement,water-cooled 4-cycle, Inter-cooling,Common Rail | |
Rated Power | kW | 118 | ||
Rated Speed | r/min | 2200 | ||
Overall Dimension at work L×W×H | mm | 9350×3250×3600 | ||
Working Weight | kg | 10300 | ||
Harvesting Rows | Row | 5 | ||
Adopt Row Spacing | mm | 430-630 | ||
Gear box type | / | Mechanical+CVT | ||
Grain Tank | m³ | 5 | ||
Working Speed(Theoretical) | km/h | 1.5-5.5 | ||
