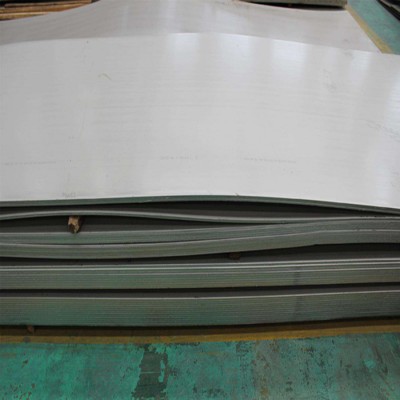

201 stainless steel sheet

Description

200 series stainless steel is developed as a substitute for the 300 series stainless steel.201 stainless steel usually with the features of acid, alkali resistance, high density, polishing no bubbles and so on.it is one of high-quality materials to produce decorative pipes, industrial pipes, and some shallow stretch products. Due to its lower nickel content, 201 offers a lower cost alternative to Cr-Ni austenitic stainless steels such as 304 grade.

Finish Styles

For stainless steel sheet/ plate, usually with 2B(Satin,Grain) finish,BA finish, Hairline(long line)finish,No.4 finish,8K mirror finish, various etching finish,Embossed plate and so on.

Size Datas

Thickness(mm)	Width(mm)	Length(mm)	Weight(kgs)
0.4	1219	2438	9.4
0.5	1219	2438	11.8
0.6	1219	2438	14.1
0.7	1219	2438	16.5
0.8	1219	2438	18.9
0.9	1219	2438	21.2
1.0	1219	2438	23.6
1.2	1219	2438	28.3
1.5	1219	2438	35.4
2.0	1219	2438	47.1
2.5	1219	2438	58.9
3.0	1219	2438	70.7

The weight above was just for your reference, as every sheet will has tolerance, if you need more information, please contact us.

Technical Parameter

201 stainless steel chemical composition

Element	%
C	≤0.15
Si	≤0.75
Mn	5.5~7.50
Cr	13.50~15.00
N	≤0.25
P	≤0.060
S	≤0.03
Ni	3.50~5.50

201 Physical Properties

Tensile Strength:	520MPa
Yield strength :	275MPa
Elongation:	55 to 60%
Elastic Modulus:	203000MPa
Hardness	HRB<183N/mm2(MPa)
Density :	7.93g/cm3

Application

201 stainless steel usually used in cookware, hose clamps, piston rings, transit car structural member, transit car roofing/siding, thermal window spacers, air bag containers, and truck trailer posts and door frames.
