Product Description

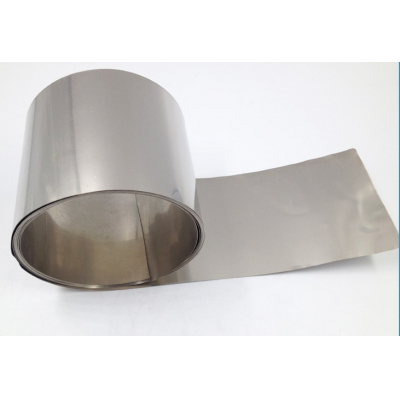

Item name | Titanium punch strip |
Specification | 0.05*200mm |
Application | Industrial |
Surface | Bright |
Processing | Rolled |
MOQ | 1kg |
Features:
1. Low Density and High Specification Strength
2. Excellent Corrosion Resistance
3. Good Resistance to Effect of Heat
4. Excellent Bearing to Cryogenics Property
5. Nonmagnetic and Non-toxic
6. Good Thermal Properties
7. Low Modulus of Elasticity
Chemical component / Mechanical Property
Chemical Composition
Grade | UNS | DIN | O | N | C | H | Fe | ||
Element content (weight %, max.) | |||||||||
Gr1 | R50250 | 3.7025 | 0.18 | 0.03 | 0.08 | 0.015 | 0.2 | ||
Gr2 | R50400 | 3.7035 | 0.25 | 0.03 | 0.08 | 0.015 | 0.3 | ||
Gr5 | R56400 | 3.7164/5 | 0.2 | 0.05 | 0.08 | 0.015 | 0.4 | Al 5.5-6.75 | V 3.5-4.5 |
Mechanical Property
Grade | Tensile Strength , min | Yield Strength,0.2% Offset | Elongation[min%] | ||||
Ksi | Mpa | min | max | ||||
Ksi | Mpa | Ksi | Mpa | ||||
Gr1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
Gr2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
Gr5 | 130 | 895 | 120 | 828 | - | - | 10 |
Product quality protection
