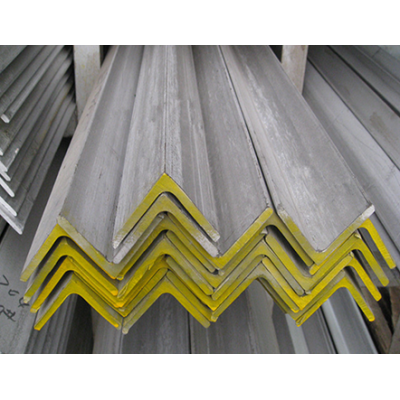

310S stainless steel angle bar
Description
Stainless steel angle bar with two types process, hot rolled and welded, usually with the width less than 100mm, we could produce it by hot rolled.hot rolled stainless angle shape with inside radius corners that is ideal for all structural applications where greater strength and superior corrosion resistance is required.
Stainless steel angle bar with the equal leg and unequal leg,Inside radius corner add strength to the shape. Stainless angle is well suited for structural applications that require strength and excellent corrosion resistance. Stainless steel angle also has a dull gray, mill finish and is used in all types of fabrication projects exposed to corrosive environments, such as acidic, chemical, fresh and salt water environments.
Normal Sizes
| size（mm) | weight（kg) | size（mm) | weight（kg) | size（mm) | weight（kg) | size（mm) | weight（kg) |
| 25*3 | 1.124 | 100*6 | 9.366 | 25*16*3 | 0.912 | 100*63*8 | 9.878 |
| 25*4 | 1.459 | 100*7 | 10.83 | 32*20*4 | 1.522 | 100*63*10 | 12.142 |
| 30*3 | 1.373 | 100*8 | 12.276 | 40*25*3 | 1.484 | 100*80*6 | 8.35 |
| 30*4 | 1.786 | 100*10 | 15.12 | 40*25*4 | 1.936 | 100*80*7 | 9.656 |
| 40*3 | 1.852 | 100*12 | 17.898 | 45*28*3 | 1.687 | 100*80*8 | 10.946 |
| 40*4 | 2.422 | 100*14 | 20.611 | 45*28*4 | 2.203 | 100*80*10 | 13.476 |
| 40*5 | 2.976 | 100*16 | 23.257 | 50*32*3 | 1.908 | 110*70*6 | 8.35 |
| 50*3 | 2.332 | 110*7 | 11.928 | 50*32*4 | 2.494 | 110*70*7 | 9.65 |
| 50*4 | 3.059 | 110*8 | 13.532 | 56*36*3 | 2.153 | 110*70*8 | 10.946 |
| 50*5 | 3.77 | 110*10 | 16.69 | 56*36*4 | 2.818 | 110*70*10 | 13.476 |
| 50*6 | 4.465 | 110*12 | 19.782 | 56*36*5 | 3.466 | 125*80*7 | 11.066 |
| 60*5 | 4.57 | 110*14 | 22.809 | 63*40*4 | 3.185 | 125*80*8 | 12.551 |
| 60*6 | 5.42 | 125*8 | 15.504 | 63*40*5 | 3.92 | 125*80*10 | 15.474 |
| 63*4 | 3.907 | 125*10 | 19.133 | 63*40*6 | 4.638 | 128*80*12 | 18.33 |
| 63*5 | 4.822 | 125*12 | 22.696 | 63*40*7 | 5.339 | 140*90*10 | 17.475 |
| 63*6 | 5.721 | 125*14 | 26.193 | 70*45*5 | 4.403 | 140*90*12 | 20.724 |
| 63*8 | 7.469 | 140*10 | 25.522 | 70*45*6 | 5.218 | 140*90*14 | 23.908 |
| 70*6 | 6.406 | 140*14 | 29.49 | 70*45*7 | 6.011 | 160*100*10 | 19.872 |
| 70*7 | 7.398 | 140*16 | 33.393 | 70*50*5 | 4.808 | 160*100*12 | 23.592 |
| 70*8 | 8.373 | 160*10 | 24.729 | 75*50*6 | 5.699 | 160*100*14 | 27.247 |
| 75*5 | 5.818 | 160*12 | 29.391 | 75*50*8 | 7.431 | 160*100*16 | 30.835 |
| 75*6 | 6.905 | 160*14 | 33.987 | 75*50*10 | 9.098 | 180*110*10 | 22.273 |
| 75*7 | 7.976 | 160*16 | 38.518 | 80*50*5 | 5.005 | 180*110*12 | 26.464 |
| 75*8 | 9.03 | 180*12 | 33.159 | 80*50*6 | 5.935 |
