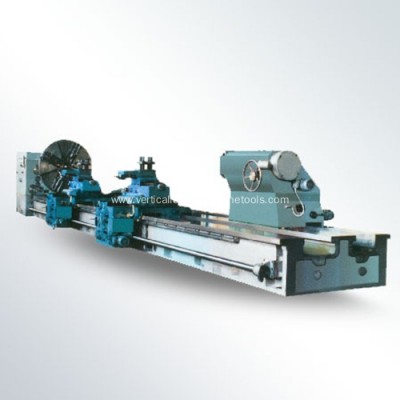

Large Centre lathe machine for sale
Large Centre lathe machine for sale
  • >= 1  Set US $90,000.000
Supply Ability:
4 Set/Sets per Month
Port:
Tianjin
Your Email:
Quantity:
Set
Contact supplier Start Order Add To Cart
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hengshui Shengyong
Model Number:
CW61200
Product Video
Product Description

Technical specification of  Centre lathe machine CW61200

1 Maximum swivel diameter on the bed 2000 mm

2 Maximum turning diameter over carriage 1750 mm

3 Maximum length of workpiece 80dm

4 Maximum weight between center 63t

5 Diameter of faceplate 2000mm

6 Maximum torque of faceplate 100KN.m

7 Range of spindle speeds 0.63-125 r/min

8 Maximum cutting force of carriage 90 KN

9 Total cutting force 160 KN

10 Range of feed rates ( long) 0.265-500 mm/min

11 Range of feed rates(Trans ) 0.106-200 mm/min

12 Range of feed rates(longitudinal) 0.053-100 mm/min

13 Rapid speed of of carriage( long) 3000 mm/min

14 Rapid speed of of carriage( Trans) 1200 mm/min

15 Dimensions of close mode steady supporting Φ200-700 mm

16 Dimensions of open mode steady supporting Φ700-1000mm

17 Scale of tool bar section 70×70mm

18 Power of main motor DC:100KW

19 Machine weight(Approx) 87 T

20 Overall dimensions(L×W×H) 1156×304×275cm


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
