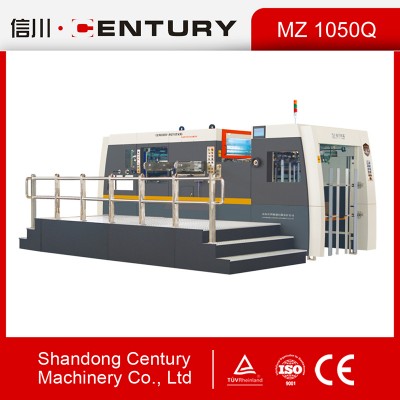

Machine’s Specification
Maximum paper size | 1050*750mm |
Minimum paper size | 400*360mm |
Maximum cutting size | 1040*360mm |
Maximum cutting pressure | 300 Tons |
Stock range | Carton board: 90-2000g; corrugated board: ≤4mm |
Cutting precision | ±0.5mm |
Maximum speed | 7,500 s/h |
Paper feeding height | 1250mm |
Paper delivery height | 1500mm |
Pressure adjusting range | ±1mm |
Minimum front margin | 9mm |
Inner chase size | 1140*756mm |
Total power | 20 KW |
Main motor’s power | 11 KW |
Dimension(including the work platform) | 6000*4400*2440mm |
Dimension ( excluding work platform and chase loader) | 6000*2400*2440mm |
Machine’s weight | 17 Tons |
Machine’s detail
Feeding Section ü Four pick up and four forward suck heads with angel adjustment. ü With high speed feeder, fast paper feeding with the maximum speed of 7,500 sheets per hour. ü Less scratches on the paper to ensure the quality of finished boxes. |
|
Feeding Table ü Side guards on both left and right hand sides push and pull convertible. ü Photoelectrical detector and side guard devices for high speed feeding and precise registration. |
|
Die-cutting Section ü Pneumatic push button die-chase locking mechanism to ensure safe and operator friendly changing of the die-cutting plate. ü Adopting the world famous brand of Bearings and Electronic components, precise control and die-cutting process can be achieved. |
|
Stripping Section ü Central positioning system to ensure the fast registration of stripping plate. ü Electrical controlled lifting device of the stripping frame to achieve fully stripping.
|
|
