Our palm oil expeller machine capacity: 300-500kg/h, 1tph...15tph (The common capacity)

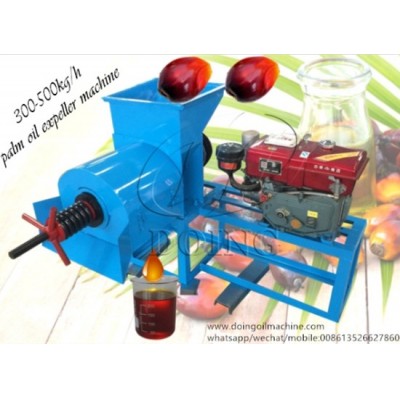

300-500kg/h palm oil expeller machine introduction:
1. Palm oil expeller machine mainly used to extrude palm fruit oil.
2. Designed and manufactured by Henan Doing company
3. It's good for small scale farm, small palm oil factory, home using,
4. Easy operation, easy move, easy change place
5. Driven by motor or diesel engine
6. Popular in Africa, South Africa, South America, Cameroon, Thailand, Ghana, Nigeria, etc.
Palm oil expeller machine
300-500kg/h palm oil expeller machine working animation:
Main data of 300-500kg/h palm oil expeller machine:
Capacity(kg/h) | 300-500kg/h |
Main Power (kw) | 7.5kw |
Boiling Time | 2h(100 degree steam or water) |
Weight (kg) | 450 |
Packed Size(mm) | 1500*800*1200 |
| Raw material
| Palm fruit |
| Second choice: 1tph double screw palm oil expeller machine |
Double screw palm oil expeller machine introduction:
1. Mainly used for processing palm fruits one ton per hour or two ton per hour;
2. It uses advanced oil press system, which adopts hydraulic control unit with DCV (Directional Control Valve) with Solenoid Control.
1tph double screw palm oil expeller machine
Main data of 1tph double screw palm oil expeller machine:
Capacity(kg/h) | 1tph |
Main Power (kw) | 7.5kw |
Boiling Time | 2h(100 degree steam or water) |
Weight (kg) | 900kg |
Packed Size(mm) | 2500*1000*700 |
| Raw material
| Palm fruit |
| Third choice: 15tph double screw palm oil expeller machine |
Hydraulic double screw palm oil expeller machine is used to extract palm oil (CPO ) from palm fruit. It is usually used in complete palm oil processing /milling plant.
Our hydraulic double screw palm oil expeller machine use hydraulic control system to adjust space between screws, it is suitable for various palm fruit species and guarantee the oil yield. After pressing, the crude palm oil need to be purified. the palm nut and fiber impurities can be procseed by further separation from the pressed cake. the palm nut is stored for deep processing, and the separated fiber are used as the boiler fuel.
Henan Glory Oils & Fats Engineering Co., Ltd. as one of subsidiary companies of Doing Holdings Co., Ltd. is a comprehensive oil machine manufacturing enterprise, integrating process design, technology research and development, manufacturing, sales and after-sales service.
