Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
CSPPM
Model Number:
PPM-T126
Measuring medium:
Gas, liquid
Output signal:
4~20mA, 0~5VDC, 1~5VDC, 0~10VDC, 0.5~4.5VDC
Power supply:
12~36VDC
Accuracy:
0.2%FS, 0.5%FS; 1.0%FS
Pressure range:
0-700kPa, 1-60MPa
Medium temperature:
-40℃~+125℃
Process connection:
M20x1.5, M14x1.5, M12x1, G1/4, G1/2,1/4NPT or other on request
Pressure type:
Gauge pressure(G), Sealed pressure(S), Absolute pressure(A)
Shock resistance:
50g
Ingress protection:
IP65
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Year PPM-T126 Cost-Effective Stainless Steel Pressure Transmitter
Packaging & Delivery
Packaging Details
Standard export packing, including instructions and certificate
Port
Changsha

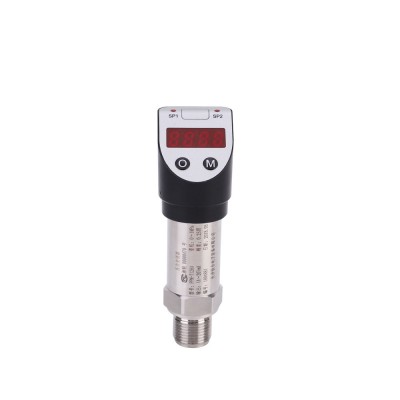

PPM-T126 Cost-Effective Stainless Steel Pressure Transmitter
Description of PPM-T126 Cost-Effective Stainless Steel Pressure Transmitter
The model PPM-T126 Pressure Transmitter for General Industrial Application offers excellent quality at an extremely competitive price. The various pressure ranges, pressure connection and output signal required for particular operating conditions are available.
Features of PPM-T126 Cost-Effective Stainless Steel Pressure Transmitter
1. Measuring ranges from 0~1kPa to 0~60MPa.
2. Accuracy: 0.2%FS.
3. Output signal: 4~20mA, 0~10V, 0~5V, 1~5V, 0.5~4.5V.
4. Process connection: M20×1.5, G1/4, 1/4 NPT
Specifications of PPM-T126 Cost-Effective Stainless Steel Pressure Transmitter
Measuring medium | Gas, liquid |
Pressure type | Absolute pressure(A),Sealed pressure(S),Gauge pressure(G) |
Measuring range | 0~1kPa,2kPa,5kPa,10kPa,20kPa,30kPa,40kPa,50kPa,100kPa, 150kPa,200kPa,300kPa,400kPa,500kPa,700kPa,1MPa,1.5MPa,2MPa, 3MPa,5MPa,6MPa,7MPa,10MPa,15MPa,20MPa,30MPa,40MPa,50MPa,60MPa |
Power supply | 12~36VDC |
Output signal | 4~20mA,0~5VDC,1~5VDC,0~10VDC,0.5~4.5VDC |
Accuracy | 0.2%FS,0.5%FS;1.0%FS |
Temperature drift | ≤±0.015%FS/ºC |
Long-term stability | ≤±0.2%FS/year |
Ambient temperature | -30ºC~+85ºC |
Medium temperature | -40ºC~+125ºC |
Storage temperature | -40ºC~+105ºC |
Ingress protection | IP65 |
Process connection | M20×1.5,M14×1.5,M12×1,G1/4,G1/2,1/4NPT or other on request |
Over pressure | 150%FS |
Damage pressure | 300%FS |
Vibration resistance | 5~1000Hz |
Shock resistance | 50g |
Material | Stainless Steel 1Cr18Ni9Ti Stainless Steel 316 |
Dimensions in mm of PPM-T126 Cost-Effective Stainless Steel Pressure Transmitter
PPM-T126A
