Detailed Product Description
|Name:||Copper Wire Granulator Machine||Usage:||Recycle Scrap Copper Wire|
|Size:||2700*1900*2300 Mm||Power:||23.12 Kw|
|Wire Diameter Processed:||0.1-20 Mm||Capacity:||150-200 Kg/h|
|Copper Purity:||99.9%||Voltage:||380 V Or Customised|

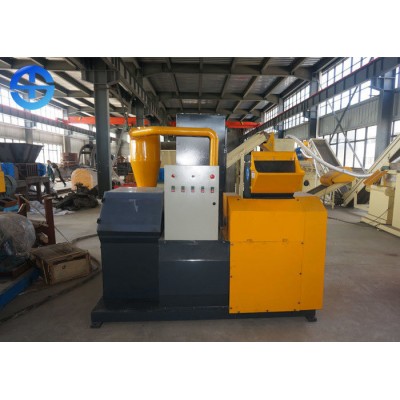

Medium model 400 copper wire granulator machine capacity 150-200 kg/h
The copper wire granulator machine is used for recycling scrap copper wires & cables with diameter less than 20mm. Such as auto wires, communication cables and kinds of miscellaneous wires and cables. Firstly, the material is feed into the crusher and crushed into about 3-5 mm, then the granules is conveyed to the vibrating table by the suction fan. Finally, plastic and copper granules are separated by vibration and blower. The copper purity can be reach 99.9%. Greatly increased the copper profit.
1. Compact structure, Low power consumption, Stable performance.
2. Adopt totally closed production mode, good dust collector, no pollution for environment.
3. One time feeding, Single machine finished.
4. Environment protected, and low noise.
|Model||Power||Blade QTY||Cpacity||Size (mm)||Voltage||Weight|
|TMS-400||23.12kw||10 +2 pcs||150-200 kg/h||2700*1900*2300 ||customised||1600 kg|
