Welding type rail fixed devices
Welding type rail fixed devices
FOB Price:
US $10.000 / Set
Min.Order:
100 Set/Sets
Supply Ability:
5000 Set/Sets per 0
Port:
QINGDAO
Your Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Bafang
Model Number:
TG38
Product Description

Welding type rail fixed devices


Product Description

Welding type rail fixed devices:also called welded rail pressure device, welded rail fixtures,

 steel girder rail pressure control, welded plate,

 no matter how its role is only one call is pressed and fixed rail.

Beam welded to the beam typically sometimes also used in the steel plate embedded in the concrete.

 Pressure rail to prevail sets, each set includes: base, cover, wear Shaw, bolt, spring washer.

Welding type rail fixed devices standard:


Rail fixed devices applies rail model TG24 TG38 TG43 TG50 QU70 QU80 QU100 QU120

 welded rail pressure rail track is mainly used for girders fixed plant.

Installation Requirements

Complete rail joints after laying a good composite rubber plate positioned on the track adjustment and bolts,

clips and other parts in place, so that the bottom flange plate tight towel rail,

 then install plate, spring washers,

tighten the nut to the rubber platen tongue compression is about 2-3mm.

Main parameter:


Level of bolt

4.8/8.8

Cover material

ductile iron/cast steel base

Material

cast steel

Weight

1.6 KG (normal)

Match

cover, base, adjust the shaw, bolt, nut, spring washers, flat pad.

Pressure gauge

WJK - TG24, WJK - TG30

Pressure gauge shape number

light rail

Heavy rail pressure rail

WJK - TG38, WJK - TG43 WJKTG50 crane rail

pressure rail

WJK - QU80, WJK - QU100, WJK - QU120

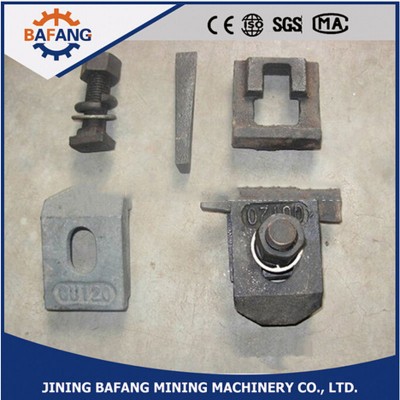

 Product photos
