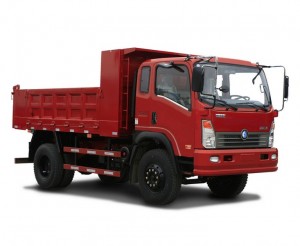

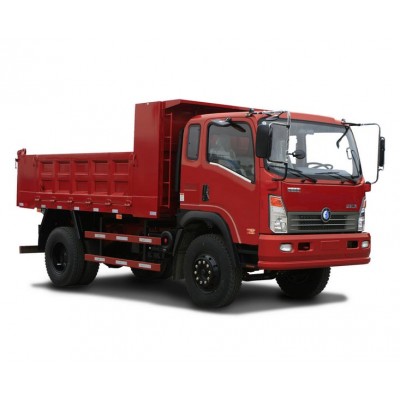

Product Description
1 The brand of SINOTRUCK is the top Chinese trucks
2 We can provide best factory’s price
3 We have a unified parts supplier to ensure quality
4 We have our own overseas after-sales team

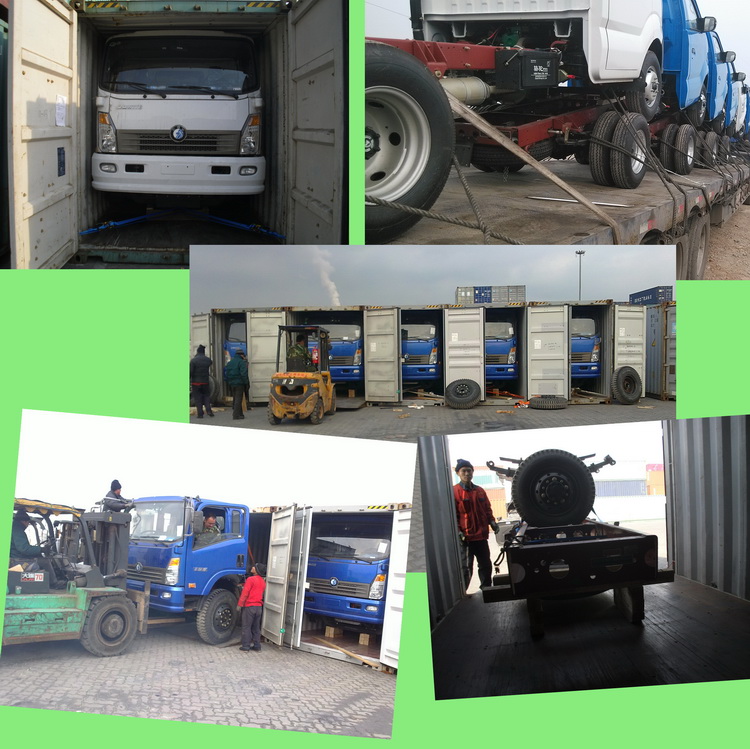

5 Quick delivery

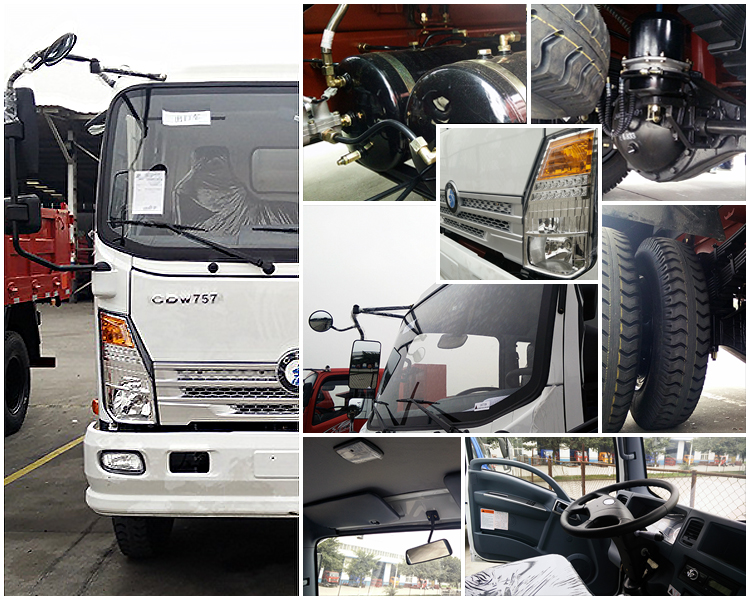

Model | 777B8B | |
Overall dimension L*W*H (mm) | 7155×2400×2960 | |
Body inner dimension L*W*H (mm) | 4700×2300×800 | |
Wheelbase(mm) | 3950 | |
Curb weight(kg) | 7450 | |
Rated payload(kg) | 15000 | |

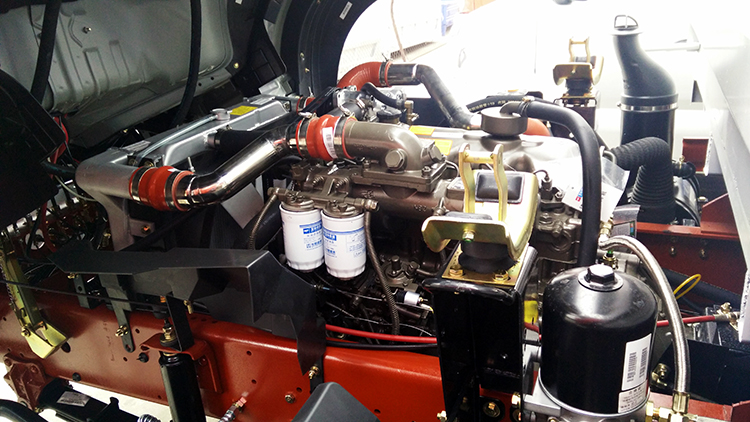

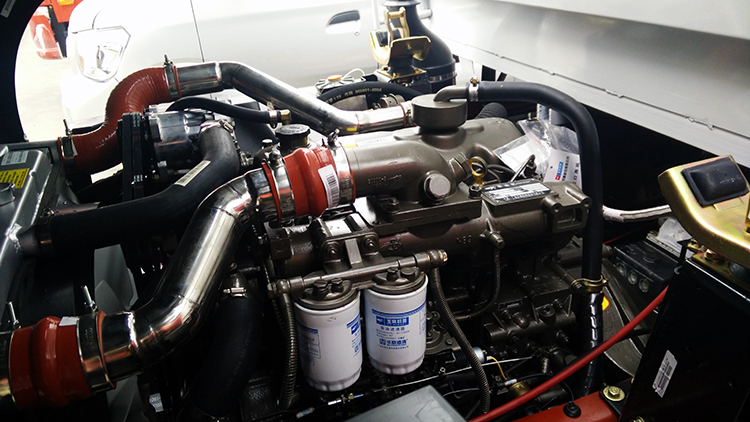

Engine | Model | YC6J190-33 |
Fuel category | Diesel | |
Type | 6 cylinders in line, intercooler, turbo-charge, Euro-II emission | |
Displacement(cc) | 6494 | |
190 | ||
Maximum torque(N.m/r/min) | 630 | |
Main performance | Maximum speed(km/h) | 90 |
Maximum climbing ability(％) | 30 | |
Fuel Tank volume (L) | 150 | |

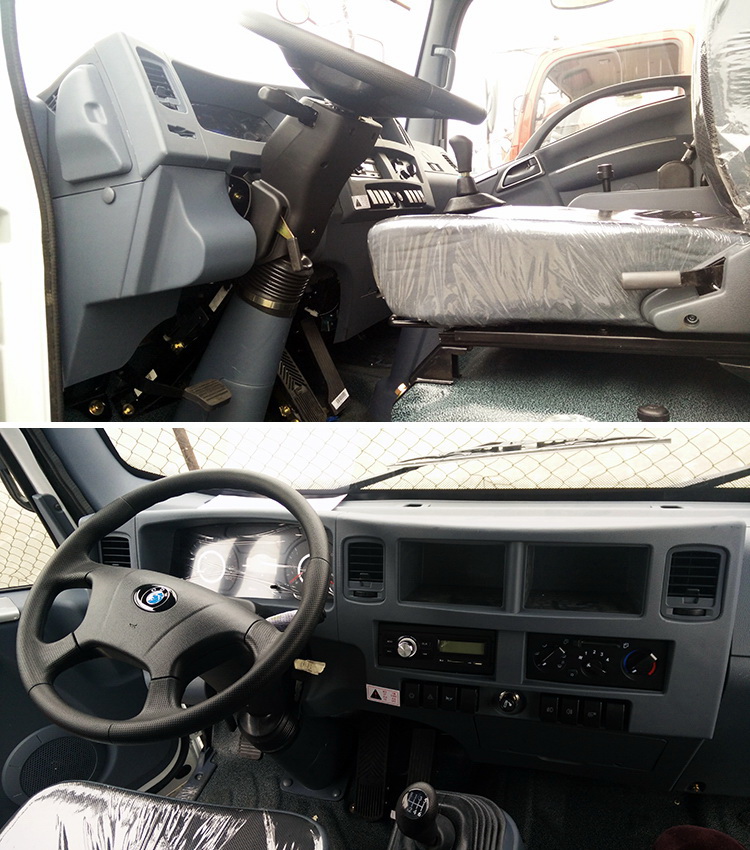

Cabin | 2080 mm extended Cabin, Radio+MP3 | |
Seating capacity | 3 persons | |
Transmission | HW90710,10 forwards & 2 reverses | |
Brake system | Dual circuit compressed air brake | |
Chassis frame(mm) | 280×10 | |
Lifting System | Front Single-plunger straight propping up hydraulic system 150×3330 mm | |
Tire | 10.00-20×7 | |
Color | White, red, blue, yellow, champagne | |
Optional | A/C, Fan heater, power window | |
Others | Power steering | |

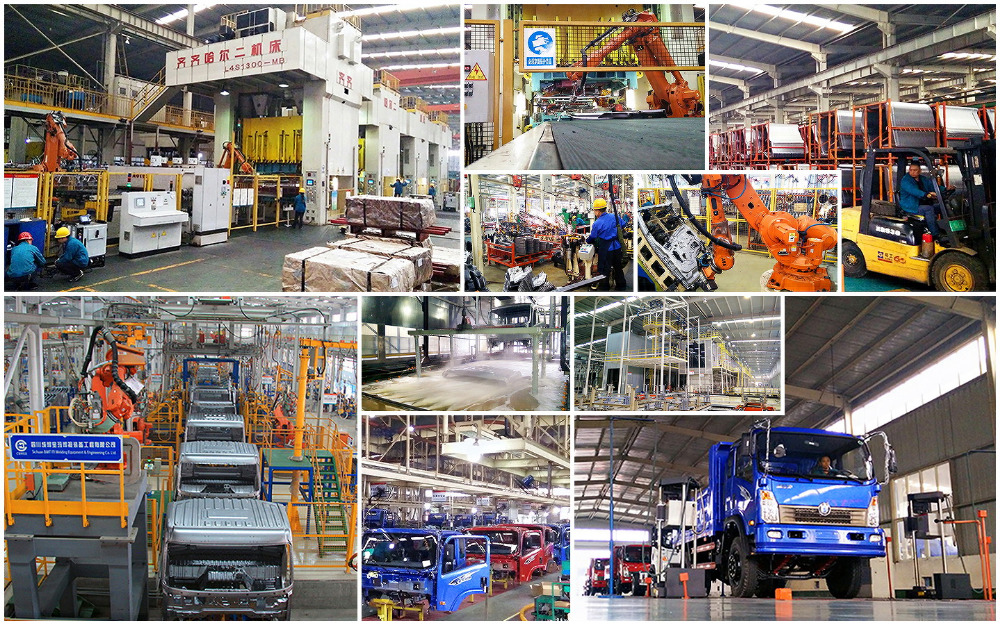

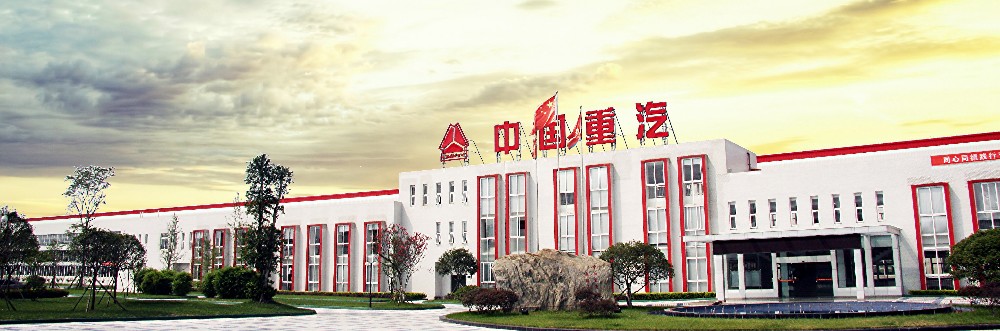

Company Information

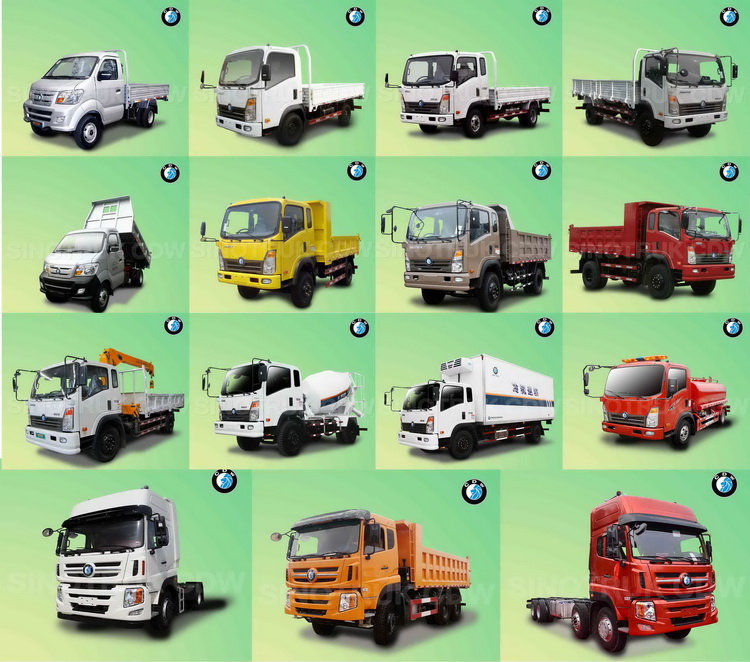

We, SINOTRUK CDW is located in Chengdu City, South-west of China, is a subsidiary of China National Heavy Duty Truck Group Co., Ltd. (CNHTC) which is one of top commercial vehicle groups and the biggest heavy truck manufacturing base with the most completed industrial structure in China. Our annual production capacity is 400,000 units, manufacture full range of trucks including heavy duty, medium duty, light duty and mini-truck commercial vehicle, from 1 ton to 40 tons, engine power from 40HP to 380HP, besides normal cargo truck and dump truck, we also produce container truck, small mixer (4 & 6 cubic meter), lorry loading crane, water and fuel tank truck, etc.
Our Services
|  |
|
Telephone: 0086-28-83679144
Fax: 0086-28-83679113
Add: Number 8, Great Wall Road, Mimu Town, Qingbaijiang District, Chengdu City, Sichuan Province, China.
Product quality protection
