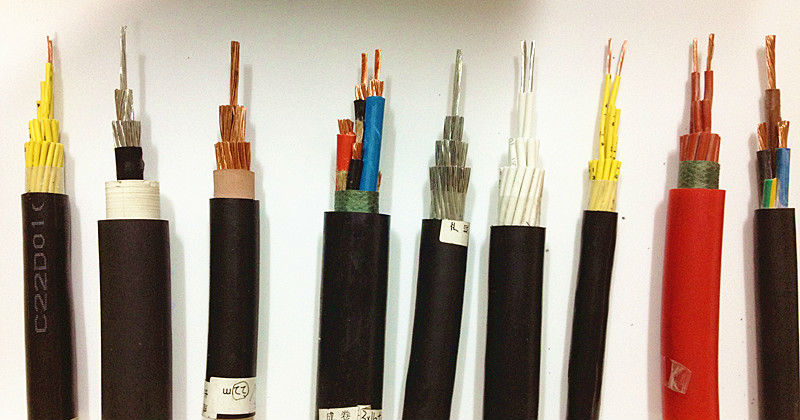

450/750V flexible rubber cable

Product Description

450/750V flexible rubber cable

Application:

This product is appli cable to the AC rated voltage 0.6/1kV and below requires frequent or oil-resistant occasion for power plant or moving lighting electricity power transmission. Product has good flexibility,ageing resistance properties.

Voltage: 450/750V and below.

Standard: IEC60332:1993

Using Features :

Silicon rubber insulation and flat cable

The working temperature of cable conductor is equivalent to insulation materials;

The minimum bending radius of cable:non-shield type cale is 6D;shield type is 8D

Silicon rubber insulation and flat cable

The long-term allowable working temperatute of cable conductor should be not more than 70oC;

The environment temperature for laying cable is below 0oC ,ordinary type cable, the bending radius is not less than 6 times of the thickness of cable, shield-type,the bending radius is not less than 10 times of the thickness of calbe

Reted Voltage 0.6/1kV Silicon Rubber Insuation Flat Cable

When laying the cable, ordinary type bending radius is not less than 6 times of the thickness of cable,shield-type bending radius is not less than 10 times of thickness of cable;

The environment temperature of the cable is -60~+180oC;

Welding Cable

The highest working temperature of cable conductor is 65oC

The minimum bending radius of cable is 4 times of the diameter.

Motor Winding Lead Flexible Cable

The minimum bending radius of cable should be not less than 6 times of cable diameter.

Compound Special Rubber Flexible Cable

The highest working temperature of the cable conductor should be not more than 80oC

The working environmental temperature of cable should be not lower than-40oC

Radio Installation Cable

The long term working temperature is 65oC;

The bending radius for the laying cable should be not less than 10 times of its diameter.

Light-type rubber sheath flexible cable

The long term working temperature of cable should be not more than 65oC;

W-type derived cable has climate-resistant and certain oil-resistant properties , so it is suitable for outdoors or occasions with oily;

The minimum bending radius of cable should be not less than 6D(D is the diameter)

Product description:

Silicon rubber insulation and flat cable

Type	Descripton	Application Temperature
YVFR	PVC insulation NBR compound sheath flexible power cable	-25~70oC
YVFRP	PVC insulation NBR compound sheath braided shield flexible power cable	-25~70oC
YFFR	NBR compound insulation NBR compound sheath flexible power cable	-25~70oC
YFFRP	NBR compound insulation NBR compound sheath braided shield flexible power cable	-25~70oC
YGG	Silicom rubber insulation silicon rubber sheath flexible power cable	-60~180oC
YGGP	Silicom rubber insulation silicon rubber sheath braided shield flexible power cable	-60~180oC
YGC	Silicom rubber insulation heavy rubber sheath flexible power cable	-35~65oC
YGCP	Silicom rubber insulation heavy rubber sheath braided shield flexible power cable	-35~65oC

KGG

Silicon rubber insulation and flat cable :

Type	Description
YVFB	Copper core PVC insulation acrylonitrile-butadiene PVC compound sheath flat cable
YVFBP	Copper core PVC insulation braided shield acrylonitrile-butadiene PVC compound sheath flat cable
YFFB	Copper core acrylonitrile-butadiene PVC compound insulation acrylonitrile-butadiene PVC compound sheath flat cable
YFFBP	Copper core acrylonitrile-butadiene PVC compound insulation braided shield acrylonitrile-butadiene PVC compound sheath flat cable

Reted Voltage 0.6/1kV Silicon Rubber Insuation Flat Cable

Type	Description	Application Temperature
YGGB	Copper core silicon rubber insulation silicon rubber sheath flat cable	-60~180oC
YGGBP	Copper core silicon rubber insulation braided shield silicon rubber sheath flat cable	-60~180oC
YGCB	Copper core silicon rubber insulation heavy duty rubber sheath flat cable	-40~65oC
YGCBP	Copper core silicon rubber insulation braided shield heavy duty rubber sheath flat cable	-40~65oC
YGFB	Copper core silicon rubber insulation acrylonitrile-butadiene PVC compound sheath flat cable	-20~70oC
YGFBP	Copper core silicon rubber insulation braided shield acrylonitrile-butadiene PVC compound sheath flat cable	-20~70oC

Copper core silicon rubber insulation silicon rubber sheath control flexible cable

Type	Desscription
KGG	Copper core silicon rubber insulation silicon rubber sheath control flexible cable Copper core silicon rubber insulation silicon rubber sheath control flexible cable
KGGP	Copper core silicon rubber insulation silicon rubber sheath braided shield control flexible cable

Welding Cable
