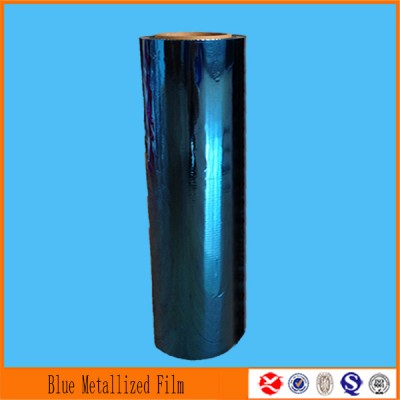

bule plastic pet metallized plastic film
Substrate material: PET film
Thickness: 8 micron, 10, 12, 15, 23,36,100,125,150,175 microns
Processing method: vacuum metalized
Color : Silver, Gold, Matte Silver, Matte Gold, Color, red, green
Max Width : 100-2100mm
Metallized PET film | ||||
Properties | Units | Typical Values | Test Methods | |
Thickness | μm | 12 | DIN53370 | |
Tensile Strength | MD | MPa | 218 | DIN53455-6-5 |
TD | 231 | |||
Elongation at Break | MD | % | 111 | DIN53455-6-5 |
TD | 114 | |||
Coefficient of Friction | F/F-μs | - | 0.48 | DIN53375 |
F/F-μk | 0.48 | |||
Heat Shrinkage | MD | % | 2.0 | BMSTT11 |
TD | 0.8 | |||
Thickness of Aluminum Layer | Ω/ | 2.0 | Resistance Tester | |
Optical Density | OD | 2.0 | MACBETH TD904 | |
Adhesion of Aluminum Layer | % | 100 | 3M Gummed Tape | |
Tolerace of Aluminum Layer | % | 6 | Resistance Tester | |
Gloss | % | 132.6 | ASTM D2457 | |
Surface tension | Dyne/cm | 60 | ASTM D2578 | |
Application
Features
1) High strength
2) Good printability
3) Good barrier performance
4) Low oxygen permeability
5) Non-splash aluminum, wrinkle-free, no tramlines or smears
6) wide application range
Product quality protection
