Greenhouse Roofing and Siding Materials Polycarbonate Sheets Triple Wall Panels
Greenhouse Roofing and Siding Materials Polycarbonate Sheets Triple Wall Panels
FOB Price: US $1 / Piece
Min. Order: 1 Piece
Min. Order FOB Price
1 Piece US $1/ Piece
Supply Ability:
0 per
Port:
Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description
Basic Info
  • Model NO.: GLPC-010075822

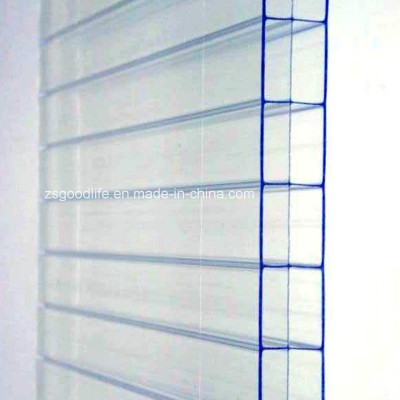

  • Product Name: Polycarbonate Multi Wall Sheet
  • Feature: Inhibiting Condesation
  • Specification: 2.1x5.8m/2.1x6m /2.1x12m
  • HS Code: 39206100
  • Size: 2.1m*5.8m/11.8m
  • Light Transmission Rate: 88-92%
  • Trademark: Goodlife
  • Origin: China
Product Description

1. Specification:

  • Item Name:  Polycabonate Multi wall sheet
  • Thickness:  10-20mm
  • Size:  Max width: 2.1m, no limit on length
  • Color:  Clear, Bronze, Blue,  Green, White, etc.
  • Packing:  both sides covered with PE protective film.
  • MOQ:  1000m2 / color / thickness for production.
  • Delivery time:  within 10-15 days.

2. Advantage:

  • Material:  Makrolon PC resin from Bayer in Germany & Lexan resin from Sabic.
  • Machine:  UV-PC coextrusion lines from OMIPA in Italy.
  • Certificate:  1) China Well-Known Trademark.
                                    2) ISO 9001:2008 & ISO 14000.
                                    3) the standards for Russian building.
                                    4) ASTM & UL in USA.
                                    5) ROHS certificate from SGS, etc.
  • UV protection: UV co-extrusion.
  • Capability: 18,000.00 tons/year.
  • Guarantee: 10 Years guarantee.


Greenhouse Roofing and Siding Materials Polycarbonate Sheets Triple Wall Panels

3. Features:

  • High transparency
  • UV-Protection
  • Light Weight
  • Impact Strength
  • Inhibiting Condensation
  • Thermal Insulation
  • Sound Insulation
  • Flame Resistance
  • Easy Installation
  • Enviromental Friendly


4. Applications:

  1. Sky light system.
  2. Roof light for buildins, hotel, villa, stadium, school,hospital,etc.
  3.  High-way Sound absorption.
  4.  Swimming pool & greenhouse roof.
  5.  Subway exits, parking lots, garage tents, bus-stops, rain tents, hallway tents,etc.
  6. Robbery counters in banks, jewelry counters and police Anti-riot shields.
  7. Safety roof light for airports and plants.
  8. Sign boards for advertisement, Sky-lighting cover.
  9. Housing glasses, indoor partitions, sight window, terraces and shower doors.
  10. Equipment cover, LED display, Lighting, Basketball backboard, Sightseeing Elevator.
  11. Using for control panel for Electronic operation control, Touch pad, Electric water heaters, Electric touched heaters, etc.

5. Installation:
      (1) Flush type installation

  1. Cut off protective films for 5 to 10mm before inserting sheets to the support frame, because the protective film would cause inefficient adhesive between tamping and PC sheets.
  2. Since the expansion and contraction degree of PC sheets, are different from that of medal frames, as well as PC sheets are flexible and taking air pressure, therefore, appropriate insertion, reserving space for expansion and shrink because of temperature changes, and choosing suitable thickness of PC sheets are necessary.
    General sheet should be inserted into fixed frame for over 25mm, with at least 2 ribs installed into the fixed  zone. 3mm place will be reserved for expansion or shrinkage. (Expansion ratio: 0.065mm/m)


Greenhouse Roofing and Siding Materials Polycarbonate Sheets Triple Wall Panels

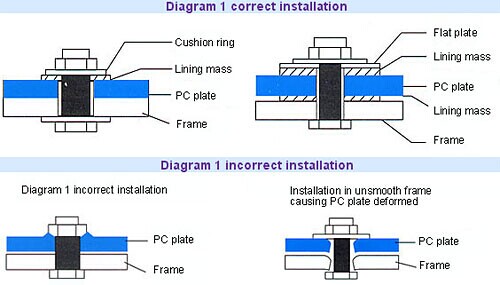

      (2) Screw installation

  1.  When installed with screw, all rivet holes should be larger to reserve space for expansion and contraction. Usually, the holes should be larger than that of the bolt or rivet stems by 50%" so as to avoid expansion or shrinkage.
  2.  when drill, and cover the exposed portion with silicone compound to prevent detergents permeating which brings damage to pc sheets, and avoid gradual cracks.
  3.  Rivet heads should be larger than the stems by 2 times. Use gaskets or washers to avoid the rivet heads touching pc sheets, and reduce the pressure.
  4. Do not screw it too tightly.
  5.  Do not use PVC gaskets.
  6.  The bending part should be avoided using screw for cold bending process.


Greenhouse Roofing and Siding Materials Polycarbonate Sheets Triple Wall Panels


6. Our Factory:
Found in 2000, we GOODLIFE Specialize in manufacturing Polycarbonate Multi-wall sheet, Solid sheet, Embossed sheet, Corrugated sheet and other Fuction products, which are suitable used for building roof, greenhouse, sign board, electrical parts etcwith years of experience of extrude technology, so far export to more than 100 countries, and get a high reputation.


CharacteristicsUnitPolycarbonate Twin-sheet DataPolycarbonate Triple-sheet Data
Impact StrengthJ/m2.1 ~ 2.32.4 ~ 3.5
Light Transmission%40 ~ 8225 ~ 75
Specific Gravityg/cm 31.21.2
Coefficient of Thermal Expansionmm/m. ºC0.0650.065
Service TemperatureºC-40ºC~ +120ºC-40ºC~ +120ºC
Heat ConductivityW/m 2 .ºC3.0 ~ 3.92.2 ~ 3.2
Tensile StrengthN/mm≥60≥60
Flexural StrengthN/mm 2100100
Modulus of ElasticityMpa24002400
Tensile Stress at BreackMpa≥65
Elongation at Break%>100
Effect of Sound proof
20 decibel decrease for 10mm Twin-wall 25 decibel decrease for 16mm Thiple-wall
