High-Quality a Type Screen Pinion Used for Modern Agricultural Greenhouse
High-Quality a Type Screen Pinion Used for Modern Agricultural Greenhouse
FOB Price: US $8.06-10.48 / Piece
Min. Order: 100 Pieces
Min. Order FOB Price
100 Pieces US $8.06-10.48/ Piece
Supply Ability:
0 per
Port:
Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description
Basic Info
  • Model NO.: A Type
  • Size: Large
  • Layer: Single
  • Stroke: 79mm/Revolution
  • Specification: National Standard, Standard
  • Preferred Payment Term: Tt
  • Zinc Coating Thickness: in Accordance with The Standard
  • Operation: with Rack and Other Parts
  • Type: Production Greenhouse
  • Cover Material: Hot-DIP Galvanized
  • Speed Ratio: 1.8:1
  • Port of Loading: Qingdao
  • Range: Screen Pinion
  • Preferred Trade Term: EXW, FOB
  • Application: Greenhouse Screen System
  • Origin: China
Product Description
A Type Screen Pinion

      This kind of screen pinion is in high quality and better material. It can betterly play a role in

driving the rack in screening system without any other difficulties.  We can provide screen pinion

that you want. Its speed ratio and stroke are comparatively in accordance with the quality

standard. Besides, it suitable for large area greenhouse shading.


High-Quality a Type Screen Pinion Used for Modern Agricultural Greenhouse

     Screen system has high efficient shading performance and can shade over sunlight to prevent crops from burned by strong sunlight. Because of stopping large amount of sunlight into the greenhouse, it can efficiently decrease the acculation of inside heat. Besides, it can satisfy different demand of different crops for sunlight through choosing curtains with different shading rate. Therefore, screen system has the function of adjusting sunlight and cooling. Moreover, it has the function of preventing hail. Today, it mainly depends on the motor intelligent control to realize open and close of itself.

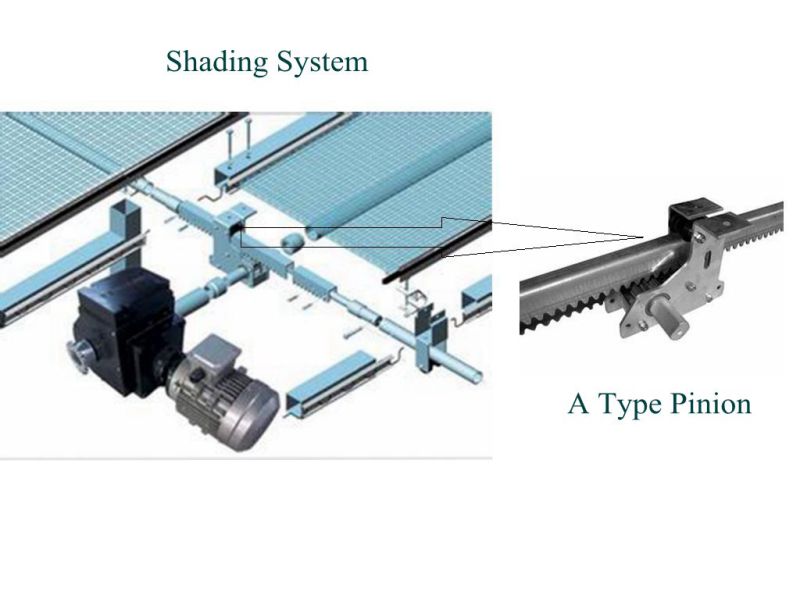

     A type screen pinion working with the relative rack is often chosed as the driving ways for

screen driving system. It runs stable and reliable. It can help the whole greenhouse realizing

openning and closing freely. The following form indicates clearly all of these.


Function: driving the rack in screening system.

A Type Pinion and The Other Important Parts in Screen System


ItemNameSpecificationApplication RangeNotes
1Driving Shaft1″,5/4″
2Gear Motor Stroke: 5.2rpm
3Chain Coupling1″,5/4″1″,5/4″Driving Shaft
4Welding Joint1″,5/4″1″,5/4″Driving Shaft
5A Type Pinion BracketSpeed Ratio=1.8:1
6Rack Stroke 3~5m
7Elastic Round Pins6×28mm
8Screen Rack-Pulling Rod Joint27,3227 Pulling Rod32 Pulling Rod
9BoltM8
10Pulling Rod27×1.5 mm32×1.5mm
11Support WheelSingle or Double Wheels
12Six Head Self Drilling ScrewsST5.5×25
13Pulling Rod-Guide Bar Connecting Piece27mm,32mm27 Pulling Rod32 Pulling Rod
14T Type BoltM6×75(Anti-release Nuts)
15Driving Edge Aluminum Profile
16Spring2.0mm Plastic Coated,L=2m Fixing Shading Curtain
17Shading or Insulation Curtain
18A Type Pinion Bracket Pad 46.5×3
19BoltM8


Product Advantages:

1. Quality assurance, reasonable price;


2. High production accurancy;

3. Premium brand, reliable quote.


About Us

      The products of Jinxin Greenhouse have high quality and favorable price, with high-quality

materials, superb technology and complete types, which are in accordance with the National

Standard.  The products is in high production accuracy, and they have good performance and a

 long servicing life. We sell our products to the world and receive the praise and reliance from a

majority of customers, attracting many new customers. The products have been exported to

US, the United Arab Emirates, India and other countries, leaving an excellent impression to

foreign customers. The company's construction team is a team with high quality and strong

professional, and has successfully constructed intelligent greenhouse, Venlo glass greenhouse,

vegetable and flower greenhouse, and many other projects.


Pay Attention: about the price, we can negotiate together.
