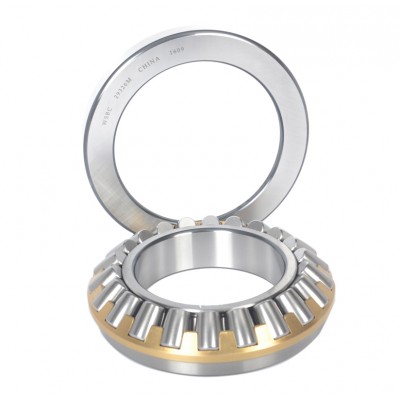

Spherical roller thrust bearings 29317E
Spherical roller thrust bearings 29317E
Supply Ability:
0 per 0
Port:
Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
WSBC
Model Number:
29317E
Packaging & Delivery
Wooden case
Product Description
Boundary dimensions
(mm)
Load ratings
(KN)
Limiting speeds
(r/min)
Mass
(kg)
Bearing NO.
dDHCrCorGreaseoilWSBC
85150393801060240040002.7529317 E

   Spherical roller thrust bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length.Depending on their series and size, Spherical roller thrust bearings are manufactured to two basic designs: bearings with no designation suffix and E design bearings.Bearings with no designation suffix are fitted with a machined prong-type brass cage as standard ,Bearings with an E designation suffix have larger rollers and an optimized internal design for increased load carrying capacity . These type bearings features are Long service life, high reliability, reduced maintenance and the ability to down-size .In addition, the ability to accommodate very heavy axial loads or heavy combined loads make spherical roller thrust bearings indispensable in many applications .

   WSBC 29317 E bearings are widely used in Metalworking ,Plastics,Marine,Industrial gearboxes,Material handling,bridges, cranes, wind turbines, hydraulic and electric motors . If you want to know more about WSBC 29317 E, welcome you contact us freely .
