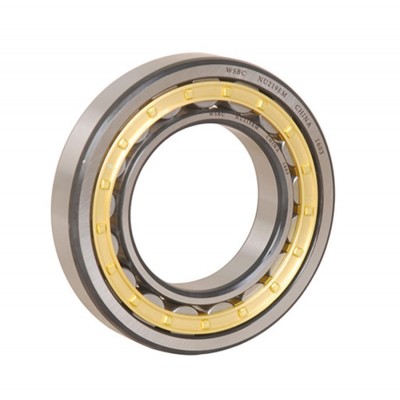

Single row cylindrical roller bearings NU202E
Single row cylindrical roller bearings NU202E
Supply Ability:
0 per 0
Port:
Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
WSBC
Model Number:
NU202E
Packaging & Delivery
Wooden case
Product Description


Boundary dimensions
(mm)
Load ratings
(KN)
Limiting speeds
(r/min)
Mass
(kg)
Bearing NO.
dDBCrCorGreaseoilWSBC
15351112.510.222000260000.047NU 202 E

    Single row cylindrical roller bearings are separable, i.e. the bearing ring with the roller and cage assembly can be separated from the other ring. According to the difference in the configuration of the flanges , we can supply NU type - have two integral flanges on the outer ring and no flanges on the inner ring. N type -have two integral flanges on the inner ring and no flanges on the outer ring.NJ type -have two integral flanges on the outer ring and one on the inner ring.NUP type-have two integral flanges on the outer ring and one integral flange and one non-integral flange i.e. a loose flange ring, on the inner ring. Supply reinforced structure (suffix E) with different cage , polyamide , steel and brass cage . Surely, we can do customization as per customer requirement .

   WSBC NU 202 E bearings are widely used in motors, automobile, gearbox,machine tools ,constuction machinery and other industries . If you want to know more about WSBC NU 202 E, welcome you contact us freely .
