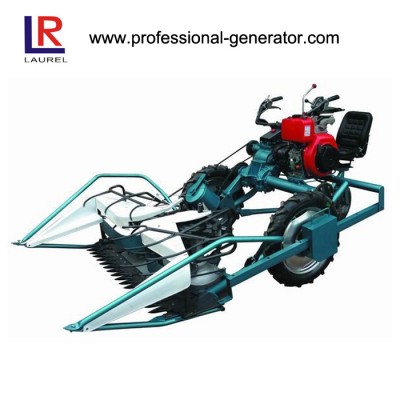

Wheat Reaper Binder Machine HarvesterFunction:LMS-140 Reaper is a small harvesting machine which used for cutting the crops straw, then let them fall down tidily to the field in one line as a result of easy sun-cure. This machine operates simply and comfortably and it is easy to work on a large area for a long time.
Suitable grain:For all kinds of growing crops, such as wheat, rice, buckwheat, small fennel, alfalfa, soybean, forage grass, chili, reeds, etc.
Demanded plant:Crop diameter < 2 cm, plant height: 20-180 cm (Within this range, machine functions better.)
Technical Data:| MODEL | LMS-140 REAPER BINDER |
| Overall dimensions;(L*W*H) | 3700*1950*1200mm |
| Cutting width | 140cm |
| Demanded plant height | ≤1.8m |
| Stem diameter | Max 40cm general 20cm
(one spring can be adjusted) |
| Ground clearance | 8-10cm
(2-3cm once the protector block removed) |
| Weight | 500kg |
| Working Capacity | 1acre/hr |
| Engine type | Singer-cylinder,vertical,4-storke,
air-cooled,direct-injection diesel. |
| Displacement | 456cc |
| Continuous output:hp(kw) | 10.5(7.7) |
| Max output :hp(kw) | 12(8.8) |
| Fuel consumption(g/kw.h) | 280 |
| Horse Power | 10.2(8.8kw) |
| Compression ratio | 22:1 |
| Starting systerm | Electric |
| Fuel tank capacity(L) | 5.5 |
| Lub.oil capacity(L) | 1.65 |
| Continuous working time(h) | 2.5 |
| Cooling systerm | Forced air |
| N.W. | 500kg |
The first and sole one who adopts shaft-driving transmission and whole aluminum transmission case system in domestic market; lightest weight compared with other similar machine , easy to carry and operate, suitable for different terrain and slope; extremely low fuel consumption; adjustable cutting height ; optional reaper attachment 90 and 150cm; rubber wheel or iron wheel available depends on the field ; convenient operation with R-N-F clutch system, suitable for all kinds of people; wide range of operation; awards four national patents.
Our Services:1.7*24 online EMAIL service.
2.100% QC inspection Before Shipment.
3. Competitive price.
4 .Stable cooperative suppliers.
5. OEM as customers' request.
6. Warehouses available in Guangzhou, Shanghai, Chongqing and main port of China.

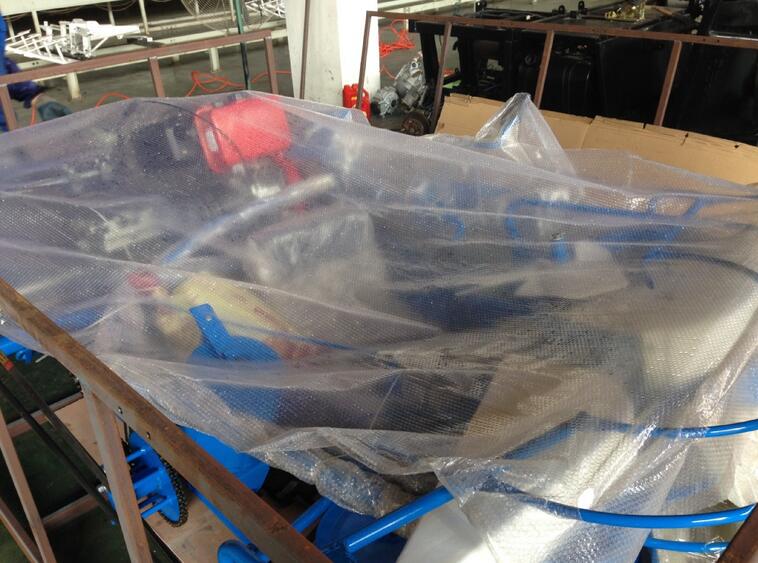

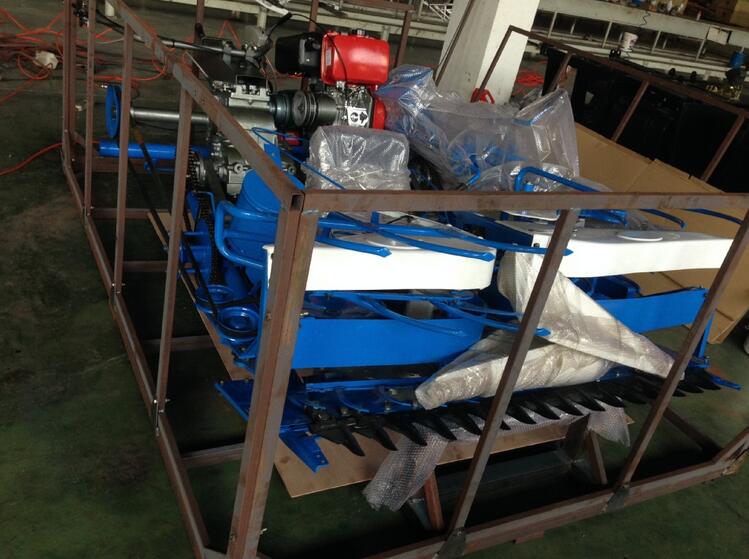

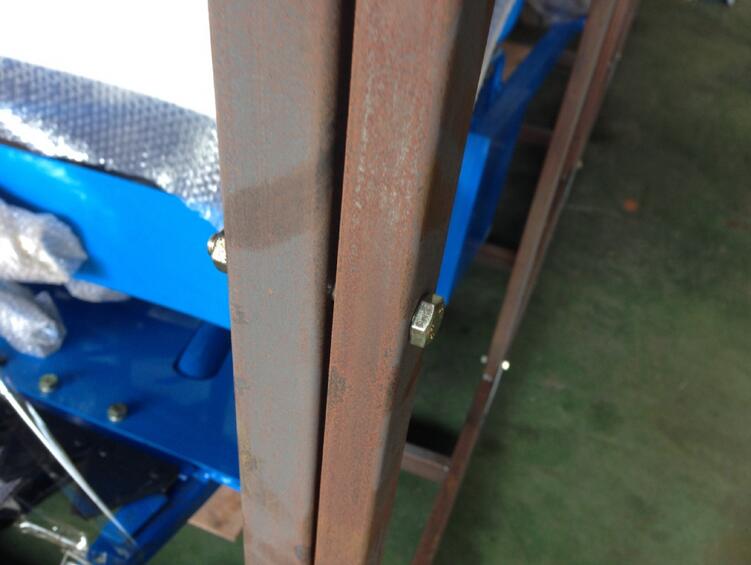

Packing:![6.5HP to 9HP Gasoline Wheat Reaper Binder Machine]()
![6.5HP to 9HP Gasoline Wheat Reaper Binder Machine]()
![6.5HP to 9HP Gasoline Wheat Reaper Binder Machine]()
