Vertical 4-stroke Farming Mini Power Tiller,Rotary Tiller Features:
1.Quality Engines
Laurel tractors employ a full range of quality, high-performing engines.
2. Comfortable, easy to use, and extremely versatile
Laurel's anti-vibration handles are comfortable, easy to use, and extremely versatile. Six vertical height settings and side-to-side adjusting allows the operator to easily find an ideal height setting and the option to work from the side.
3.Easy-to-use adjustable depth bar
The depth bar makes it easy to control the depth and speed of the tiller. This helps to improve the performance by working the soil more thoroughly. Easy to adjust, with no tools needed.
4.PTO Applications Available
All Laurel Power tractors have an independent power take off (PTO),allowing attachments to be turned on and off independently of the tractor wheels. When mounted, Laurel attachments interlock with the three jaws of the PTO shaft, and the engagement is internal to the oil bath tractor transmission.
| Model | LM6.3-135FC-Z | LM4.4-7100FC-Z | LM4-105FC-Z |
| Tiller | Transmission | Gear Transmission |
| Clutch | Friction Disk |
| Gear Shifting | -1,0,1,2 |
| Tilling Depth(mm) | 150~300 |
| Tilling Width(mm) | 1350mm 1000mm 1050mm |
| Productivity(hm2/h) | ≥0.05 ≥0.04 ≥0.04 |
| N.W/G.W(kg) | 128/139 | 62/73 | 118/129 |
| Engine | Engine Model | LE186FC | LE173FC | LE1178FC |
| Engine Type | Single cylinder, vertical 4-stroke, air-cooled |
| Bore x stroke(mm) | 86x70 | 73x58 | 78×62 |
| Fuel Tank Capacity(L) | 3.6 | 3.6 | 3.6 |
| Displacement(mL) | 406 | 248 | 296 |
| Max. Power Hp(Kw)/rpm | 6.1(4.5)/3600 | 6.1(4.5)/3600 | 6.1(4.5)/3600 |
| Starting System | Recoil start(Electric start optional and Recommended) |
| Others | Package size(mm) | 1030x545x830 | 975x535x760 | 1030x545x830 |
| Qty/20' GP/ 40' GP/ 40' HQ | 50/100/140 units | 66/132/180 units | 50/100/140 units |
| Min. order | 1 |

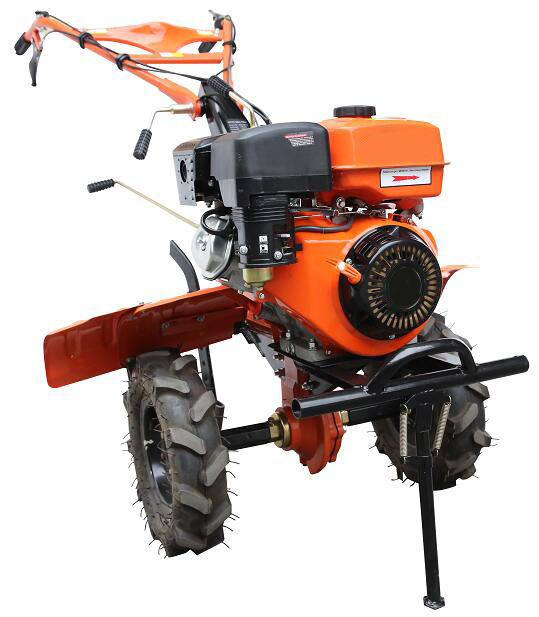

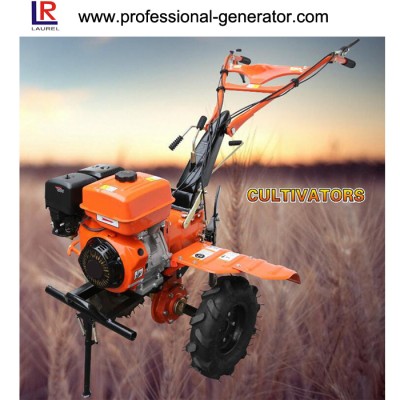

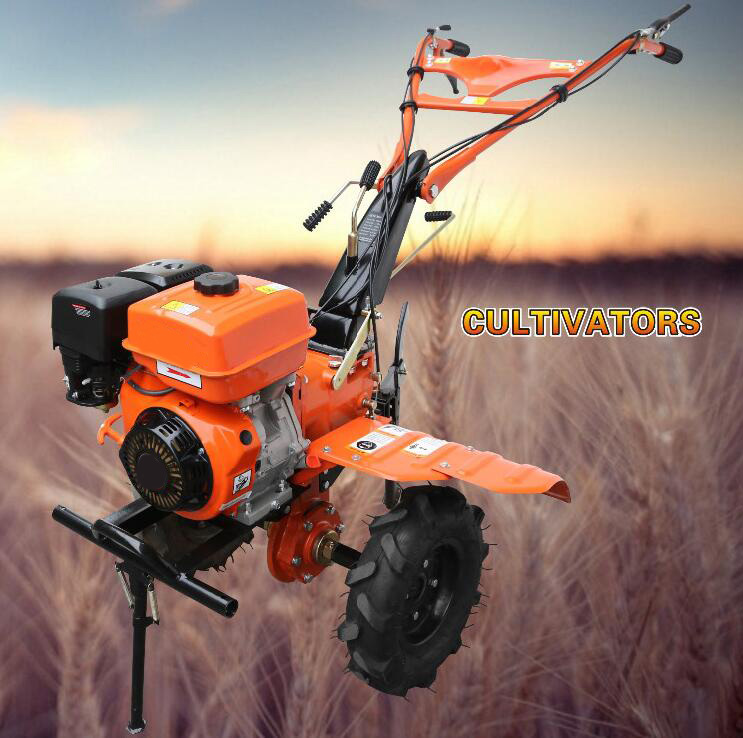

Tiller Pictures:![Vertical 4-Stroke Farming Mini Power Tiller, Rotary Tiller]()
![Vertical 4-Stroke Farming Mini Power Tiller, Rotary Tiller]()
Our Services:1.7*24 online EMAIL service.
2.100% QC inspection Before Shipment.
3. Competitive price.
4 .Stable cooperative suppliers.
5. OEM as customers' request.
6. Warehouses available in Guangzhou, Shanghai, Chongqing and main port of China.
Why choose us?Company's ProfileGuangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or diesel generators, small power gasoline or diesel engines, gasoline water pumps and other machinery products, as well as architectural glass and other building materials. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee ServiceWe deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty PeriodWe will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser
