Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: LMWG4.0-105FQ
- Application Field: Agriculture, Livestock, Aquaculture
- Power Source: Diesel
- Drive Type: Gear Drive
- Color: Green
- Trademark: Laurel
- Specification: CE, ISO, OEM
- Type: Micro-Farming Machine
- Farming Policy: Dry Cultivating Machinery
- Operation: Soil Preparation Machinery, Continuous Running Operation
- Certification: SGS, ECE, EU, CE
- Tilling Width: 1250mm-1450mm
- Transport Package: Standard Package
- Origin: Guangdong China
Product Description

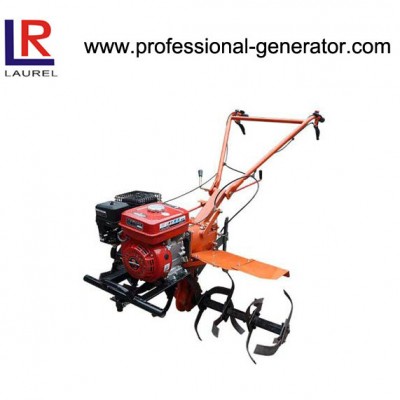

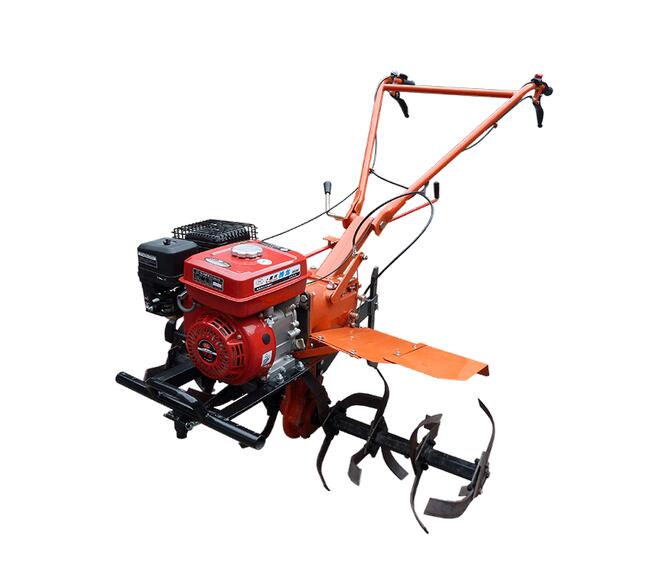

Gasoline Disc Plough Rotary Cultivator Power Tiller![Gasoline Disc Plough Rotary Cultivator Power Tiller]()
Condition: New
Type: Farm Cultivator
Power Type: Gasoline
Power(W): 4.8KW ~6.6KW
Certification: CE ISO
Use: Argriculture
Weight: 84kg
Dimension(L*W*H): 1000x530x800 mm
After-sales Service Provided: No overseas service provided
Color: red, Black
Start system: Recoil
Fuel Capacity: 3.5~5.5L
Clutch: Built-in or external Tentioned Clutch
Max Power: 4.8KW ~6.6KW
Transmission: Belt or Gear

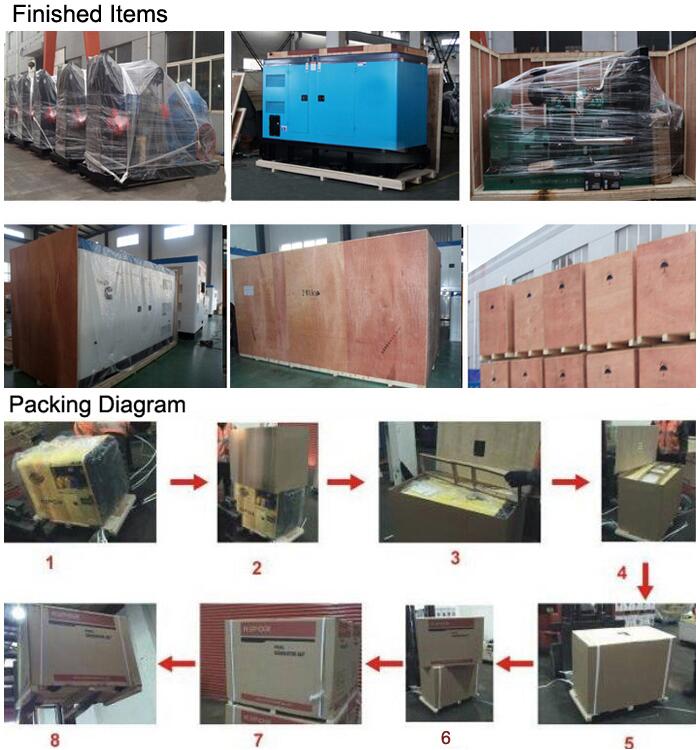

Packing: Hard carton box with metal framework inside
Engine: 6.5HP ~7.0HP
Speed: 3600
Gears: 2 forwarders and 1 reverse
4 Stroke Gasoline Engine Driven Agriculture Tiller For Sale
1,Product Features.
Gasoline or diesel powed
Belt transmission or gear transmission
External clutch or built-in clutch
100% parts supply
ISO, CE Certificates
One Year Warranty
OEM available
2,Product Parameters:
Name | 4 Stroke Gasoline Engine Driven Agriculture Tiller |
| Model | LMWG4.0-105FQ |
| Engine | 170F/P,7HP |
| Bore*Stroke(mm) | 70*56 |
| Max Power(kw/rpm) | 4.8/3600 |
| Fuel capacity(L) | 3.6 |
| Fuel Type | Gasoline |
| Engine Oil Capacity(L) | 0.6 |
| Gearbox oil capacity(L) | 2.5 |
| Fuel consumption(g/kw.h) | ≤340 |
| Start system | Recoil start |
| Work width(mm) | 900-1050 |
| Work width(mm) | ≥100 |
| Gears | 2 forward & 1 reverse |
| Transmission Type | Gear transmission |
| Clutch Type | Built-in clutch |
| Packing size(mm) | 1000x530x800 |
| Packing Structure | Hard carton box with metal framework inside |
| N.W(kg) | 84 |
| G.W(kg) | 105 |
| Standard configuration | 23mm dry field blades(2+1 type;24pcs),350-4 tires |
| Optional configuration | Paddy field blades,30pcs/32/40pcs dry field blades,
anti-tangling blades ,side plate ,tilling ket etc. |
| Blades connections/structures | 2+1+1;2+2;3+1+1;3+2 |

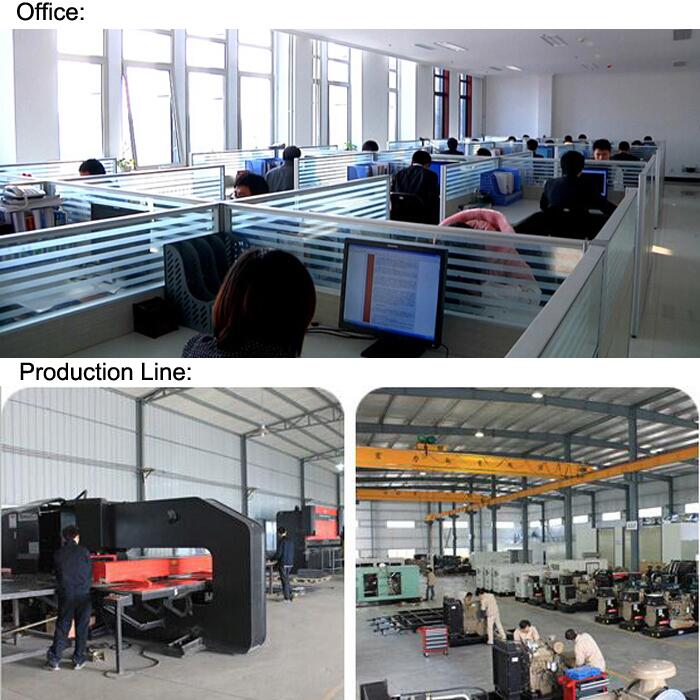

Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or
diesel generators, small power gasoline or diesel engines, gasoline water pumps and other
machinery products, as well as architectural glass and other building materials. We have obtained
the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service.
We ensure that all our original purchasers get Laurel & Honesty products guarantee under this
warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser
