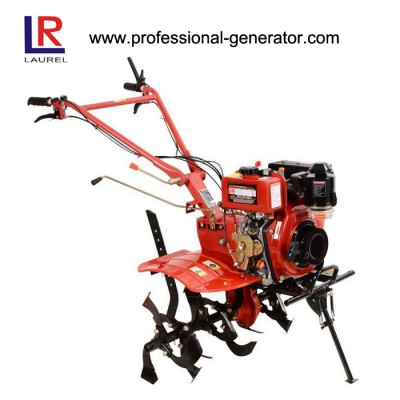

9HP Diesel Power Rotary Cultivator
Specifications:
As a rotary tiller, it can do rotary tillage and weed work both in paddy and dry fields with higher efficiency and better performance.
Application scope:
dry fields,paddy and dry fields . And it can also sow and fertilize and plough when conncted with corollary equipment like sower and fertilizer ,reversible plough ,ect
Product Descriptions:
| Model | LM351 |
| Diesel engine | 186FA, 4-stroke, forced air cooling, single cylinder |
| Displacement | 406cc |
| Gear shifting | -1,0,1,2 (2 forward, 1 back) |
| Max. power | 9.0HP, 3600rpm |
| Working width | 80-130cm |
| Working Depth | 15-30cm |
| G.W./N.W. | 160kg/117kg |
| Blade: 38pcs |
| Connectiong mode | Direct |
| Transmission | Gear |
| Qty. of each packing | 1 set |
| Carton size | 101x57x77cm |
| Load qty.(20'/40'/40'HQ) | 117/234/312 pcs |
Assembly Line:
Firstly,assemble the shift gearbox;
Secondly,assemble the walking box;
Thirdly,assemble the chasis;
Fourthly,assemble gasoline engine and handle bar to the farm machinery;
Fifthly,assemble the wheel of tiller machinery.
Advantages:
1. Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the Agricultural machine business, big advantage for re-sell also.
2. Quick coupling system and compatible attachments enable the machines can do many different kind of work. you can find all what you need here in our factory.
3. Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.
Why choose us?
Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or diesel generators, small power gasoline or diesel engines, gasoline water pumps and other machinery products, as well as architectural glass and other building materials. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser
