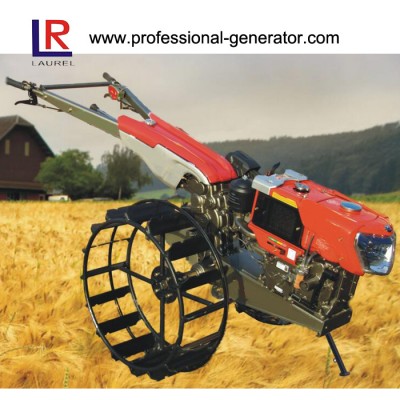

8HP to 14HP Farm Walking Tractor Cultivator
Features:
1.Two Wheel Design
2.Easy to operate
3.Diesel engine power
4.Max.output:8-14HP
Specifications:
| Dimensions of Tractor | Width | 1050/1200mm |
| Length | 2960mm |
| Height | 1220mm |
| Diameter of engine pulley | | 140mm(5.5in) |
| Diameter of transmission pulley | | 180mm(7in) |
| Diameter of cage wheel | | 800mm |
| Diameter of rubber tire | | 5.00-12in |
| Diameter of towing pin | | 26mm |
| V-belt | Length | 1981mm |
| Quantity | 2 |
| Brake system | Small-scale braking |
| Clutch type | Dry multiple disc clutch |
| Lubricating oil in transmission | Type | SAE No.90 |
| Capacity | 5.5-6L |
| Tractor max. speed | | 23.5km/h |
| Transmission ratio | Low speed 1st Gear | 44:1 |
| Mid speed 1nd Gear | 23:1 |
| High speed 3rd Gear | 8:1 |
| Reverse Gear | 56:1 |
| Tractor weight (without engine) | | 210kg |
| Diesel engine max.output | | 8-14HP |
