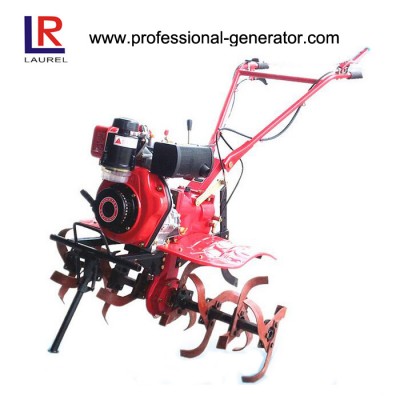

5HP Mini Rotary Tiller with Diesel Engine
Features:
High Quality
Competitive Price
Color Optional
OEM Accepted
ISO, CE, GS Certificates
One Year Warranty
Detailed parameters:
| Tiller Model | LM4.05 |
| Diesel engine | Engine model | 173F(diesel engine) |
| Engine type | Single cylinder, Forced air cooling, 4-stroke |
| Bore×Stroke(mm) | 73×59 |
| Displacement(ml) | 247 |
| Compression | 21:01 |
| Starting system | Recoil start |
| Fuel tank capacity) L | 2.5 |
| Oil volume) L | 0.75 |
| Rated rotary speed(r/min) | 3600 |
| Rated output(kw) | 4.05 |
| | Blades | 4 pcs 3 groups |
| Tilling parameter | Tilling scope (mm) | 900 |
| Tilling depth(mm) | ≥100 |
| Gear Shifting | Reverse, 0, 1, 2 |
| Driving Mode | Gear |
| Fuel consumption (Kg/kw.h) | ≤30 |
| Working performance( hm2/h.m) | ≥0.04 |
| Revolutions per minute of revers gear | 56 |
| Revolutions per minute of slow gear | 81 |
| Revolutions per minute of fast gear | 124 |
| Tiller details | Handle horizontal adjustment | angle ±90° |
| Handle vertical adjustment | angle 60° |
| Left Handle assessories | Clutch and stall switch |
| Right handle assessories | Throttle and reverse handle |
| Transimission type | G3 type |
| Transimission material | Aluminum(uper)+cast iron(down) |
| Axle Diameter | φ23 |
The Main Features:
Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field operations. It can be completed to do farm works of rotary tillage, weeding, deep ploughing, ridging, ditching, sowing, fertilizing, spraying chamicals etc. equipped with reference supporting facilities.
Micro tillage machine uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation and spray operations, but also tow the trailer for short-distance transport.
Why choose us?
Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or diesel generators, small power gasoline or diesel engines, gasoline water pumps and other machinery products, as well as architectural glass and other building materials. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser
