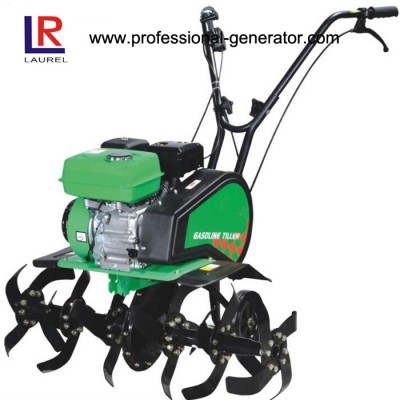

7HP Mini Gasoline Tiller for Garden
Specifications
Gasoline rotary tiller
1)7HP gasoline engine
2)High porformance ,Low fuel consumption
3)Fast delivery, low price,high qual
Cultivator Accessories/ Tools:
walking wheel:400-8mm type ,500-12mm type, 600-12mm type
Blades and ditch
Strong wooden case
Application scope:
dry fields,paddy and dry fields . And it can also sow and fertilize and plough when conncted with corollary equipment like sower and fertilizer ,reversible plough ,etc
Characters of the Machine:
1. The machine is compact, light with high working stability. It is easy to operate, and women can also operate it with facility.
2. It is flexible. The handles of the machine are adjustable according to the height of the operator and the needs of the terrain so that it can improve work quality and make the operator more comfortable.
Product Data:
| Model | LM4.2-FQ |
| Tiller | Transmission | Chain driving |
| Clutch | Tensioner |
| Gear Shifting | -1,0,1,2 |
| Productivity(m2/h) | ≥400 |
| Tilling Depth(mm) | 100~250 |
| Tilling Width(mm) | 750~950 |
| Tyre size(mm) | 400-8 |
| Net Weight(kg) | 65 |
| Dimension(mm) | 920 × 580 × 820 |
| Lighting function | No |
| Technology | Ordinary |
| Reverse gear | No |
| Engine | Engine Model | 170F gasoline engine |
| Engine Type | single cylinder, 4-stroke, air-cooled, OHV |
| Horse Power/Rotary Speed(rpm) | 6HP/3600 |
| Power | 4kw |
| Max. power | 4.8kw/3600 |
| Bore x stroke(mm) | 70×56 |
| Compression Ratio | 8.5:1 |
| Spark plug gap(mm) | 0.7 to 0.8 |
| Fuel consumption(g/kw.h) | 395 |
| Fuel Tank Capacity(L) | 4.5 |
| Displacement(ML) | 215 |
| Starting | Manual start |
| Tool | Type(mm) | 23 |
| Tilling Depth(mm) | 150-320 |
| Tilling Scope(mm) | 750-850 |
| Others | Certificate | ISO9001,CE |
| Package size(mm) | 920 × 580 × 820 |
| 40HQ | 154 sets |
As a good China tiller supplier, we have below advantage:
1. Good quality and competitive price
2. OEM service is available
3. SAMPLE is available
4. Fast and on time delivery
5. 6 month warranty
6. With Strong technical support, professional service, we aim for long term cooperation with you.
Small Tips:
a.When transporting the tiller, turn the fuel valve OFF and keep the tiller level to prevent fuel spillage. Fuel vapor or spilled fuel may be ignited.
b.Be sure the clutch is disengaged and the shift lever is in the neutral position to prevent sudden uncontrolled movement when the engine starts. The clutch is engaged by pulling in the clutch lever and disengaged by releasing the lever.
c.Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter.
d.Allowing any one to operate this tiller without proper instruction may result in injury.
e.To prevent damage, check the tiller for any signs of damage or other faults each time the tiller is used after it has been operated.
