Multi-Functional Diesel Tiller 5HP Mini Tiller with All Gear Drive--Guangzhou Laurel & Honesty Holdings

Purchase Qty.: (Pieces)	10-9,999 10,000+
FOB Unit Price:	US $499 US $200

Purchase Qty. (Pieces)	FOB Unit Price
10-9,999	US $499
10,000+	US $200

Basic Info

Model NO.: LM6.3-135FC-Z

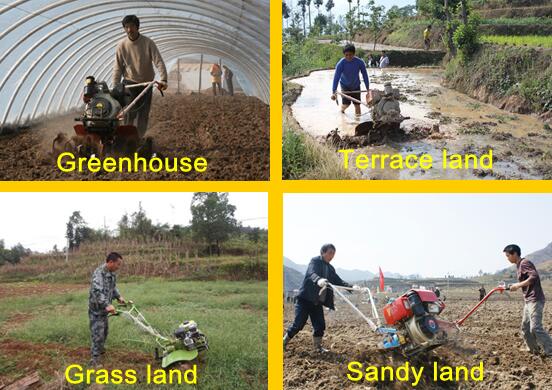

Application Field: Agriculture, Livestock, Aquaculture
Power Source: Gasoline
Traction Type: Semi Hanging
Arbor Configuration: Horizontal Axis
Color: Blue
Condition: New
Weight: N.W 128kg
Clutch: Friction Disk
Tilling Depth(mm): 150~300
Trademark: Laurel
Specification: CE, ISO, OEM
HS Code: 8432290000

Type: Micro-Farming Machine, Farm Cultivator
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: Gear Drive
Certification: SGS, ECE, EU, CE
Power(W): 3800
Dimension(L*W*H): 1030*545*830
Transmission: Gear Transmission
Gear Shifting: -1,0,1,2
Fuel Tank Capacity(L): 3.6
Transport Package: Standard Package
Origin: Guangdong China

Product Description

Multi-Functional Diesel Tiller 5HP Mini Tiller with All Gear Drive

Specifications
1.Precise Machine Balance
2.Automotive Style Clutch
3.Adjustable Handlebars
4.Independent Power Take Off (PTO)

Product Descriptions:

Model		LM6.3-135FC-Z	LM4.4-7100FC-Z	LM4-105FC-Z
Tiller	Transmission	Gear Transmission
	Clutch	Friction Disk
	Gear Shifting	-1,0,1,2
	Tilling Depth(mm)	150~300
	Tilling Width(mm)	1350mm 1000mm 1050mm
	Productivity(hm2/h)	≥0.05 ≥0.04 ≥0.04
	N.W/G.W(kg)	128/139	62/73	118/129
Engine	Engine Model	KAMA/ Kipor186FC	KEYE173FC	KAMA/ Kipor1178FC
	Engine Type	Single cylinder, vertical 4-stroke, air-cooled
	Bore x stroke(mm)	86x70	73x58	78×62
	Fuel Tank Capacity(L)	3.6	3.6	3.6
	Displacement(mL)	406	248	296
	Max. Power Hp(Kw)/rpm	6.1(4.5)/3600	6.1(4.5)/3600	6.1(4.5)/3600
	Starting System	Recoil start(Electric start optional and Recommended)
Others	Package size(mm)	1030x545x830	975x535x760	1030x545x830
	Qty/20' GP/ 40' GP/ 40' HQ	50/100/140 units	66/132/180 units	50/100/140 units
	Min. order	1

Honored Certificates	CE/CQC
Tech Standard	ISO 9001:2008

Features:
1.Quality Engines
Laurel tractors employ a full range of quality, high-performing engines.

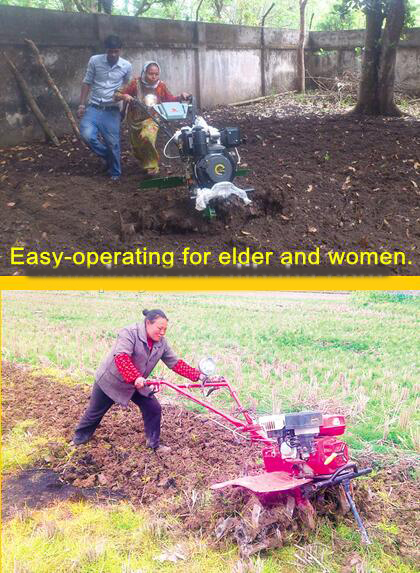

2. Comfortable, easy to use, and extremely versatile
Laurel's anti-vibration handles are comfortable, easy to use, and extremely versatile. Six vertical height settings and side-to-side adjusting allows the operator to easily find an ideal height setting and the option to work from the side.

3.Easy-to-use adjustable depth bar
The depth bar makes it easy to control the depth and speed of the tiller. This helps to improve the performance by working the soil more thoroughly. Easy to adjust, with no tools needed.

4.PTO Applications Available
All Laurel Power tractors have an independent power take off (PTO),allowing attachments to be turned on and off independently of the tractor wheels. When mounted, Laurel attachments interlock with the three jaws of the PTO shaft, and the engagement is internal to the oil bath tractor transmission.

Product Pictures:

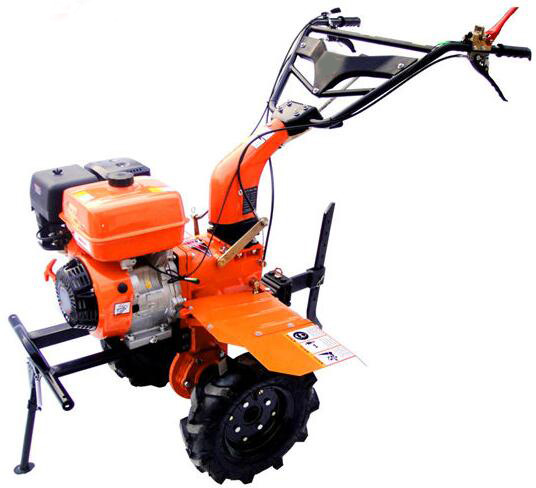

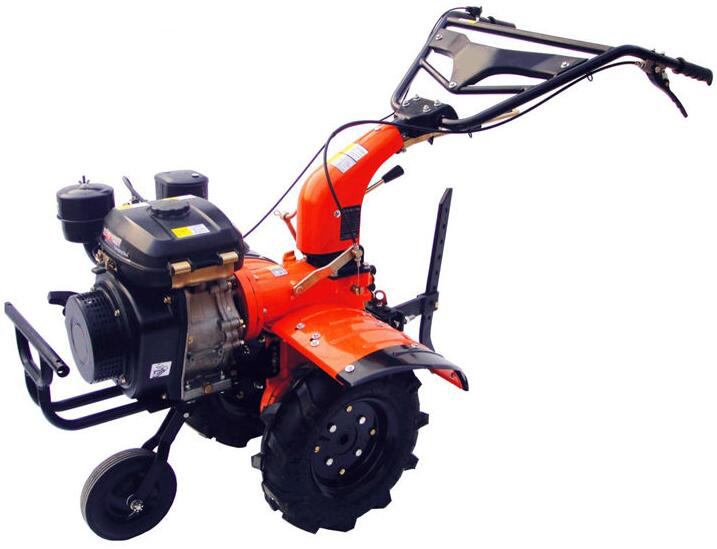

Multi-Functional Diesel Tiller 5HP Mini Tiller with All Gear Drive
