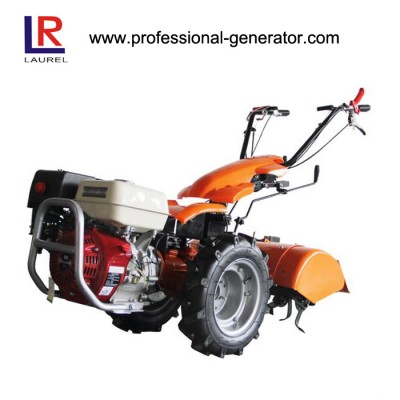

13HP Two Wheel Tractor Gear Drive Tiller Cultivator
Technical features:
| Tiller Model | LM730 |
| Engine option | Loncin G390F/ Honda GX390 |
| Start method | Available in recoil start or electric start |
| Weight | 120kg |
| Gears | 3 (2)forward, 2 reverse |
| Handlebar | adjustable in height and sidewise in different positions.It can be orientated of 180° |
| Working speed,forward | 1.18,2.76,12.67km/h |
| Working speed, reverse | 1.24,2.91 km/h |
| Wheel Size | 4.0*10.0 |
| Transmission | all gear drive and direct power transmission |
| Lubricating system | oil bath lubrication |
| Clutch type | Dry clutch |
| P.T.O. | 990rpm at 3600rpm of the motor |
| Gear ratio | 264.2:1 112.9:1 24.5:1 |
Technical date for Loncin G390F engine
1. Engine: Loncin G390F electric start
2. Net power: 8.3kw/3600rpm
3. Net torque: 25.3N.m/2500rpm
4. Bore*Stroke: 88*64mm
5. Displacement:389cc
6. Fuel tank capacity:6.5L
Our power tiller is ideally suitable for use in paddu fields, dry fields, orchards,
vegetable gardens, and hilly land with a little inclination. When attached with
suitable farm implements or accessories, it can be ideal for ploughing, rototilling,
harrowing, as well as harvesting, drilling, ditching, and transportation, etc.
Furthermore, our two-wheel tractor is also extensively employed as a stationary
power source for sprinkling, grain threshing, cotton ginning, flour milling,
fodder cutting, small scale drainage and irrigation, and more.
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service:
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period:
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
