Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: LM1WG3.8-50FQ
- Application Field: Agriculture, Garden, Yard
- Power Source: Gasoline
- Traction Type: Semi Hanging
- Arbor Configuration: Vertical Shaft
- Color: Orange
- Start System: Recoil or Electric
- Fuel Capacity: 3.5 ~ 6L
- Transport Package: Wooden Carton
- Origin: China
- Type: Micro-Farming Machine
- Farming Policy: Paddy Field Machinery
- Operation: Arable Machinery, Movable Operation
- Drive Type: Gear Drive
- Certification: CE, EMC,EPA,Carb
- Cooled Way: Air-Cooled
- Power(W): 4.6~12kw
- Trademark: Laurel & Honesty
- Specification: CE, ISO, OEM
- HS Code: 8501510010
Product Description

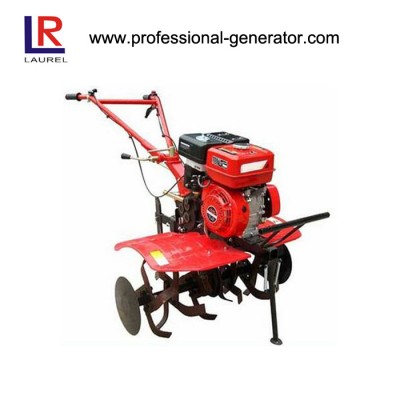

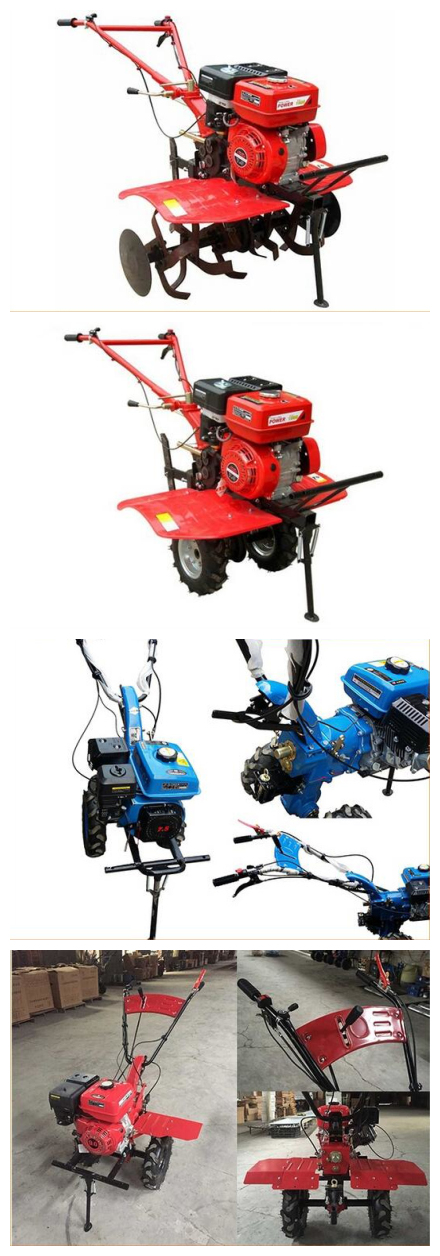

4.6~12kW Gasoline Power Tiller Cultivator TractorSpecifications: | MODEL | LM1WG3.8-50FQ |
| ENGINE | 168F-1/P, 6.5HP |
| BORE*STROKE | 68*54 |
| MAX POWER (kw/rpm) | 4.8/3600 |
| FUEL CAPACITY (L) | 3.6 OR 4.5 |
| FUEL TYPE | Gasoline |
| ENGINE OIL CAPACITY (L) | 0.6 |
| GEAR BOX OIL CAPACITY (L) | 0.95 |
| FUEL CONSUMPTION (G/Kw.h) | ≤340 |
| START SYSTEM | Recoil start |
| WORK WIDTH (mm) | 600-900 |
| WORK DEPTH (mm) | ≥100 |
| GEARS | 2,1,0,-1 |
| TRANSMISSION TYPE | Belt transmission |
| CLUTCH TYPE | Esternal tensioned clutch |
| PACKINE SIZE (mm) | 870*440*780 |
| PACKING STUCTURE | Hard carton box with metal framework inside |
| N.W (kg) | 56 |
| G.W (kg) | 71 |
| STANDARD CONFIGURATION | 23mm dry field blades (3+1 type; 24pcs),400-8tires |
| OPTIONAL CONFIG | paddyfield blades,30/32/40pcs dry field blades,anti-tangling blades,side plate, tilling kit etc |
| BLADES CONNECTIONS | 2+1+1,2+2,3+1+1,3+2 |
![4.6~12kw Gasoline Power Tiller Cultivator Tractor]()
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
![4.6~12kw Gasoline Power Tiller Cultivator Tractor]()
Generator, Engine, Diesel Generator manufacturer / supplier in China, offering 650kw 6 Cylinders Radiator Cooled Marine Generator Set, 60Hz 6 Cylinders Electrical 250kVA Marine Genset, 450kw 60Hz Diesel Generator Set with Cummins Engine and so on....
