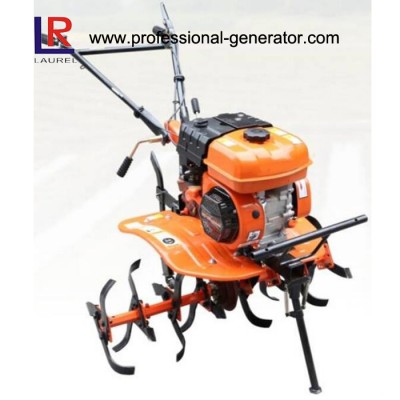

High Quality Garden Tiller Gearbox Rotary Cultivator
Product Data:
| Model No. | LM950G |
| Transmission | Gear + Chain |
| Shift | Reverse: 1 and neural Forward: 1, 2 fast slow and neutral |
| Clutch | Belt Tension Clutch |
| Tilling depth | ≥100 mm |
| Tilling width | 950 mm |
| Productivity | ≥0.05 hm²/h.m |
| Fuel economy | ≤21 Kg/hm² |
| Tyre | 3.5-6 inch/4.0-8inch |
| Blades | 3 pcs/4 group dry blades, total 24 pcs blades |
| Rotary blade radius | 160 mm |
| Speed of tillage knife | minimum power 67.7rpm
maximum power 93.1rpm |
| Engine Model No | LE170FQ Gasoline Engine |
| Rated Power | 4.2kw/ 3600rpm |
| Displacement | 212ml |
| Fuel Consumption Ratio: | ≤395g/kw.h |
| Starting System | Recoil Start |
| Package | Bracket/Plastic Bag/Carton |
| Package Dimension | 1025*505*810 mm |
| Nt Wt/Gr Wt | 75 kg/80 kg |
| Container Loading Qty | 100 sets for 20GP, 300 sets for 40GP |
Why choose us?
Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or
diesel generators, small power gasoline or diesel engines, gasoline water pumps and other
machinery products, as well as architectural glass and other building materials.
We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service.
We ensure that all our original purchasers get Laurel & Honesty products guarantee under this
warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser
