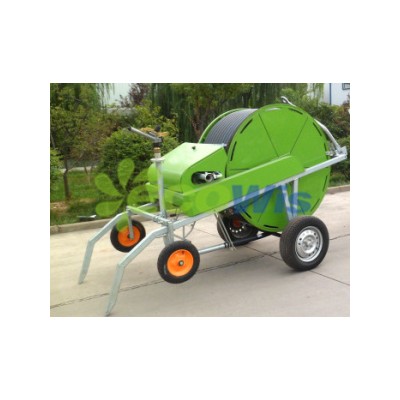

Hose reel irrigation machinery with rain gun sprinkler Item No.: HT7032(JP50)
Desp.: Hose reel sprinkler irrigation system,
hose reel irrigation machinery with rain gun sprinklerJP series light volume irrigation machine is a new generation of products, which is widely used in crop irrigation and sports, golfcourts, soccer fields, lawns, meadows, parks, gardens and other places spraying, irrigation and dust-proof.
High efficiency,energy saving, reliable, simple water turbine-driven device, the working pressure is low, construction is compact, operation is easy,and irrigated area is large.
To prolong the lifespan of machine, all structure parts are hot-dip galvanized.
JP40/50 widely used in farm land sprinkling, vegetables and fruits sprinkling, graze sprinkling, tea sprinkling, tobacco sprinkling, urban green sprinkling, etc.
| Desp. | JP50-140 | JP50-150 | JP50-180 |
| Outlet Dimension(l*b*h)mm | 3100*1580*1500 | 3100*1580*1500 | 3100*1580*1500 |
| PE tube outlet Dia(mm) | 50 | 50 | 50 |
| PE tube length(M) | 125 | 135 | 165 |
| Tyre | 7.00-9/5.00S | 7.00-9/5.00S | 7.00-9/5.00S |
| Sprinkler Nozzle Car Track(mm) | 1420 | 1420 | 1420 |
| Single Sprinkler Type | Working Pressure(Mpa) | 0.4-0.76 | 0.4-0.76 | 0.5-0.78 |
| Nozzle Dia(mm) | 9-16 | 9-16 | 9-16 |
| Sprinkler Working Pressure(Mpa) | 0.25-0.5 |
| Flux(m3/h) | 5.5-19.7 |
| Max Sprinkling Width(M) | 31.5-51.2 |
| Spraying Distance(m) | 18.5-30 |
| Multi-Sprinklers Type | Working Pressure(Mpa) | 0.2-0.5 |
| Nozzle Qty* Dia(mm) | 9*(3.6-6.4) |
| Sprinkler Working Pressure(Mpa) | 0.1-0.2 |
| Flux(m3/h) | 5-19 |
| Max Sprinkling Width(M) | 18-26 |
| Spraying Distance(m) | 3-4 |
![Hose Reel Irrigation Machinery with Rain Gun Sprinkler (HT7032)]()
