Single cylinder direct injection engine 4LZ-0.7 mini rice harvester
| Main specification(4LZ-0.7) |
| Item | Unit | Specification |
| Model | / | 4LZ-0.7 |
| Structural type | / | Self-propelled full feeding |
| Engine equipped | Model | / | CHANGCAI L14 |
| Structural type | / | Single cylinder, horizontal, water-cooled four-stroke,Direct Injection |
| Rated Power | kw | 9.7 |
| Rated Rotating speed | r/min | 2400 |
| Dimension(L*W*H) | mm | 3300*1500*1500 |
| Weight | kg | 650 |
| Cutter Width | mm | 1200 |
| Feeding Capacity | kg/s | 0.8 |
| Minimum Ground Clearance | mm | 210 |
| Moving Speed | Km/h | 1.4-3.2 |
| Productivity | hm2/h | 0.08-0.133 |
| Fuel Consumption | Kg/hm2 | 10.5-13.5 |
| Cutting Type | / | Reciprocating |
| Reel | Type | / | Eccentric Wheel |
| Diameter | mm | 560 |
| Quantity | pc | 4 |
| Threshing Roller | Quantity | pc | 1 |
| Type | / | axial flow spike tooth |
| Diameter*Length | mm | 330*755 |
| Type of concave | / | Fixed Grid |
| Fan | Type | / | Fixed |
| Diameter | mm | 242 |
| Quantity | pc | 1 |
| Grain Unloading | / | Manually |
| Crawler | Width*pitch*number | mm | 290mm*66mm*43 |
| Grain breakage rate | | / | ≤1.5% |
| Grain impurity rate | / | ≤3% |
Product details of Single cylinder direct injection engine 4LZ-0.7 mini rice harvester
mini rice harvester

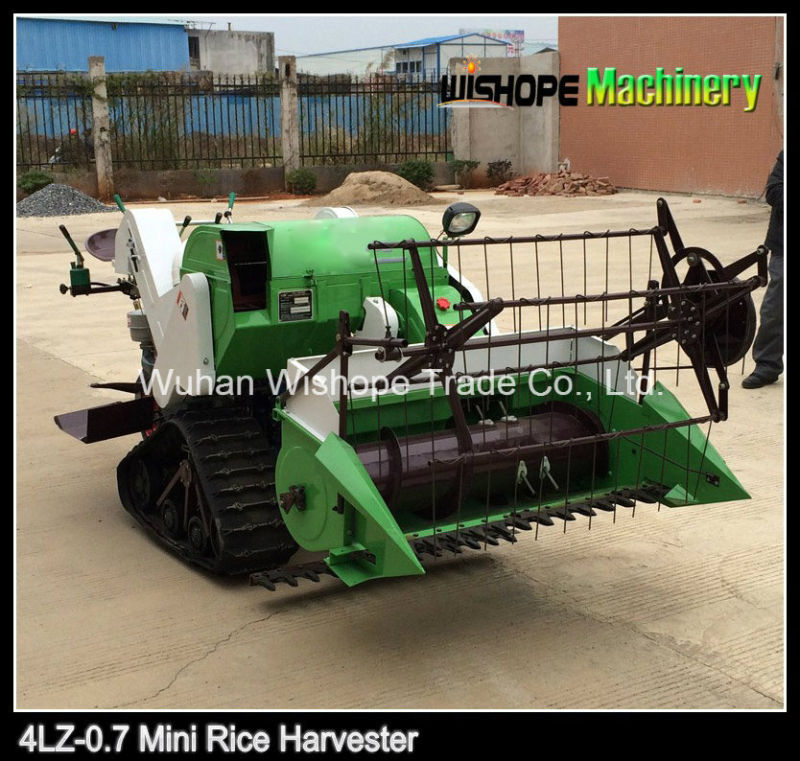

![Single Cylinder Direct Injection Engine 4lz-0.7 Mini Rice Harvester]()

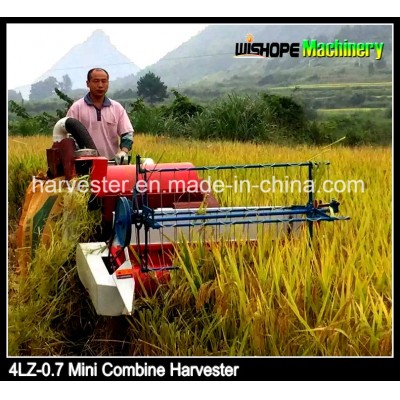

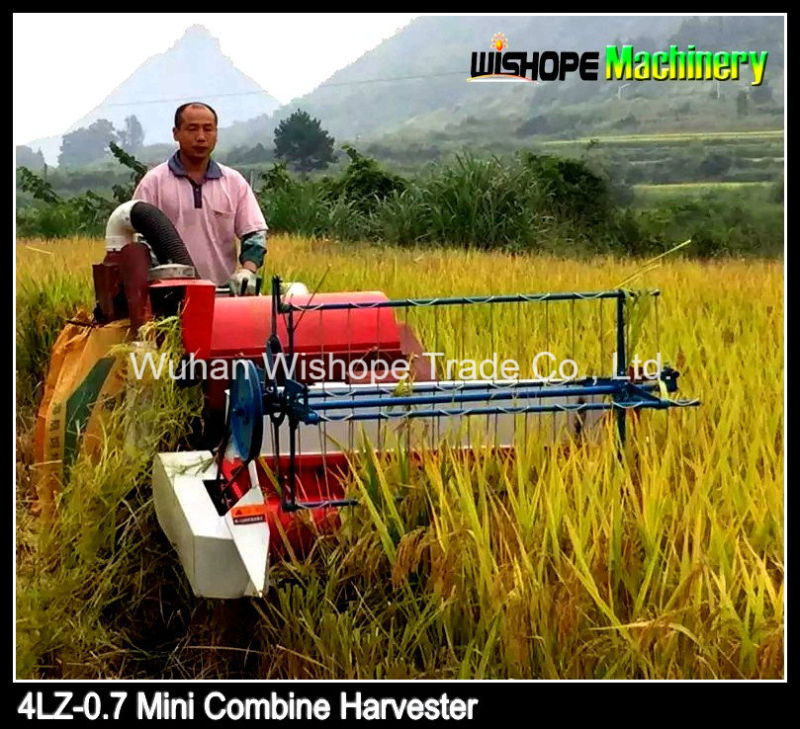

One man only could work well by this mini combine harvester when just sitting on.
OurSingle cylinder direct injection engine 4LZ-0.7 mini rice harvester is small, and especially suitable to use in the hilly and mountain areas. Though it has small size, the working productivity is as fast as
550-1500 m2/ hour~!
![Single Cylinder Direct Injection Engine 4lz-0.7 Mini Rice Harvester]()
FAQ:
1.Q: What is the warranty of the agricultural machinery?
A: One year guarantee for whole machine (except quick-wear parts), engine model and gear box.
Tips: we usually suggest the buyer order some quick-wear parts separately.
2.Q: Is there any option for your combine?
A: Yes, option parts such as: rubber track, grain tank and type of grain unloading
3.Q: What is your delivery time?
A: Normally, it takes 15-20days to delivery after your deposit receipt or L/C at sight
4.How many harvesters can be loaded in one container?
1)20 Feet Container loads:
For Combine: 5 sets 4LZ-0.5; 8sets 4LZ-0.8; 1set 4LZ-1.2; 1set 4LZ-2.2; 1set 4LZ-3.0; 1set 4LZ-4.0/4.5
2) 40 High Cube Container loads:
For Combine: 11sets 4LZ-0.5; 20sets 4LZ-0.8; 4sets 4LZ-1.2; 4sets 4LZ-2.2, 3sets 4LZ-3.0, 3sets 4LZ-4.0/4.5/5.0z
5.Q: What is the payment term?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6.Q: What is the after-sales service?
A: Every year we send our engineer and after-service people to local market two times, to assist our sales agent training staff, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7.Q: Is OEM or ODM service acceptable?
A: OEM service is no problem, if you have any special requirement about the machine, please kindly inform us, our engineer department will study and offer your suitable solution.
