Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: ETU-22-168
- Liquid Contained: Medicine, Disinfector
- Volume: >500ml
- Technics: Injection Molding
- Type: Stretcher Type
- Spraying Pressure: 20-35(Kg/Cm2)
- Transport Package: Export Carton
- Origin: China
- Installation: Internal Threaded Connection
- Spraying Shape: Liquid Column
- Power Supply: Electric
- Material: Stainless Steel
- Matched Engine: 168f
- Trademark: Easyto
- Specification: ISO9001, CCC
- HS Code: 8424
Product Description

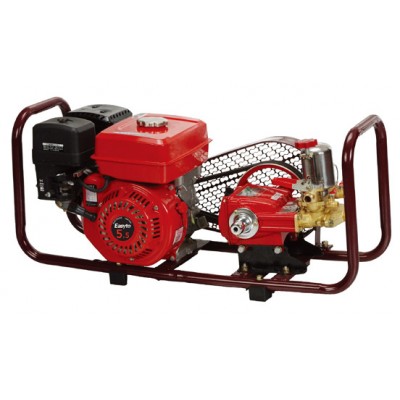

![Hot Sale Stretcher Type Power Sprayer (ETU-22-168)]()
| Model | ETU-22-168 |
| Matched engine | 168F |
| Plunger no.&dia.&stroke | 3X30X18(mm) |
| Spraying pressure | 20-35(kg/cm2) |
| Suction | 33-40(L/min) |
| Speed | 800-1000(R.P.M) |
| Weight | 33.5(Kg) |
| Packing size | 900x350x480(mm) |
Main Features:
1) Compact construction. U type frame, sturdy and easy to carry. With protection shield.
2) Light weight and easy to operate.
3) Complete functions and long life.
4) Good movability, even can be used in hill terrains.
5) Driven by four stroke 5.5hp gasoline engine made by us. Strong power and low noise.
6) The tri-cylinder plunger pump is specially made by our company, with high pressure and long spray range (≥10M).
7) Can develop pressure up to 35kg/cm2 (500psi). Good atomization and good penetrating.
8) With safety valve to ensure safe working and the pressure can be regulated.
9) Each unit supplied with pulleys, V-belts, suction hose, overflow hose and strainer.
10) Each unit supplied with a parts kit (gaskets and rings, tools, etc.)
