1. Working Principle of grain crushers
Raw materials enter into crushing chamber through feeding hopper and then be crushed by high speed rotating hammer blades. Raw materials quickly be crushed into small pieces under continuous strike, collide and smash with hammer blades, toothed plate and screen pieces. Then crushed materials would be sent to pass through screen holes. Large particles that can not pass through screen holes need to be re-crushed.

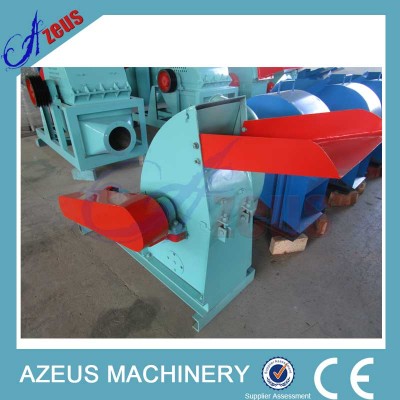

Fish Feed Hammer Mill Introduction
This fish feed crusher is a hammer grinding machine used for processing fish feed raw materials into small pieces with proper sizes to help further process. And we are the expert in designing and manufacturing several fish feed crushing machine for your choice.
Fish Feed Hammer Mill Features
1.Wide application: this fish feed grinder is working well for various users to process agricultural materials, such as branches, bark, corn stalk, peanut shell, dry grass, cotton stalk, etc.; and pharmaceutical and industrial materials, such as Chinese medicine crops, quartz, coal, coal residue, woods, etc.
2.Simple structure, high efficiency, easy operation, reliable performance and easy maintenance.
Fish Feed Hammer Mill Structure
This fish feed grinding machine is made up of feed hopper, top engine block, bottom engine block, rotor, sieve, working fan, feed delivery pipe, etc. And the storage bag and storage bin can be equipped as customers required.
Fish Feed Hammer Mill Working Principle
1.The raw material enters into crushing chamber through feed hopper, and it is broken by hammer hit with high-seed rotation.
2.Under the drive of airflow, the broken material is moving along the rotor outer-edge and has a continuous collision and friction against the hammer, toothed plate and sieve, and then the broken material is crushed.
3.The particle after crushing is delivered into storage bags or bins through sieve under the centrifugal pressure of rotor and the suction force of working fan.
Fish Feed Hammer Mill Parameter
Model | Principal Axis Rotation Rate
(min/n) | Rotor Working Diameter
(mm) | Hammer Quantity | Capacity
(kg/h) | Power
(kw) |
AMS360 | 4000 | 360 | 16 | 150-250 | 5.5-7.5 |
AMS400 | 4000 | 400 | 16 | 250-500 | 7.5-11 |
AMS500 | 4000 | 500 | 24 | 500-700 | 11-15 |
