Kubota Combine Harvester with Rice and Wheat--SIHNO MACHINERY LIMITED

FOB Price:	US $28,500-30,000 / Piece
Min. Order:	1 Piece

FOB Price:

US $28,500-30,000 / Piece

Min. Order:

1 Piece

Min. Order	FOB Price
1 Piece	US $28,500-30,000/ Piece

Min. Order

FOB Price

1 Piece

US $28,500-30,000/ Piece

Basic Info

Model NO.: PRO688Q
Application: Rice, Wheat
Harvest method: Cutting
Transmission: Hard Shaft
Certification: ISO9001:2008
Condition: New
Trademark: KUBOTA

Type: Horizontal Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Self-Propelled
Color: Red
Application Field: Agriculture
Origin: China

Product Description

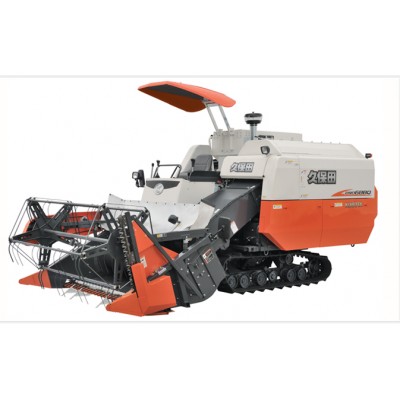

Kubota PRO688Q Combine Harvester With Rice And Wheat

SPECIFICATION OF KUBOTA PRO688Q AND PRO688Q-G
MODEL			PRO688Q	PRO688Q-G
Size	Overall length(mm)		4860
	Overall width(mm)		2295
	Overall height(mm)		2765
Weight (kg)			2815
Engine	Model		V2403-M-DI-TE2-CKMS3	V2403-M-DI-TE2-CKMS6
	Type		vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesel engine
	Total displacement (L[cc])		2.434[2434]
	Rated output/rpm (ps[kw]/rpm)		68[50]/2700
	Fuel		0 # diesel oil
	Fuel tank capacity(L)		60
	Starting method		starter motor
	Battery(V.Ah)		12·52
Travel unit	Track	Ground length × width (mm)	400×1680	450×1680
		Centre distance(mm)	1150
		Average ground pressure(kpa[kgf]/cm2)	20.3 (0.21)	18.1 (0.19)
	Minimum ground clearance(mm)		275
	Transmission mode		hytrostatic CVT [HST]
	Speed		no class vice-speed 3 files
	Running speed (m/s)		low speed:0~0.97; cruising speed:0~1.37; hign speed:0~1.85
Harvest unit	Fu Wo method		Wo cal control
	Wo cal control	Rotating diameter×width(mm)	900×1828
		Transmission mode	Isokinetic
		Way up and down adjustment	Hytrostatic
	Harvest width (front-end sub-interval of the grass) (mm)		2000
	Cutter width(mm)		1905
	Harvest height (down) range (mm)		40 more cutter tip
	Lodging adapation (degree)		Shun-cut:< 85°, Against the cut:< 70°
Threshing unit	Threshing system		axial threshing gear
	Threshing cylinder	Threshing teeth type	bow teeth
		Diameter × width(mm)	Φ620 × 1790
		Rotational speed(rpm)	560
	Second transmission mode		srew auger
	Screening method		shaker winnowing (3 air separation)
	Concave network area (4)		1.621
Uereal discharge unit	Vally box set	Capacity (L)	420	1000
		Tanigushi row number (a)	2	1
		Discharge mode	manual	hydraulic pressure
Warning lights and equipments		Vertical transmission filler and then plug screw rob cereal
		Sets valley box filled with
		Water temprature
		Battery charging
		Engine oil pressure
Suitable crops			rice / wheat/rape
Operational efficiency (A unit of area/ hour)			3-8 (with the crop varieties and conditions)
