45psi Bike Wash High Pressure Water Pump for Cleaning
45psi Bike Wash High Pressure Water Pump for Cleaning
FOB Price: US $32 / Piece
Min. Order: 24 Pieces
Min. Order FOB Price
24 Pieces US $32/ Piece
Supply Ability:
0 per
Port:
Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description
Basic Info
  • Model NO.: SFDP1-028-045-33
  • Type: Pump
  • Drainage & Irrigation Mode: Sprinkler Irrigation Equipment
  • Material: Metal
  • Condition: New
  • Product: Bike Wash High Pressure Water Pump
  • AMPS: 7.0A Max
  • Port Dimension: 0.82"(20.95mm)
  • Valve: EPDM/Viton
  • Application: RV/Marine/Yachts/Boat/Caravan/Water System,Ect
  • Transport Package: Strong Carton/Poly Foam.
  • Origin: Fujian, China
  • Usage: Drainage and Irrigation
  • Power Source: Electricity
  • Pump Type: Diaphragm Pump
  • Certification: SGS, ISO9001:2008, CE, Ce, ISO9001:2008, RoHS
  • Application Field: Yacht/ RV
  • Flow Rate: 10.6lpm/2.8gpm
  • Pressure: 45psi/3.1bar
  • Diaphragm: Santoprene
  • Protection: Thermal/Ignition Protection
  • Trademark: SEAFLO
  • Specification: CE
  • HS Code: 8413509090
Product Description

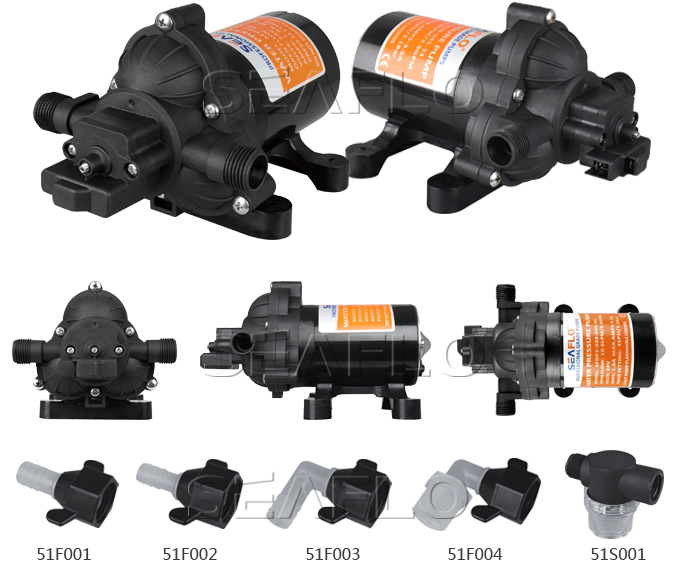

45PSI Bike Wash High Pressure Water Pump for Cleaning

10.6LPM/2.8GPM 45PSI


Description
1. Run dry without damage  (Run Dry Capability)
2. Quick-connect plug-in ports for easy installation (Hose Kit Included)
3. Self-priming
4. Gnition & Thermally Protected

Specifications
How a Diaphragm Pump Works:

The pump is driven by an AC or DC moto

In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamberhas a diaphragm behind it in the lower pump housing.   As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet

The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity





45psi Bike Wash High Pressure Water Pump for Cleaning





45psi Bike Wash High Pressure Water Pump for Cleaning






45psi Bike Wash High Pressure Water Pump for Cleaning



Motor Voltage12/24V DC
Type3 chamber diaphragm pump, self priming, capable of being run dry
ModeDemand or bypass
Certifications OptionCE Approval
Liquid Temperature140°F (60°C) Max.
Priming Capabilities6 feet (1.8 m)
Max Pressure45psi (3.1bar)
Max Flow rate11.6lpm (3.0gpm)
Thermal Overload ProtectedStart working when temperature reach 90°C(+-10%)
Inlet/Outlet Ports10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 FNPT thread filter for your choice.
Duty CycleIntermittent (under different pressure the continuous working time will also be different)
Motor options2 pin connector
On/off switch
ModelSwitchGPM/LPMPSI/BARMax Draw
(A)
ValvesDiaphragmPortsVoltageWire
Connections
SFDP1-030-045-33Demand3.0/11.645/3.18.0EPDMSantoprene1/2"-14 MNPT12V2-Pin/Leads
SFDP2-030-045-33Demand3.0/11.645/3.14.0EPDMSantoprene1/2"-14 MNPT24V2-Pin/Leads
SFDP1-028-040-33Demand2.8/10.045/3.18.0EPDMSantoprene1/2"-14 MNPT12V2-Pin/Leads
SFDP2-028-040-33Demand2.8/10.045/3.14.0EPDMSantoprene1/2"-14 MNPT24V2-Pin/Leads

FAQ
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.
