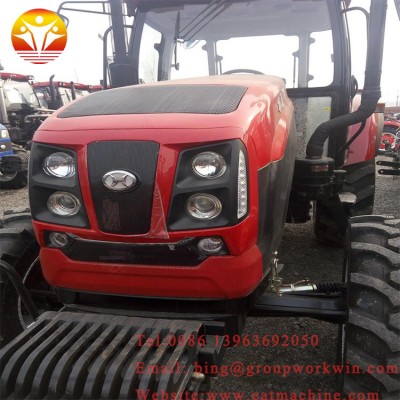

Large Power Agricultural/Farm 120HP 140hp 4WD Agricultural Tractor
Main Features:
1.Parking brake: Disc brake;
2.Flexible and stable mesh sleeve shift;
3.Full hydraulic front-wheel steering with independent circuit;
4.Tractor gearbox is 4X(2+1)×2 shuttle shift,8 forward gears+ 4 reverse gears;
5.Rear semi-independent Power Output, with 6-spline 540/1000 r/min;
6.The use of a simple floor structure and an external divider is easy for maintenance;
7.Adopt YTO engine, Chinese famous diesel engine , big brand, quality assurance;
8.Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24
9.Planet-gear Final Transmission with small volume and large reduction ratio;
10.Planet-gear Final Transmission with small volume and large reduction ratio;
11.9-inch single or double action clutch & Semi-split lifter LT354 types of four wheels farm tractor ,full hydraulic steering;
Strong Power Engine
Engine: YTO/ Deutz or Other Brand 4 or 6 Cylinder Diesel Engine.
Lighting System
All series tractor standard lighting system. This new system equip LED daytime running light, LED light for assisting to turn and low beam light with a lens can make the beam more condensed.
Strong Stability and High Lift of Rear Suspension
The long wheelbase and compact design can ensure strong stability and have a balance weight distribution.
Large Tank and Convenient Maintenance
GWW series tractor has 9 advantages that can make tractor has a excellent performance in any case.
NSK Bearing of Steel
Small starting friction, wear -resisting, high precision. The steel of high strength can keep running in the condition of high and low temperature, and has a long service life.
| Model | MAP1204 | |
| Drive type | 4x4 | |
| Engine | ||
| Engine model | Yuchai YC4A140L-T20, 4 cylinder, direct injection, in-line, turbo Engine | |
| Capacity of fuel tank(L) | 150 | |
| Rated speed (r/min) | 2300 | |
| Engine power (kw) | 88 | |
| Lowest fuel consumption (g/kw·h) | ≤242 | |
| Transmission | ||
| Clutch | Dry,Dual-stage type | |
| PTO Speed(rpm) | 540/1000 or 760/1000(optional) | |
| Gear shift | 8F+4R/8F+8R(optional)/16F+8R(optional) | |
| Three point linkage | ||
| Category of 3-point link | Category II | |
| Lifting capacityat point of 610mm(KN) | >16 | |
| Technical parameter | ||
| steering | hydraulic steering | |
| hydraulic outlet valve | 2-way(optional) | |
| Dimension LxWxH mm | 4593x2050x2700 | |
| Weight(KG) | 3950(with cabin) | |
| 3700(without cabin) | ||
| Wheel base(mm) | 2195 | |
| Track base(mm) front wheel | 1610 | |
| Track base(mm) rear wheel | 1620-2020 (usual 1620) | |
| The smallest clearance(mm) | 379 | |
| Front tyre | 11.2-24/12.4-24 | |
| Rear tyre | 16.9-34/18.4-30(optional) | |
Packaging Details
standard export package
Port
Qingdao
Description of core advantages:Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
Company details:Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.

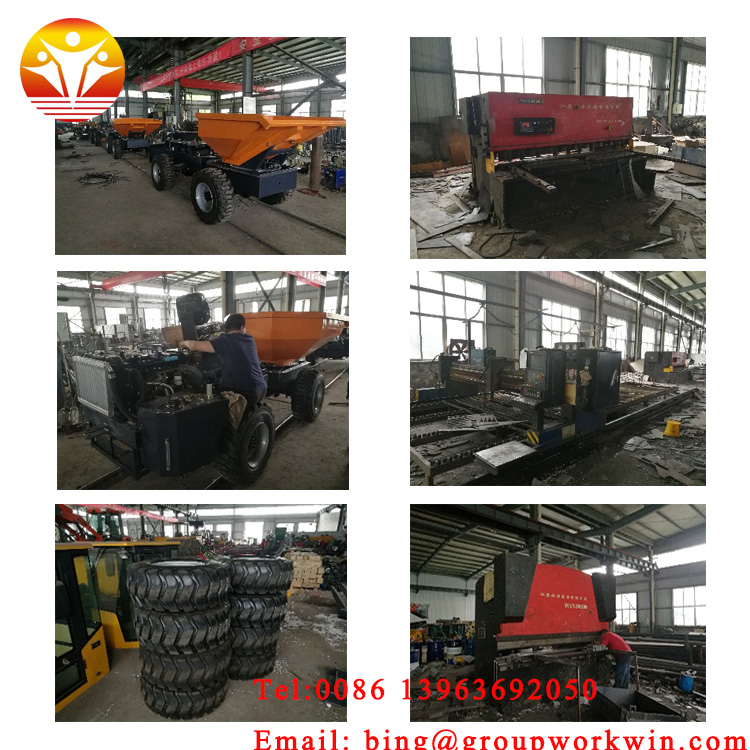

Factory inside
1. Where is your plant located ?
Binhai Economic Development Area, Weifang City, Shandong Province, China.
2.Which is the loading port?
Qingdao Port, China
3.Can you provide free sample?
Sample is free. The shipping charges should be paid by the buyer.
4.What's your payment terms?
T/T or L/C.
5. What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , Health certificate and Origin certificate. If your markets have any special requirements, let us know.
