High efficiency 2z-430 4-row chinese mechnica rice transplanter
High efficiency 2z-430 4-row chinese mechnica rice transplanter
Supply Ability:
1 Set/Sets per 0
Port:
Qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description

High efficiency 2z-430 4-row chinese mechnica rice transplanter


rice transplanter3.jpg

rice transplanter5.jpg

Features of rice planting machine

1.It is the agriculture machine to transplanting rice, also solves the problem of the float seedling,seedling adaptation period is shortened to 2-3 days.

2.Depth adjustment is more reasonable and convenient.

3.It is cost saving,improve efficiency, increase production,also can save water during nursery stage.

The machine direction  divided into outside gear and inside gear

1.It makes the machine operate more flexible and comfortable.

2.New-adjustable-humanity design-seat makes the machine operate more comfortable and durable.

3.New-stainless steel seeding box make more anti-corruption.

4.Second generation-extra heavy-end wheel make the machine more generous and more durable.

5.Seeding distance can meet user's requirements under regulation.

6.New walking wheel make the machine more generous, have higher strength and operate more durable.

7.Configured 170F engine make the machine perform stable and low noise.


Type

2ZF-6AK

 Structural Type

Two wheels three floating plates type

Walking-wheel Diameter(mm)

660

Work-part structural type

Crank rocker type

Size(L×W(work)×H)(mm)

2370×1930(2280)×930

Total Weight(kg)

195



Matching Power

 Type,name

YAMAHA MZ175B8EA0

four-stroke gasoline engine


Output power(kW)

/Speed (r/min)

3.8/3600

Variable Speed Series

forewords two gears, backwards one gear

Capability

Work Speed(km/h)

1.22-2.77 (no skidding)


Walk Speed On Road(km/h)

2.09-5.33


Transplanting Depth(mm)

4-40

Planting Density

Work Lines(Line)

6


Line Distance (mm)

300


Transverse Taking  Seedling(mm/number)

10.8/26,14/20,15.6/18(20/14)


Longitudinal Taking Seedling(mm)

8-17


Seedling distance oftransplanting seedling(mm)

120,140,160,180,210


Nummber of (holl/ 3.3m2)

90,80,70,60,50


Number of  seedling / holl (seedling)

2-8

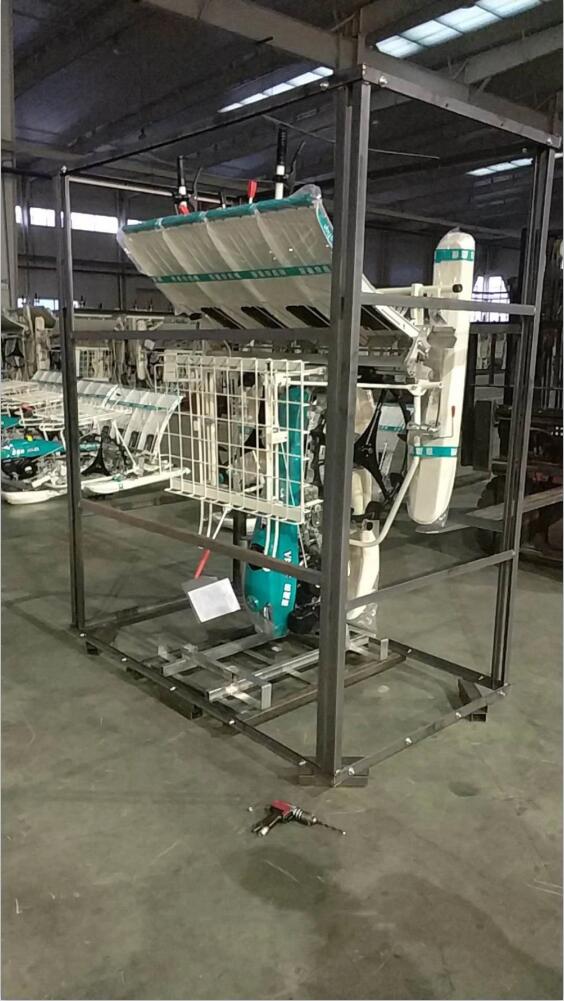

Packaging Details standard packaing

Port Qingdao

Lead Time :

Quantity(Sets)

1 - 30

>30

Est. Time(days)

15

To be negotiated





Features

1.labour saving,high efficiency;
2.Decrease the use of fertilizer and Increase yield.
Compared with conventional spread fertilizing, mechanical side deep fertilizing can save 30% fertilizer and increase 20% rice yield.
3.Lodging resistance: Rice plant by Longzhou side deep fertilizing has more flourishing roots, more thick and strong stem and shows better lodging resistant than that by conventional spread fertilizing.
4.No weeds, no herbicides,realize green agricultural production, Environmental friendly.

5.Intelligentized : Synchronous, no static difference, high precision, abnormal alarm.



Description of core advantages:Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

Company details:Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.




1. Where is your plant located ?

Binhai Economic Development Area, Weifang City, Shandong Province, China.

2.Which is the loading port?

Qingdao Port, China

3.Can you provide free sample?
Sample is free. The shipping charges should be paid by the buyer.

4.What's your payment terms?

T/T or L/C.

5. What documents you provide?

Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , Health certificate and Origin certificate. If your markets have any special requirements, let us know.
