Wheeled Agricultural Tractor Plough  Trailer Front Loader
Wheeled Agricultural Tractor Plough  Trailer Front Loader
FOB Price:
US $1.000 / Ton
Min.Order:
100 Ton/Tons
Supply Ability:
1000 Ton/Tons per 0
Port:
Qingdao
Email:
Quantity:
Ton
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
groupworkwin
Model Number:
150hp

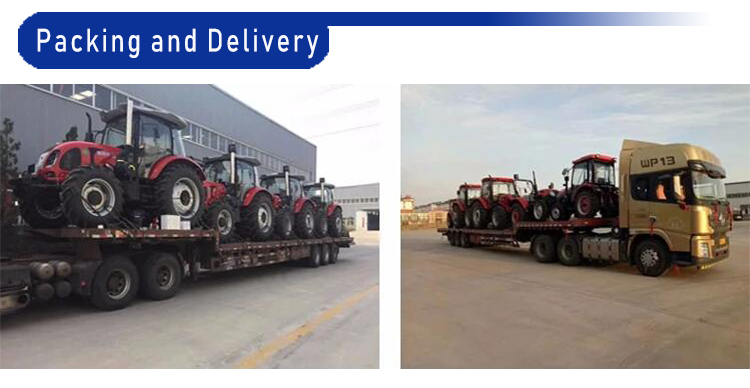

Packaging & Delivery

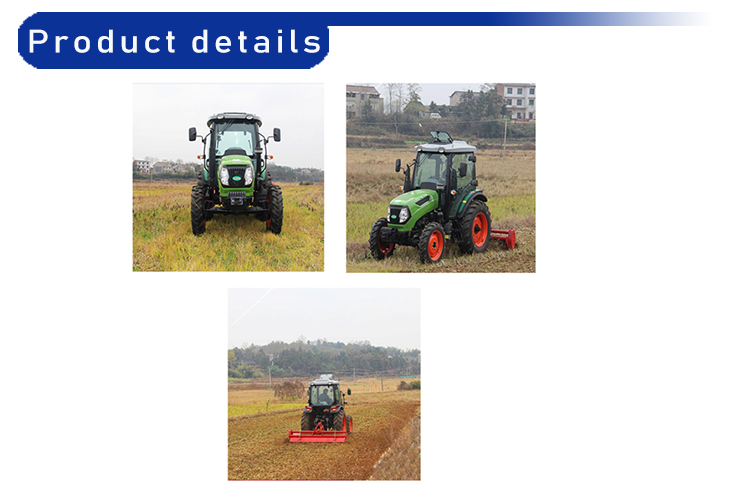

Product Description

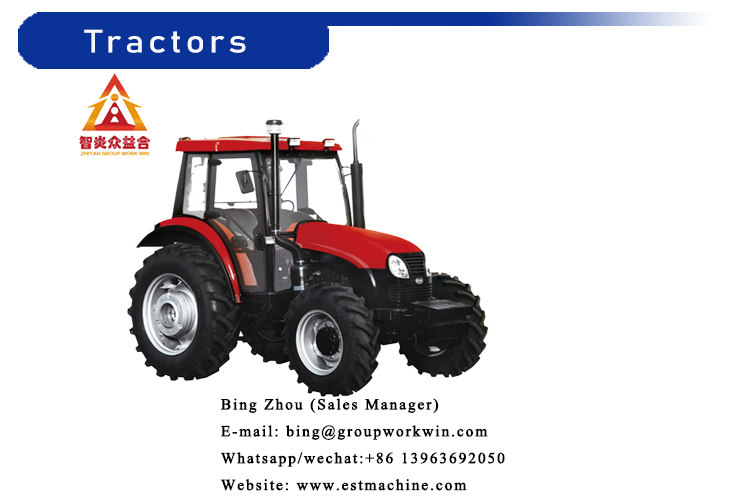

Wheeled Agricultural Tractor Plough

Trailer Front Loader


Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices.


It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices.



  MODEL

BTD1204

BTD1304

Drive type

4*4

4*4

GENERAL SPECIFICATION

Length×Width×Heigh (mm)

5040*2285*2960

5040*2285*2960

Constructional weight(KG)

4560

4560

Ttraction force (KN)

22.1

22.9

Wheel base (mm)

2810

2810

Front wheel tread (mm)

1923

1923

Rear wheel tread  (mm)

2008

2008

P.T.O Max.power (Kw)

94.5

99.9

Ground clearance (mm)

485

485

ENGINE

Type

WP6T120E22

WP6T130E22

Rated power

105

111

Rated revolution  (r/min)

2200

2200

Max.torque (n.m)

606

641

TRANSMISSION

clutch

Dry,constant combine,dual acting,independent operation of clutch

The number of gearbox

12F+4R,12F+12R

WORKING DEVICE

Lifter tilling depth control

Force-position comprehensive control and floating control

Max.lifting capacity (KN)

21.2

22.9

Suspension type

Rear three-point suspension,class 2

Speed of P.T.O.(r/min)



540,760,850,1000 for choicing


Processing within 10 working days after receipt of down payment to clarify all technical and commercial projects



Linyi katia Group Work Win Co.,Ltd., located in weifang, where the headquarters of international kite federation is located, has been providing good products and technical support and sound after-sales service for the company's development and expansion for one year.




1. Using independent power output device, the transmission is stable, the capacity is large and the speed is fast.

2. Adopt independent circuit of hydraulic steering control system, which is flexible, reliable and energy-saving.

3. The final transmission of planetary gear mechanism has compact structure and large deceleration ratio.



1.Are you tractor supplier or manufacturer?

We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.

2.Can you supply tractor farm implements?

We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.

3.What's your payment method?

Support L/C,D/A,D/P,T/T,and other secure payment.

4.When do you ship after payment?

Within 10 to 20 working days after delivery.

5.when do contact you?

our sales person is 24*7 online for your service.

6.What are your discount items?

We will give you the biggest discount.

7.What are your advantages?

Advanced equipment,good price;professional association authentication;scientific and strict production management;superior and high quality service.
