150hp 160hp 180hp 4*4 mini tractor with cabin optional
150hp 160hp 180hp 4*4 mini tractor with cabin optional
FOB Price:
US $4,300.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
100 Set/Sets per 0
Port:
Qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Groupworkwin
Model Number:
NVX1504 NVX1604 NVX1804
Packaging & Delivery
nude

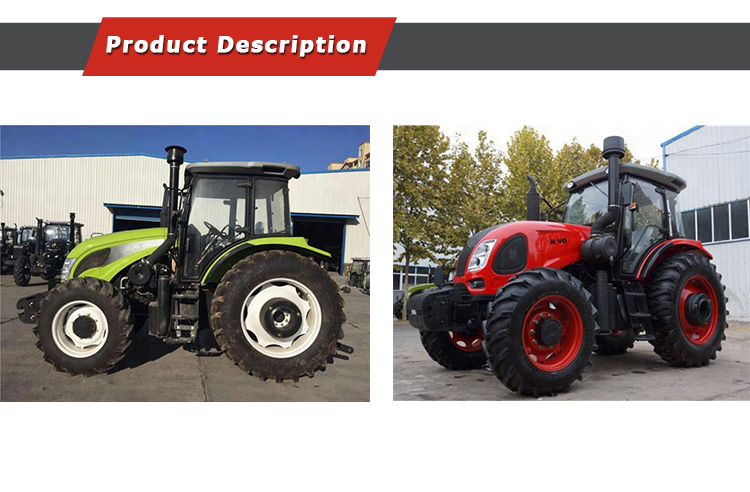

Product Description

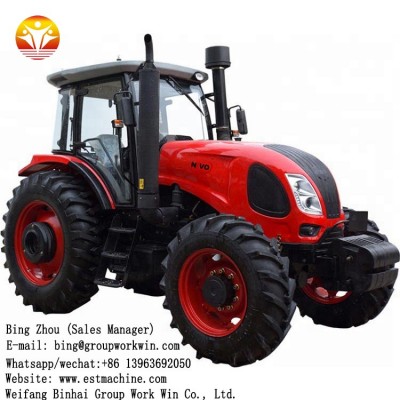

150hp 160hp 180hp 4*4 mini tractor with cabin


diesel engine tractor



1, matching 180 hp domestic famous country three engines, emissions upgrades, low fuel consumption, torque reserve, power strong.

2, the use of double-acting to increase the type of reinforced clutch, 16 +16 helical gear reinforced chassis, reinforced front axle, flat floor, side of the file, optional crawl, stalls match reasonable.

3, the standard strong and strong pressure and external cylinder booster, lifting force, to enhance the speed, higher reliability.

4, power output 760/1000 r / min, 760/850 r / min, optional 540/1000 r / min, to meet the agricultural machinery speed requirements.

5, the hydraulic independent of the oil, the entire hydraulic independent steering, turning radius with a small cab.



SADIN 1604-1804 Series Tractor
Main Technical Specifications
ModelSADIN1604SADIN 1804
Type4x4 Wheeled Type,4WD
Dimensions of TractorLength5280
Width22702780
Height3270
TreadFront Wheel1970
Rear Wheel1700-2300(usual 1800)
Wheel Base2700
Min.Ground clearance450(the bottom of drawbar)
Min.operational Mass66106655
EngineModelLR6M3LU22/1177ELR6M3LU22/1324E
TypeVertical, water cooled and 4-stroke
Rated Power(KW)117.7132.4
Rated Rev.(r/min)2300
FuelDiesel
TireFront Wheel16.9-28(Optional:14.9-28)18.4-26(Optional:16.9-28)
Rear Wheel18.4-42(Optional:18.4-38)20.8-38(Optional:18.4-42)(dual-row rear tyre is optional)
ClutchDry-friction, single disc, dual stage
SteeringHydraulic power steering
Transmission Box(1+1)x4x4 Composed
Hitching Typerear mounted, 3-point linkage, catagory III
PTOType and Rev.(r/min)rear mounted, independent type 540/1000
Spline SizeI35 Rectangle Spline with 21 teeth



Farm Implements

Front end loader


Disc plough

  180hp 4WD farm track tractor photos

Land scraper


Disc harrow

Packing & Delivery

Packaging

Size

Over one 40' container

Weight

According to actual weight

Packaging Details

SKD is available.

Packaging

Size

According to actual size

Weight

According to actual weight

Packaging Details

LCL is available, if farm tractor with cab, the tractor will need craft-wheel
