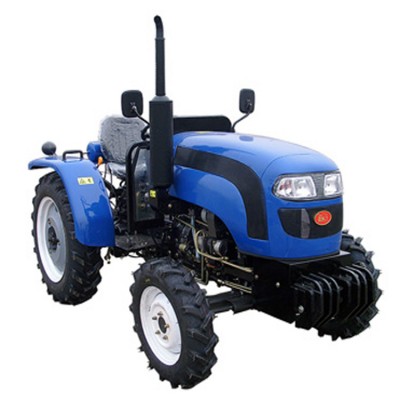

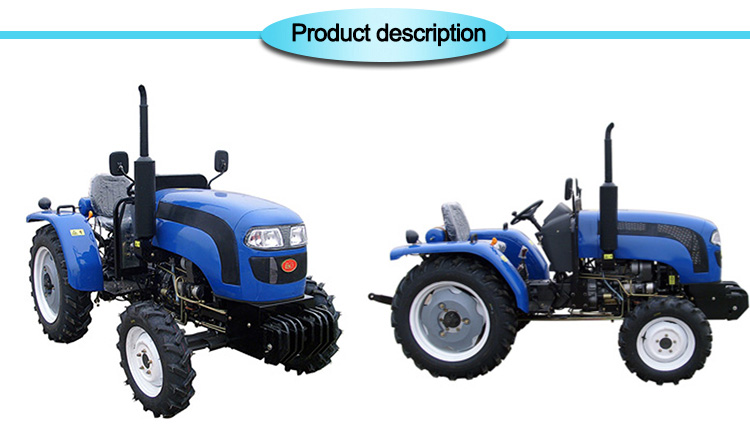

4x4 garden/agriculture high quality/mini tractor /20-150 hp tractor
cheap price
Tractor compact structure, good starting performance, flexible and convenient operation.Engine torque goes up and noise goes down.Can meet all kinds of complex agronomic requirements.
1.Standard 9-gear front gear and 3-gear rear gear, can be equipped with synchronizer shift, smooth shift without stop;
2.Front axle symmetry design,52 steering angles, flexible steering, minimum turning radius is less than 4.3 meters;
3.Lubrication system adopts forced pressure lubrication drive;
4.When the speed of differential coupling sleeve separation is different, the tractor can be rotated freely；
5.After the chain is fixed and stable, it means that the suspension system of the bar frame is reduced. The bar frame has the function of height adjustment and strong lifting ability after suspension.
| Model | LT484 | |||||||
| Type | 4WD | |||||||
| Dimensions(mm) | Length (to front ballast) | 3835 | ||||||
| Width | 1620 | |||||||
| Height (to the exhaust vent) | 2135 | |||||||
| Tread | Front Wheel | 1280 | ||||||
| Rear Wheel | 1300 or 1200~1500 adjustable | |||||||
| Wheelbase | 2030 | |||||||
| Min.Ground Clearance | 325 | |||||||
| Structure weight (kg) | 1734 | |||||||
| Ballast weight (kg) | Front ballast | 140 | ||||||
| Rear ballast | 300 | |||||||
| Rated traction force (kg) | 1140 | |||||||
| Engine | Model | JD495T/JD498 | ||||||
| Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | |||||||
| Rated Power(kw) | 35.2 | |||||||
| Rated speed (r/min) | 2400 | |||||||
| Fuel | Diesel | |||||||
| Tyre | Front Wheel | 8.3-20 | ||||||
| Rear Wheel | 12.4-28/14.9-24 | |||||||
| Clutch | Dual-stage clutch | |||||||
| Steering | Power steering | |||||||
| Transmission Type | 8+4 or 8+8 (shuttle shift) or (8+4)×2 (creeper) | |||||||
| Suspension Type | 3-point linkage | |||||||
| PTO | Type and Speed | Semi-independent, 540/1000rpm | ||||||
| Spline Size | F35 Rectangle Spline with 6 teeth | |||||||
We will package and transport the products according to their different characteristics, including whole packaging, parts packaging, or according to customer needs for packaging.

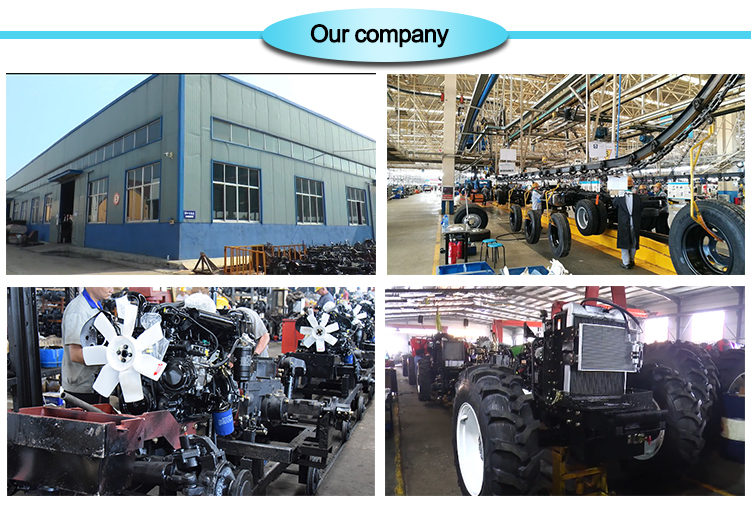

Heze Shanxian Group Work WinCo.,Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural machinery products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
Pre-Sales Service:
* Prompt reply and professional team to provide good product;
* Sample testing and factory inspection support;
* Every batch of products will be tested and sample will be retained for each batch.
After-Sales Service:
*Logistics information monitoring and following;
* Product guarantee;
* Documents service.
1.How long is your delivery time?
Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock, its delivery time is 3-7 days.
2. If the products have any problem after I ordered it, what could I do?
(1) .We offer 14 months warranty for our machines, usually customers will buy some consumable parts;
(2) . If there are some problems that cannot be solved by you, the nearby dealers will solve them in the past; or the engineers will go overseas to serve.
3.This is the first time I use this kind of machine, is it easy operate?
We also provide English manual for operating and maintenance. If there is still have any questions, We can broadcast live via.
