High Efficiency Chinese 140HP 4WD Tractors For Farmers
High Efficiency Chinese 140HP 4WD Tractors For Farmers
  • >= 1  Set US $1,500.000
Supply Ability:
800 Set/Sets per 0
Port:
qingdao port
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description

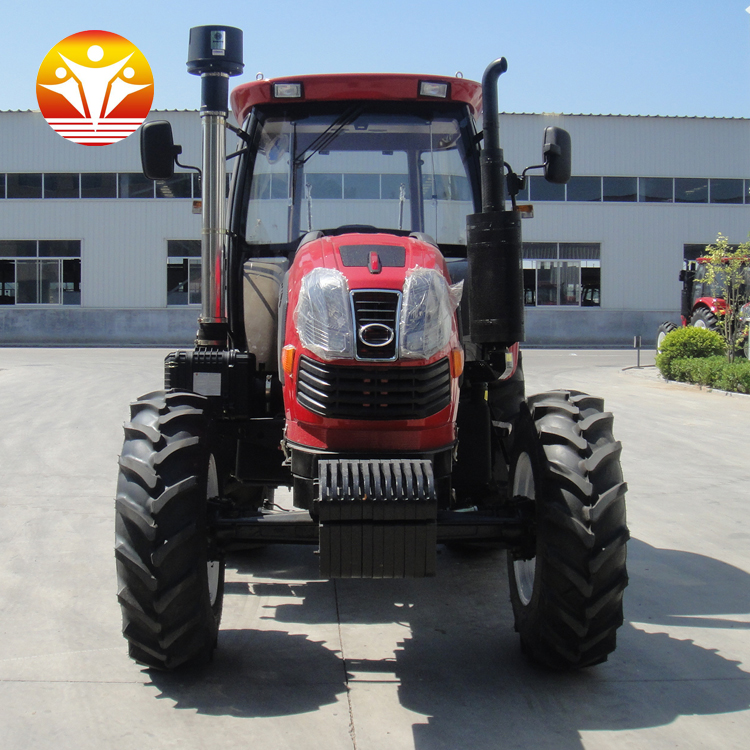

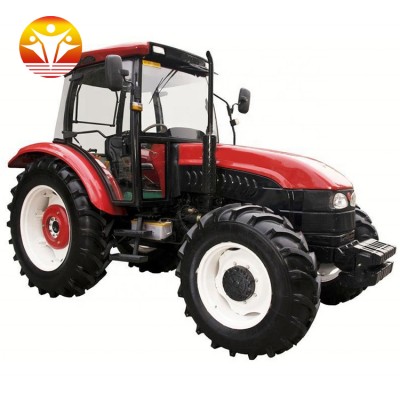

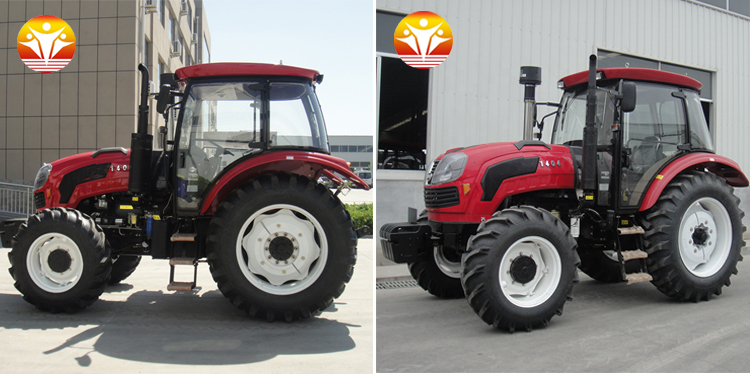

High Efficiency Chinese 140HP 4WD Tractors For Farmers

product introduction.jpgtractor5.jpg

Our 140hp small agricultural tractor best agriculture tractor can equipped with corresponding farm implements, farmland operations, rotary tillage, trenching, soil breaking, sowing, fertilizing, spraying and watering can be carried out.

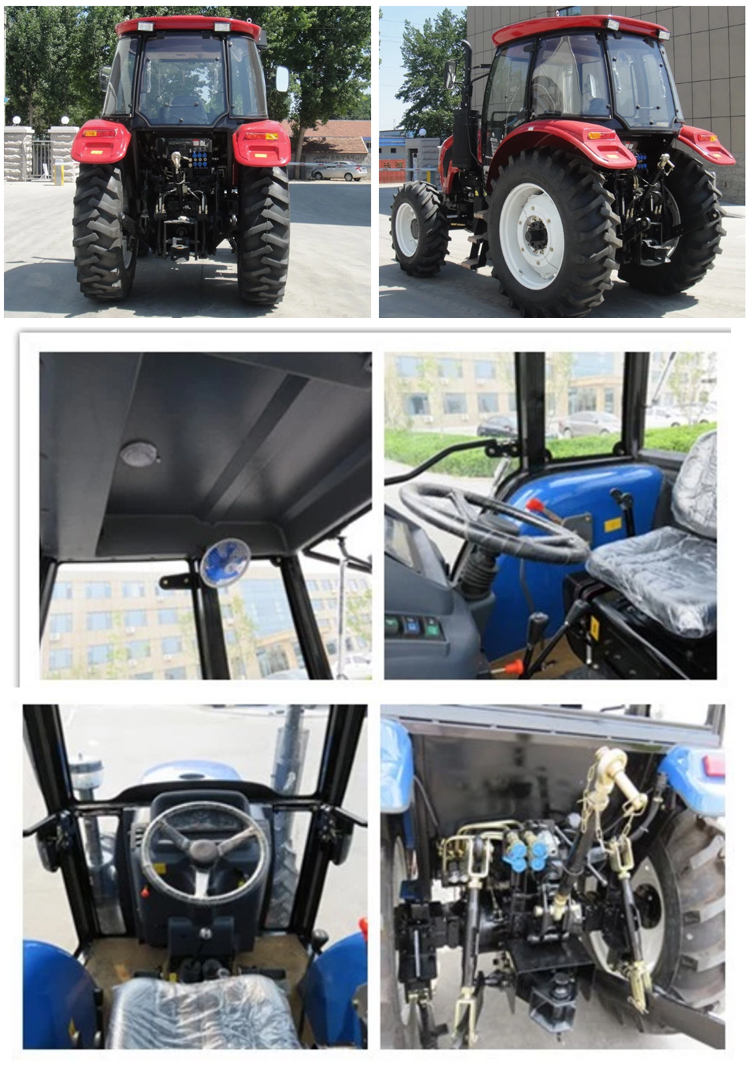

detailed images.jpgDetailed Images.jpg


Model

1404  4WD farm tractor

Type

4×4 Wheeled Type











Dimensions of Tractor mm

Length

5060


Width

2345


Height

2900


Tread

Front Wheel

16121712195220722202



Rear Wheel

1800(usual)-2000


Wheel Base

2582


Min. Ground Base

395the bottom of front axle )

Min. Usage Masskg

5300







Engine

Model

YTO LR6M3Z-23


Type

Vertical, water cooled and 4-stroke


Rated Powerkw

103


Rated Rev.r/min

2300


Fuel

Diesel Oil

Tire

Front Wheel

14.9-26


Front Wheel

18.4-38

Clutch

Dry-friction, single disc and two stage

Steering

Hydraulic type

Transmission Box

4 ×2+1×2 Composed

Suspension Type

Post Positioned Tri-point Suspension Catalogue Ⅲ

PTO


Type and Rev.r/min

Post-position, independent type 760/850


Spline Size

I38 Rectangle Spline with 8 teeth

Product advantage.jpgProduct advantage.jpg

4WD farm tractor, Ride Comfort.
1)  Streamlined replacement metal machine cover, fashionable and streamlined design, elegant appearance.
2) Optional fully sealed closed cab, more reasonable design.
3)  Optional equipped with radio, and optional air conditioning, warm wind, fan system, luxurious comfort.
4) Panoramic glass doors and windows, optional reversing image to make the vision more open and comfortable.
4WD farm tractor, Strong adaptability.
Flat floor, hanging pedal, side control, shuttle gear transmission, a variety of gear selection, reasonable speed distribution.
Optional tread stepless adjustable model, good operation adaptability.
Double Oil cylinder pressure hoist, with height limit, tillage deep adjustment mode using bit adjustment, floating control operation, better adaptability.
4WD farm tractor, Reliability
The hydraulic system and the rear axle use the independent oil supply, the failure rate is low.
Full hydraulic steering system with more reliable handling performance.
Three-point suspension system, high lifting force, strong reliability.
Enhanced chassis, enhanced gearbox, heavy weight, strong vehicle grip, greater than resistance to soil operations, more efficient.

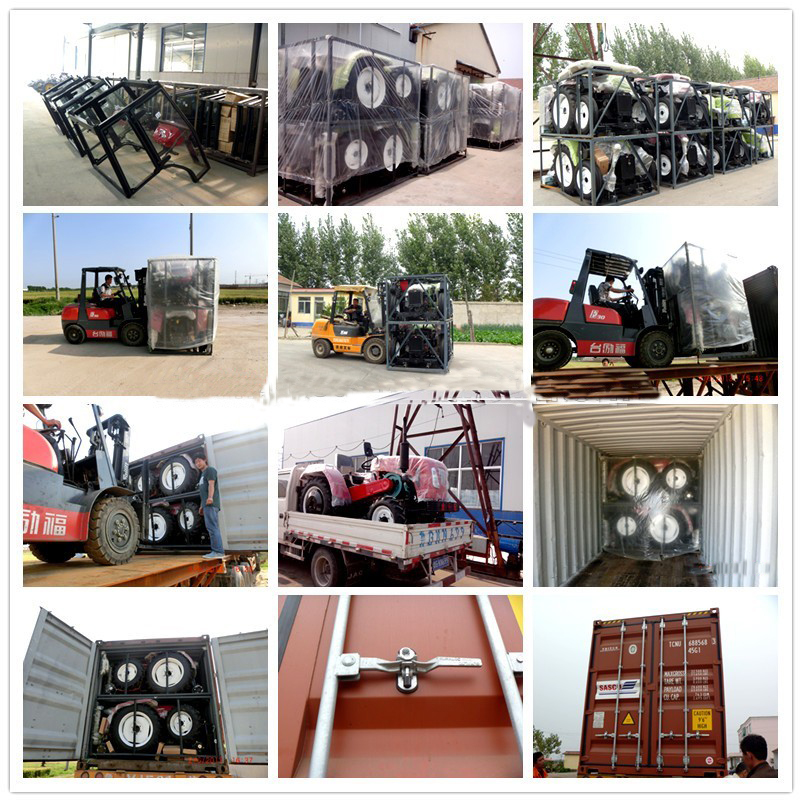

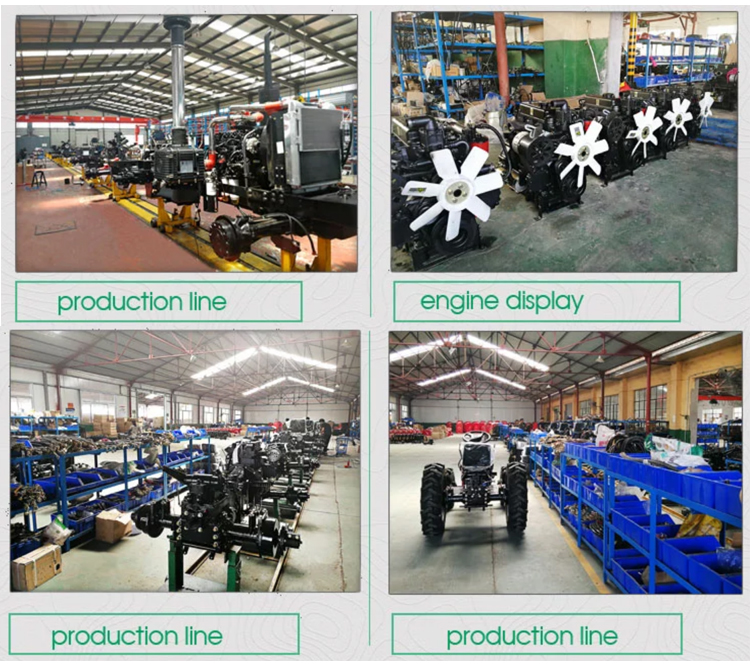

packaging and shipping.jpgPackaging & Shipping.jpgOur factory.jpgour factory.jpgCertificate showing.jpgcertificate.jpgFAQ.jpg

1.Q:What are your advantages compared with others?
A:1.competitive technology-we are as the leading dealers of various China machinery manufactures.
   2.competitive service-Our company has good maintenance team,we can provide best service everytime and everywhere.
   3.fast delivery-It  will take about 15 days for factories to produce  the ordered products.
   4.competitive service- we often have an negotation from numerous comparison and feedbacks from clients,our price is more competitive than others.
2.Q:How can i believe you and your factory?
A:Since it is not the little thing to purchase machine,you can come to China to visit us for an inspect,and we will welcome you enthusiasm.so we can establish good cooperation with each other.
3.Q:How long of the warranty period ?
A:1year
4.Q:How about delivery?
A:delivery:7-10 working days after payment
packing A:container or RORO ship
B:Nude package or according customers requirements
better shipping is chosen for you accordingly.
reply you in 24 hours, if you are urgent, we can reply you soonest.
