agricultural machinery hay and straw baling machine
agricultural machinery hay and straw baling machine
  • >= 1  Set US $1,850.000
Supply Ability:
25 Set/Sets per 0
Port:
qingdao port
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description

agricultural machinery hay and straw baling machine


Product introduction

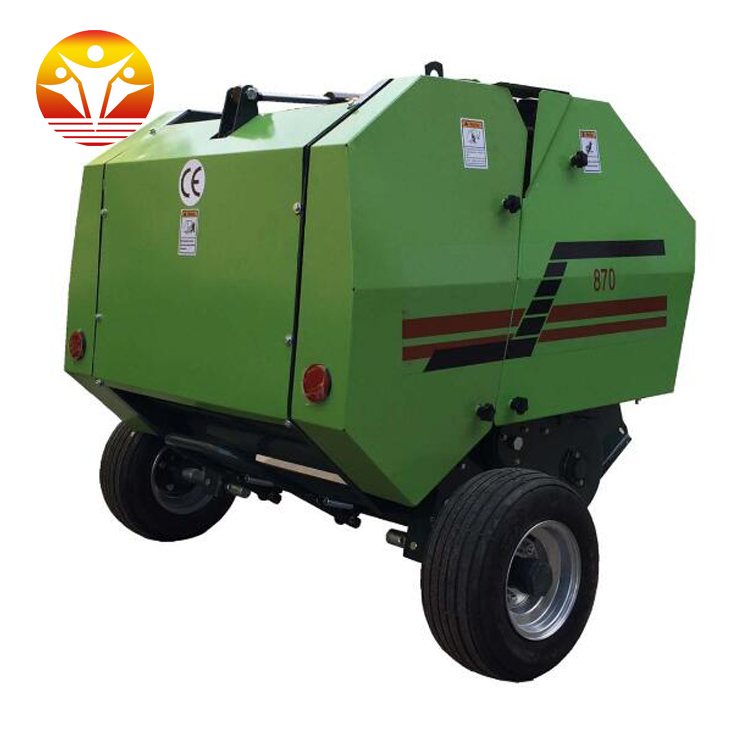

Agricultural baling machine1.jpg

1) . This straw bundling rope coiling machine with advanced design and structure, processing high quality round bales. CE certificate was passed in 2011.
2). It is consist of main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft.
3). The whole working program is successive, accurate and reliable, the bundled round grass bales compact outside and loose inside and has good air permeability.-
4). The machine is suitable for baling of hay, grass, wheat, silage, alfalfa and other materials such as straw etc.
5). It can resist wind, rain and snow under open storage and is convenient for long-term storage and long distance transportation. this is a great significance to the prompt harvest of pasture in agricultural and pastoral areas, the effective use of crop stalks as well as the disaster countering and livestock protection.


Specifications



Model

850

870/870F

1070/1070F

1090/1090F

Pickup Width

700mm

800mm

950mm

950mm

Dimension

(L*W*H)

115*130*120cm

131*167*156cm

131*167*156cm

157*167*170cm

Baler Size

(dia*width)

50*70cm

60*70cm

62*95cm

80*95cm

Efficiency

2-5km/h

2-5km/h

3-8km/h

3-8km/h

Productivity

80bales/h

80bales/h

80bales/h

80bales/h

Density

≥115kg/m3

≥115kg/m3

≥115kg/m3

≥115kg/m3

PTO Speed

540r/s

540r/s

540r/s

540r/s

Match Power

25-50hp

25-50hp

25-50hp

25-50hp

Weight

400kg

450kg

550kg

600kg

Force Feeding

/

870F have

1070F have

1090F have



Detailed Images

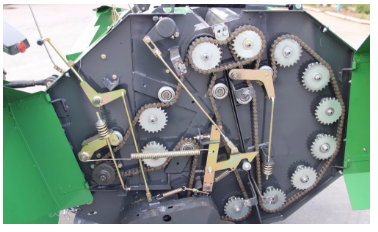

Detailed Images1.png



Transmission device of the mini round hay baler

1.Compact and seamless connection, very low failure rate,easy to damage parts for easy purchase.

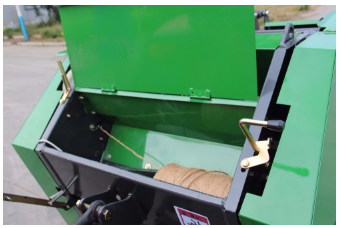

Detailed Images2.png



Twine frame of the mini round hay baler



1.The twine is strong and reliable, and the work is fluent.

2.Free of charge to a bundle of twine.

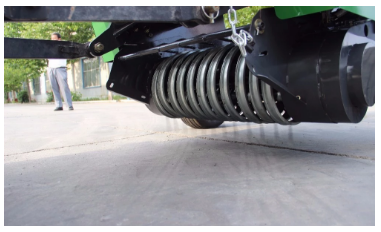

Detailed Images3.png



Pick-up cylinder of the mini round hay baler



1. Pick-up cylinder has better efficiency and no omission after finishing

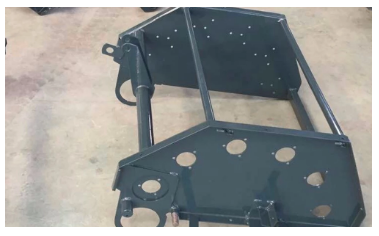

Detailed Images4.png







Solid frame of the hay baler

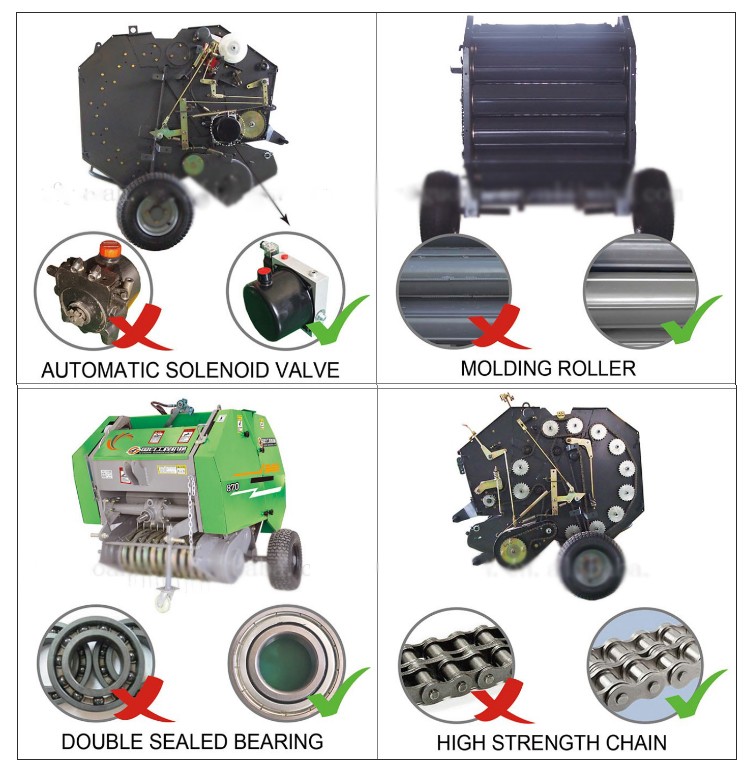

Our advantages


Our advantages.jpg

1.  Common machine is using a hydraulic valve, release the bale need to put the bundle,very inconvenient, long time use leak happens, hydraulic valve also will rust,etc .Our latest automatic solenoid valve can automatically put the bale, and the main material is aluminium alloy, not easy to rust, it can use for many years.
2. Ordinary machine roller is made of welding and the roller life is short, welding parts easy to fall off when it working ,the equipment and the operator has hidden a huge safety trouble.Our equipment is made of a forming technology, is not easy to wear and tear, no hidden dangers.
3. Common equipment use no seal or single sealed bearing, poor sealing effect, easy to dust, life is short, and easily damaged.Our equipment all parts are made of double sealed bearing, no grey, bearing using time is longer, equipment operation effect is better.
4. Ordinary equipment chain is rough , the chain is thinner, not wear-resisting, easy to fracture.Our chain adopt high quality alloy, it is not easy to fracture, long life, good transmission effect.

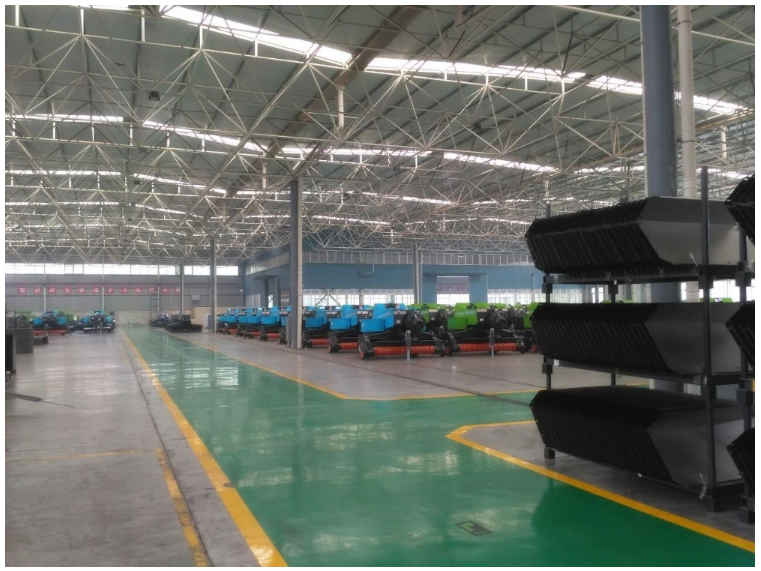

Our factory

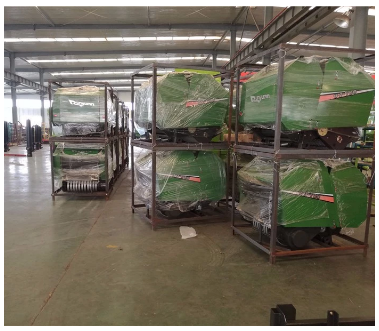

Our factory1.pngOur factory2.png

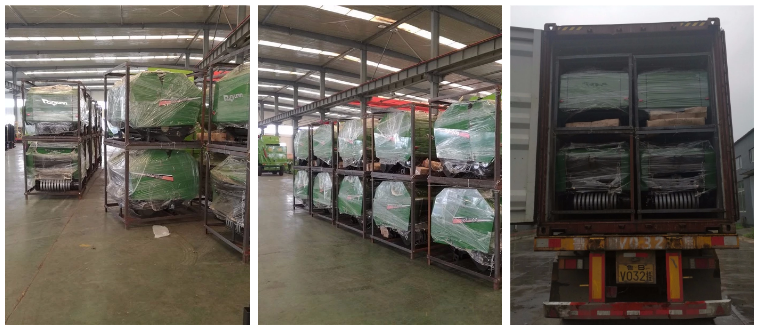

Packaging & Shipping


Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers


Model

RB0870

Weight

460 kg

Size

1250 x1130 x1200 mm

Container loading

20ft container loads 16 units
40ft container loads 32 units

Details

Metal packing


Our most professional packaging


Trade shows


Trade shows.jpg


Certifications





FAQ


Q1. What is your terms of packing?

A: Iron frame or according to your requirments.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
